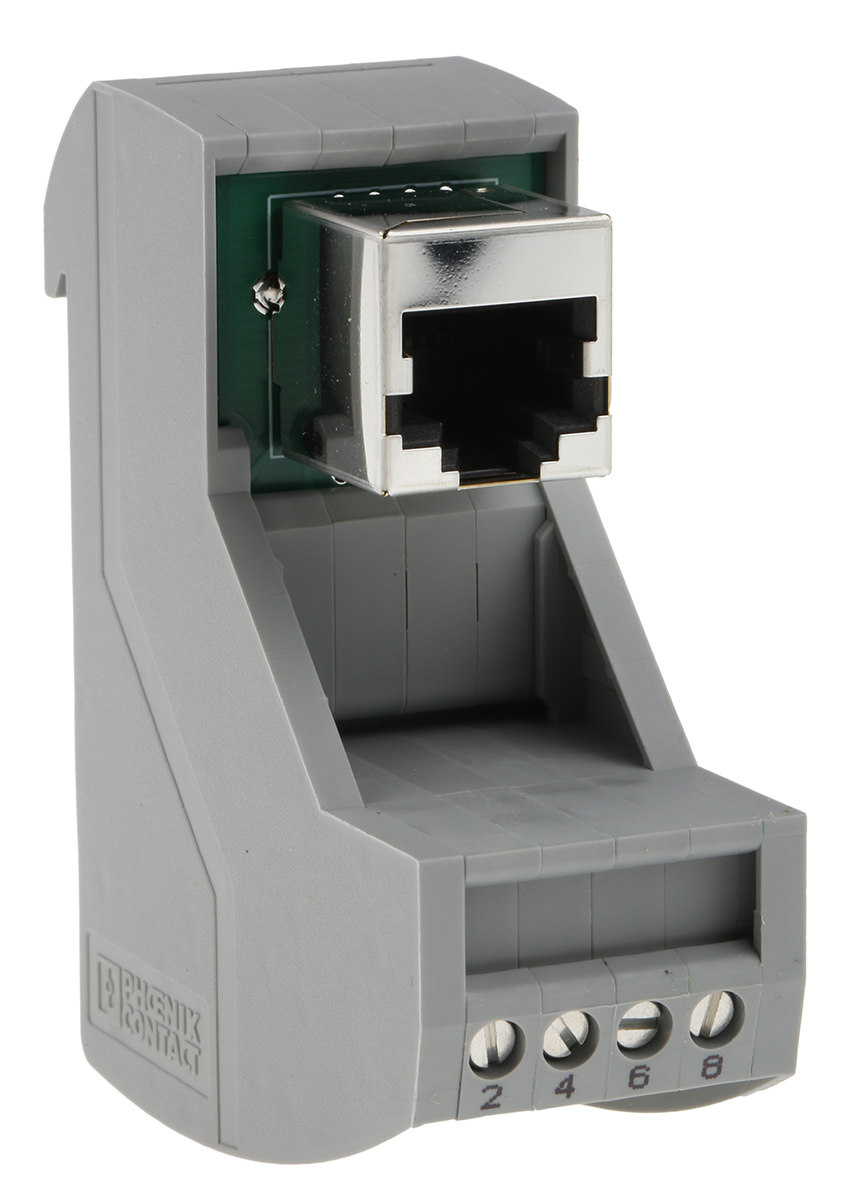

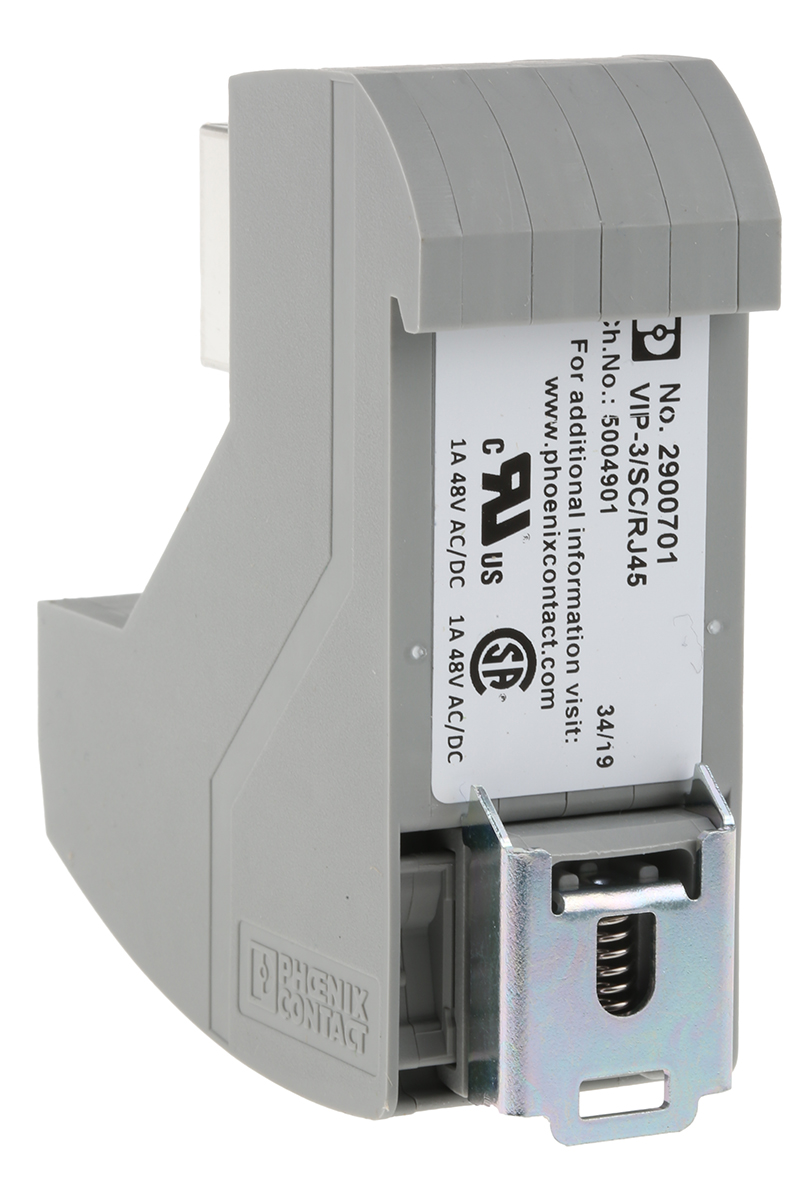

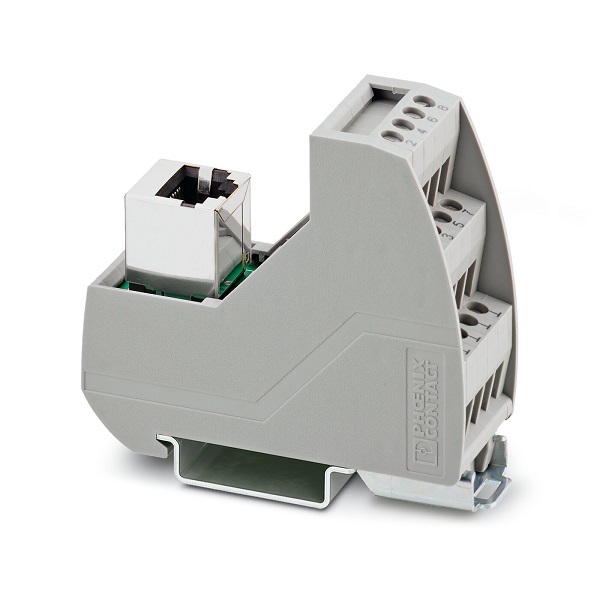

Phoenix Contact Interface Module, 48V AC/DC Voltage Rating, Screw Terminals - VIP-3/SC/RJ45 - 2900701 Upgrade your control system's communication capabilities with this interface module from Phoenix Contact. With its standardised RJ45 socket, the unit slots right into your existing setup. Its eight contacts handle up to 4A of current simultaneously, so it's suitable for Power over Ethernet applications.
This module snaps straight onto a standard DIN rail, letting you speed through installation without the need for special tools. Thanks to its compact dimensions of 26.9 (W) x 69 (H) x 62mm (D), it easily fits into a standard-size enclosure. Screw terminals secure your conductors against disruptive movement.
There's no need to worry about handling this block, as its plastic insulation cuts the risk of electric shocks. A module like this one is typically installed in patch panels, network devices and wall plates to provide a connection point for Ethernet cables. Features & Benefits • Works with AC and DC power supplies for wide compatibility
• Handles temperatures between -20°C and +50°C to provide reliable performance in tough conditions
• Meets DIN EN 50178 standards for safe use in power distribution systems
• Wide conductor range of 24 to 12AWG for versatility
