Modular monobloc splitters
Standard splitter
Mounting onto Omega-type DIN rail or onto plate using 2 screws.
Supplied with transparent rear insulating plate and front protective cover.
Accept Cab 3 markers on each bar.
Option to add an IP 2X terminal to increase the number of earth or neutral connections (except ref: 048 77).
Resistance to incandescent wire to EN 60695-2-11.
Double pole with terminals: fitted with 2 bars and four-poles with terminals: fitted with 4 bars.
Mounting onto Omega-type DIN rail or onto plate using 2 screws.
Supplied with transparent rear insulating plate and front protective cover.
Accept Cab 3 markers on each bar.
Option to add an IP 2X terminal to increase the number of earth or neutral connections (except ref: 048 77).
Resistance to incandescent wire to EN 60695-2-11.
Double pole with terminals: fitted with 2 bars and four-poles with terminals: fitted with 4 bars.

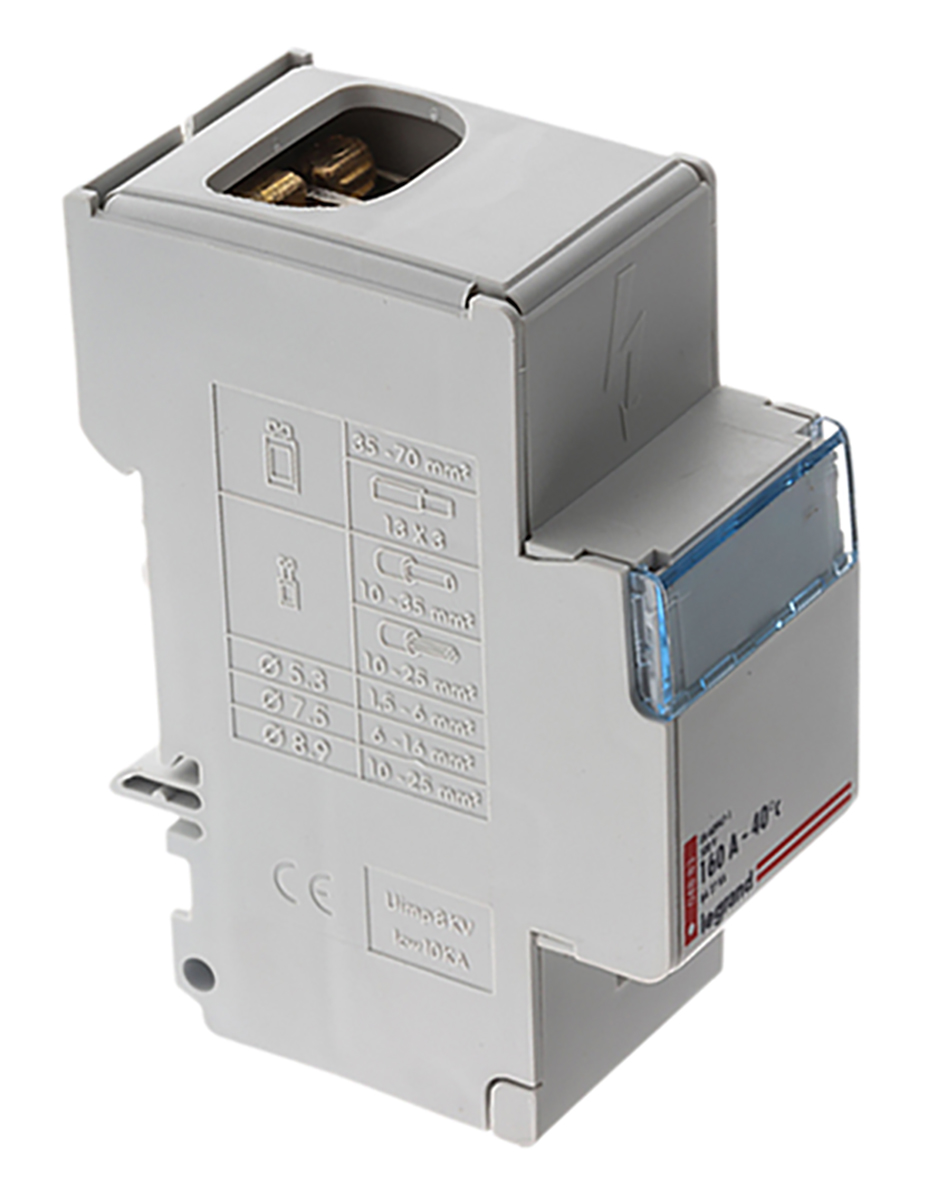

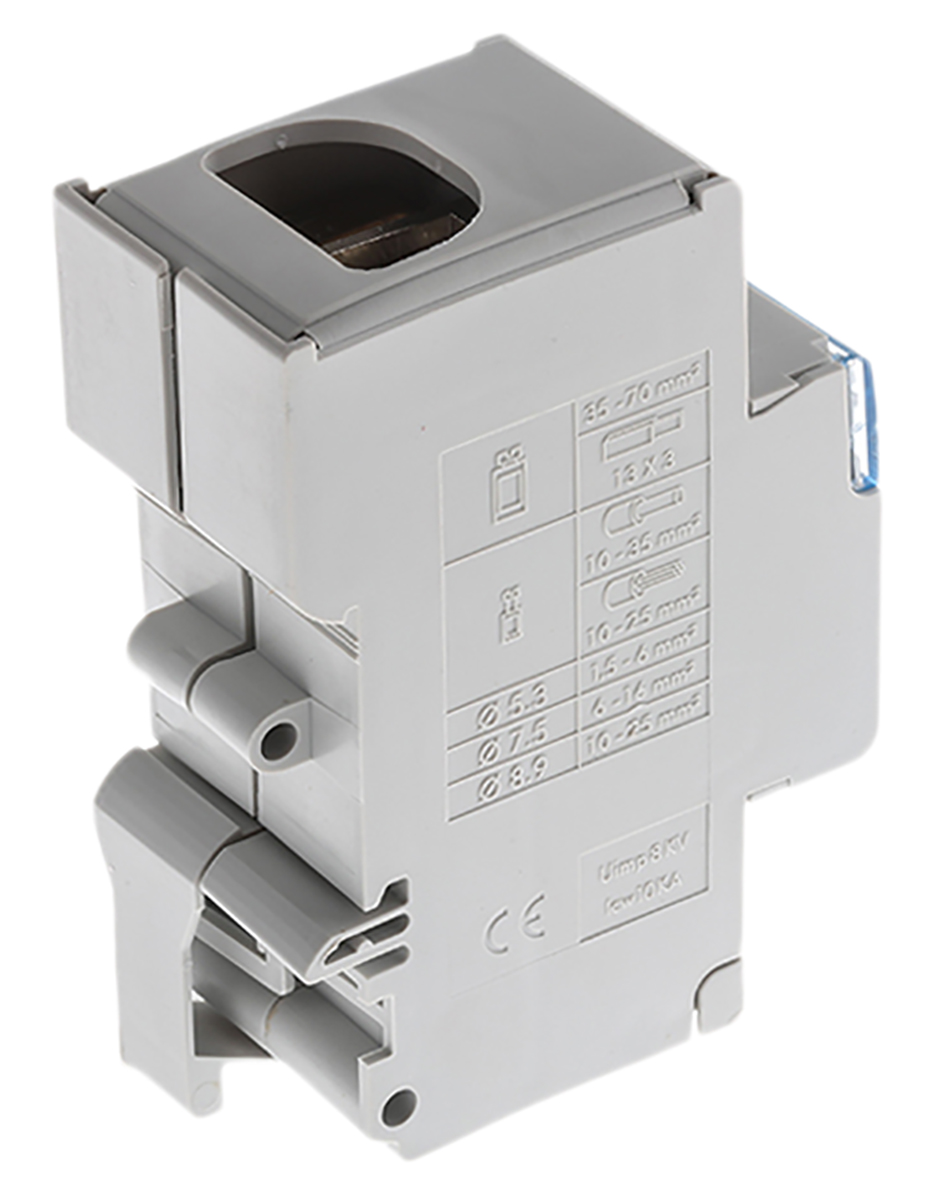

13-Contact Interface Module, DIN Rail Mount, 160A
Manufacturer:
Legrand
Manufacturer Part No:
0 048 83
Enrgtech Part No:
ET13889518
Warranty:
Manufacturer
£ 66.47
Checking for live stock
Number of Contacts:
13
Body Orientation:
Straight
Mounting Type:
DIN Rail Mount
Voltage Rating:
400 V
Current Rating:
160A
Cable CSA:
10 → 35 mm, 2.5 → 10 mm, 35 → 70 mm, 6 → 25 mm
Dimensions:
101.5 x 144 x 60mm
Depth:
60mm
Length:
101.5mm
Width:
144mm
