BL Terminal Series Compatible
TS32 ’G’ rail and TS35 ’Top Hat’ rail mounted terminals for use with the BL connector system enabling quick changing of functional units. The cable mounted BL units may be fitted to either the top or side of the terminal block.
All materials comply with RoHS requirements and have been tested to current environment guidelines. Features: • Rated voltage: 250Vac
• Rated current: 16A
• Nominal conductor csa: 1.5mm2
• Continuous operating temperature: -50 °C to 100 °C
• Material: PA 66
• To use with terminals For TS32 ’G’ rail use WDU1.5/BLZ/32 232-572
For TS35 ’Top Hat’ rail use WDU1.5/BLZ/35 232-588
All materials comply with RoHS requirements and have been tested to current environment guidelines. Features: • Rated voltage: 250Vac
• Rated current: 16A
• Nominal conductor csa: 1.5mm2
• Continuous operating temperature: -50 °C to 100 °C
• Material: PA 66
• To use with terminals For TS32 ’G’ rail use WDU1.5/BLZ/32 232-572
For TS35 ’Top Hat’ rail use WDU1.5/BLZ/35 232-588

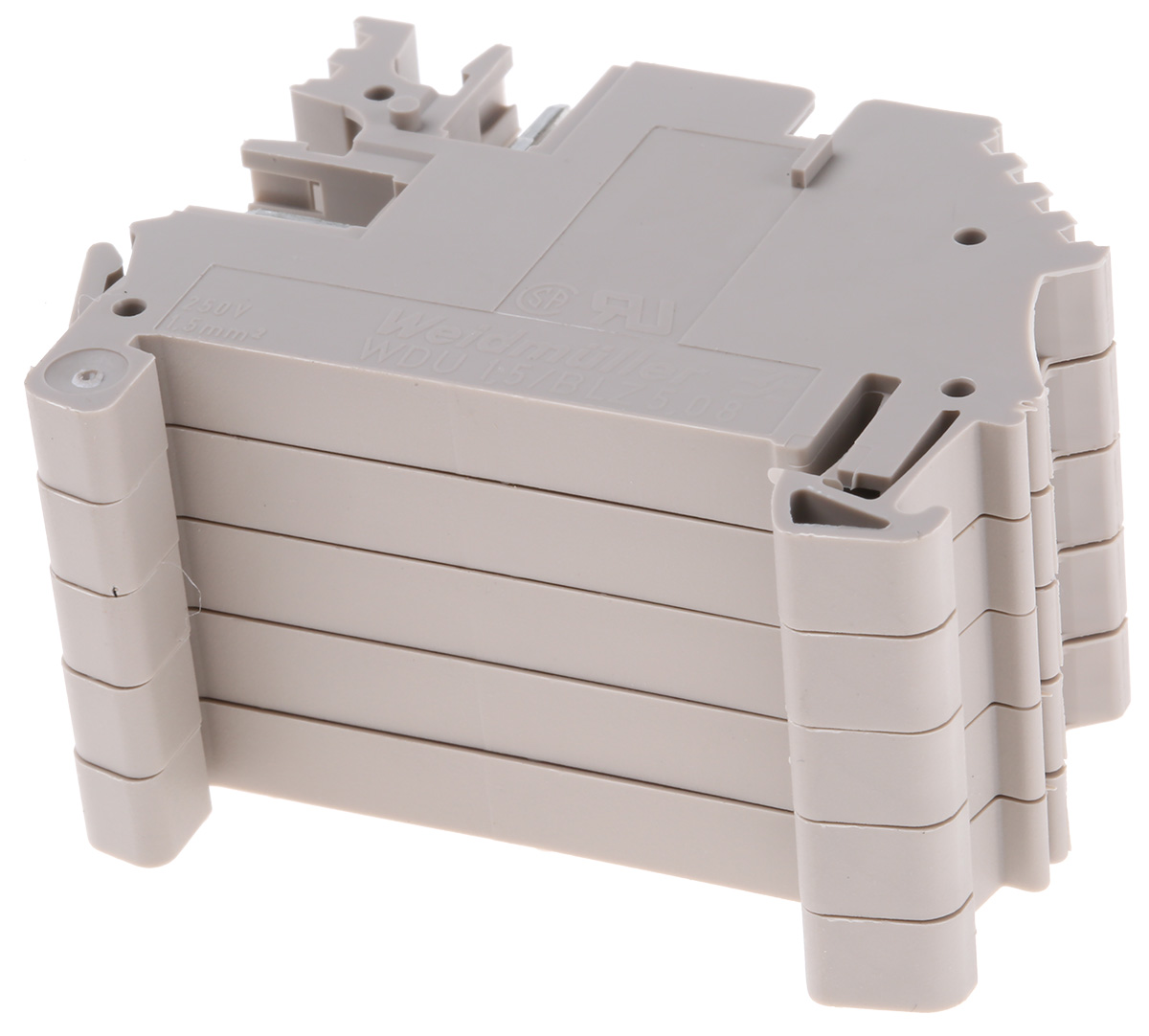

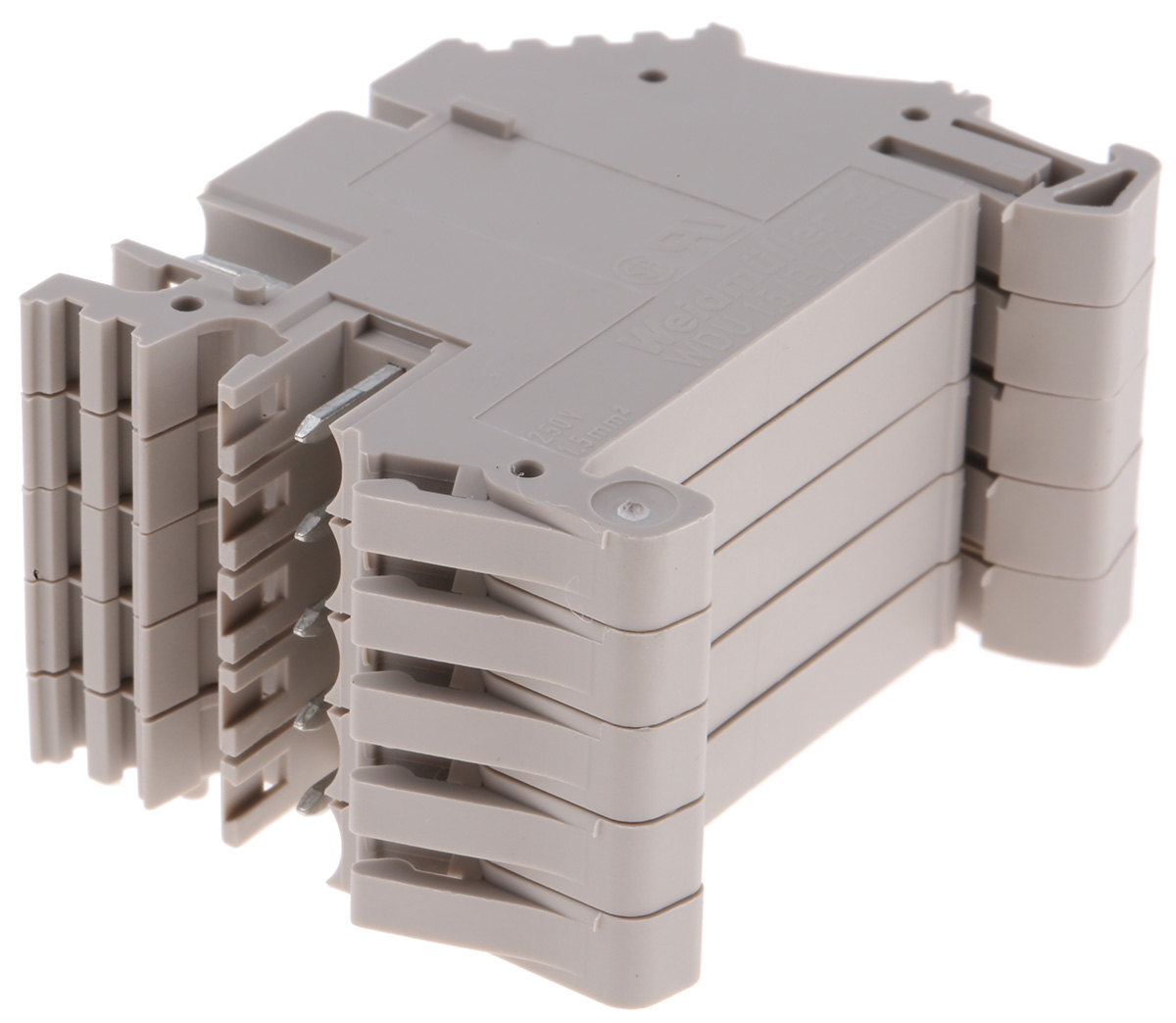

Weidmüller 1577340000 Weidmuller 1-Contact Interface Module, Clamping Yoke Connector, DIN Rail Mount, 16A
Manufacturer:
Weidmüller
Manufacturer Part No:
1577340000
Enrgtech Part No:
ET17507880
Warranty:
Manufacturer
£ 1.28
Checking for live stock
Wire Size:
22 → 14 AWG
Number of Contacts:
1
Connector Type:
Clamping Yoke
Mounting Type:
DIN Rail Mount
Voltage Rating:
250 V
Current Rating:
16A
Cable CSA:
0.5 → 4mm²
Dimensions:
49 x 5.08 x 37.5mm
Depth:
37.5mm
Length:
49mm
Maximum Operating Temperature:
+120°C
Width:
5.08mm
