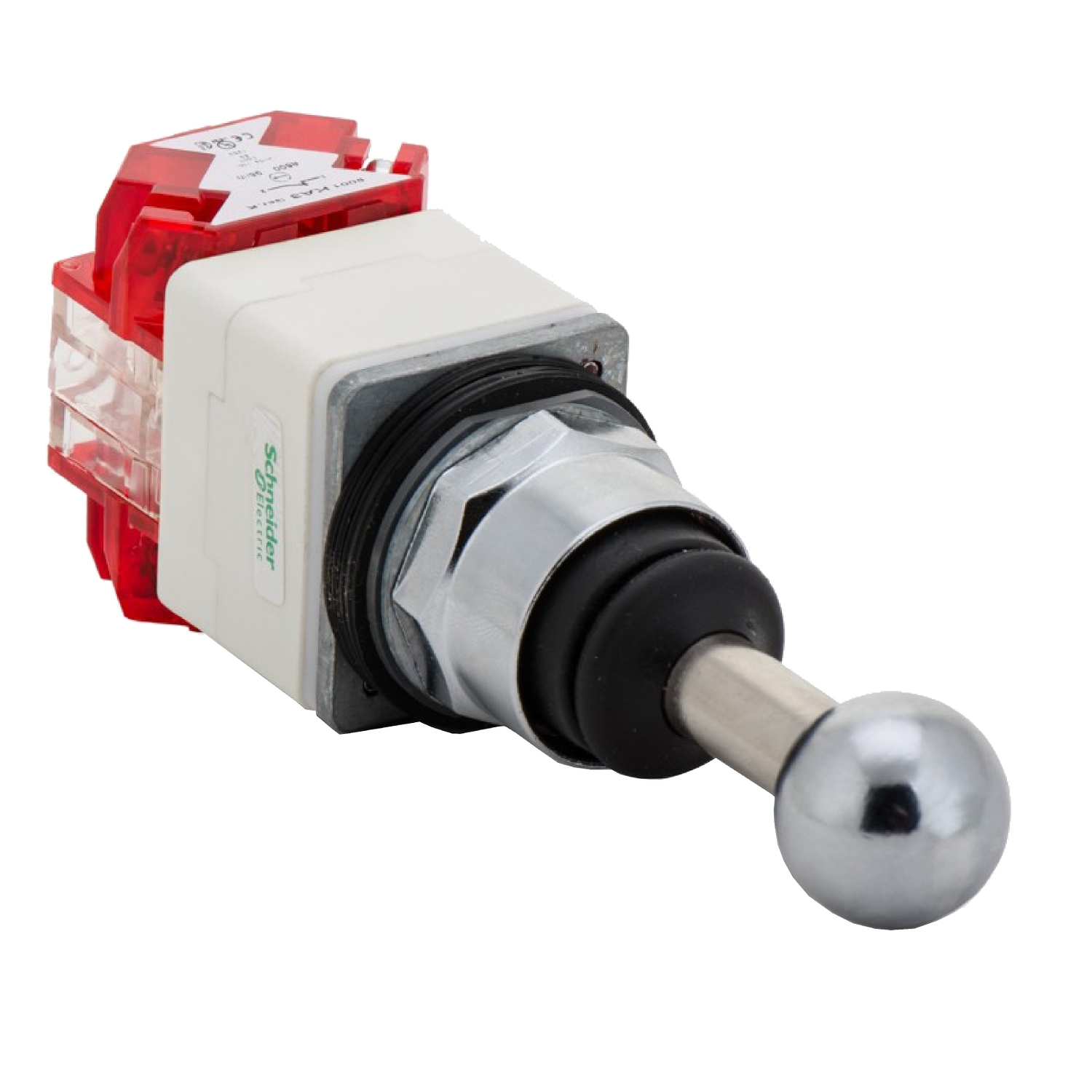

Schneider Electric | Harmony 9001K Series | Joystick Switches Integral to industrial and commercial control industries alike, the Joystick Switch helps you position machinery where you need it. Schneider Electric brings you the robust Harmony 9001K series of Joystick Switch, able to continually control devices reliably even in adverse conditions. Features and benefits: • Light-weight, compact in size, the 9001K Joystick can operate in areas with limited space.

• Accepts cross slotted screw head type.

• Silver alloy (Ag/Ni) material used on the contacts.

• Spring return / Stay Put joystick operation.

• 18-month manufacturer warranty.

Protection ratings & Safety features:

• 10 A cartridge fuse (type gG conforming to EN/IEC 60947-5-1) for greater short-circuit protection.

• IP 66 rated (total protection against dust with a high degree of water protection but not suitable for total submersion).

• NEMA 1, NEMA 12, NEMA 13 & more (further protection against dirt, dust, and water, see datasheet for full spec).

• Vibration resistance up to 7 gn & 50 gn of shock resistance.

• Overvoltage category: 2 (conforms to IEC 61140).

• Ambient operating temperature of -25°C to 70°C, suitable in a wide variety of environments. Applications: • Can be easily integrated into various control panels.

• Maritime sectors.

• Medical sectors.

• Heavy-duty machinery / Industrial controls.
