IP65 Watertight Junction Box These grey watertight junction boxes are made from a self-extinguishing thermoplastic material that is halogen free and RoHS compliant. The housing has smooth sides and is fitted with a screw-on patented lid and a seal to provide IP65 protection. Features and Benefits •High resistance to heat, chemical and atmospheric agents •Patented lid produced in a single pressing phase and fitted with seal •Components can be fitted to the back of the box using 3.5 x 9.5 mm self-tapping screws •Smooth sided box with screw-on lid •Grey RAL 7035 colour housing •Self-extinguishing thermoplastic material •Installation temperature from -25°C to +60°C •IP65 protection •IK08 shock resistant •RoHS compliant •Halogen free Product Application Information These adaptable boxes are designed for low voltage products and systems and can be surface mounted on walls and ceilings. Standards This adaptable box is made from a self-extinguishing thermoplastic material and complies with UL 94 V2. It is also resistant to abnormal heat and fire up to 650°C GWT in compliance with IEC 60695-2-11. The enclosure is manufactured in compliance with IEC 60670-1 and IEC 60670-22. Features and Benefits Fitted with a low profile grey lid Fitted with a low profile grey lid

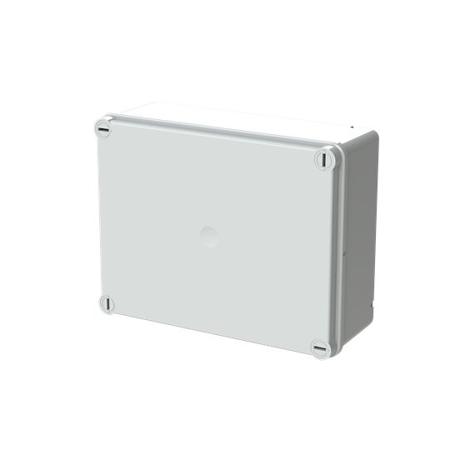

ABB 1SL0856A00 Thermoplastic IP65 Junction Box, 220 x 170 x 80mm, Grey

Manufacturer:
Manufacturer Part No:
1SL0856A00
Enrgtech Part No:
ET13940642
Warranty:
Manufacturer
£ 19.55
Checking for live stock
Dimensions L x W x H:
220 x 170 x 80mm
IP Rating:
IP55
Colour:
Grey
Material:
Thermoplastic
Height:
80mm
Width:
170mm
Length:
220mm
pdf icon
Selection Guide - Electrification UK(Technical Reference)
pdf icon
Datasheet - 1SL0856A00(Technical Reference)
pdf icon
IP 44- IP 55 and IP 65 junction boxes in thermoplastic material Data Sheet(Technical Reference)
pdf icon
Catalogue - Enclosures(Technical Reference)
