CE-TEK CEP Junction Box for Explosive Atmospheres The CE-TEK “CEP” series is a range of pre-assembled, black polyester (GRP) ATEX junction boxes. All meet current Ex e, Ex ia and Ex ib requirements to EN 60079:2007 Each box is certified to meet T6 (T85°C) and T5 (T100°C) temperature ratings They are Ex certified in accordance with SIRA08ATEX3213 Include an Earth continuity plate Fitted with an Internal / External M6 earth stud Each supplied with an appropriate ATEX certification label 80x75x55mm Enclosure 2 x M20 cable entries 5 x 2.5mm 2 terminals, numbered and fitted to DIN rail 1 x 4mm 2 earth terminals 2 certified stopping plugs 122x120x90mm Enclosure 4 x M20 cable entries 10 x 2.5mm 2 terminals, numbered and fitted to DIN rail 2 x 4mm 2 earth terminals 4 certified stopping plugs 160x160x90mm Enclosure 4 x M20 cable entries 15 x 2.5mm 2 terminals, numbered and fitted to DIN rail 2 x 4mm 2 earth terminals 4 certified stopping plugs 260x160x90mm Enclosure 10 x M20 cable entries 26 x 2.5mm 2 terminals, numbered and fitted to DIN rail 2 x 4mm 2 earth terminals 10 certified stopping plugs

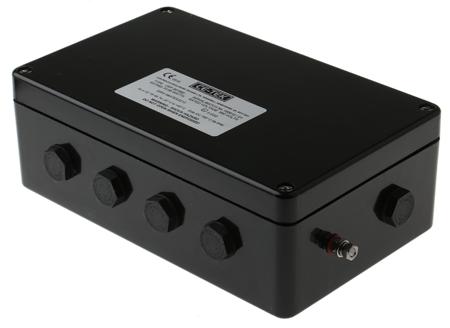

CE-TEK CEP261690PA Polyester IP66 Junction Box M20, 10 Entry, 26 Terminal, 260 x 160 x 90mm, Black

Manufacturer:
Manufacturer Part No:
CEP261690PA
Enrgtech Part No:
ET14042669
Warranty:
Manufacturer
£ 175.00
Checking for live stock
Dimensions L x W x H:
260 x 160 x 90mm
Number of Ways:
10
IP Rating:
IP66
Series:
CEP
Colour:
Black
Material:
Polyester
Cable Entry:
M20
Height:
90mm
Hazardous Area Certification:
ATEX
Width:
160mm
Length:
260mm
Number of Terminals:
26
pdf icon
Datasheet(Technical Reference)
pdf icon
Certificate(Technical Reference)
