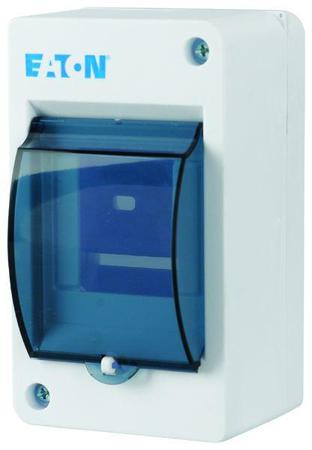

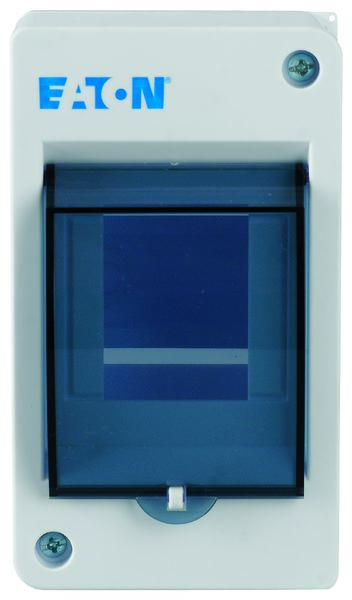

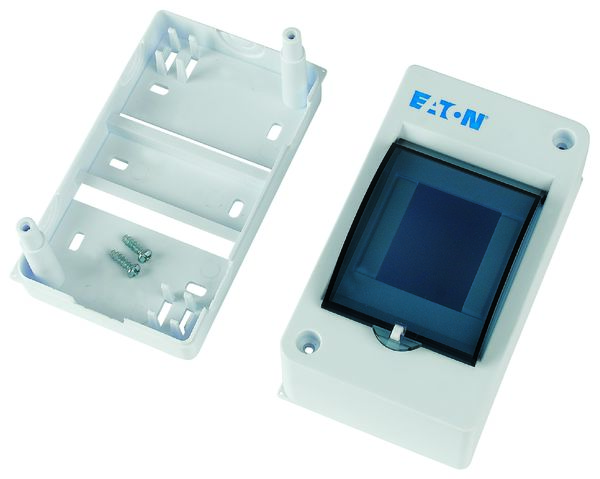

Eaton xComfort Series Junction Box, 83 x 82 x 140mm, IP30 - 177072 MINI-3-T
This junction box is a mini compact distribution board designed for indoor applications. It measures 83mm in length, 82mm in width, and 140mm in height, making it a practical choice for various electrical installations. Constructed from durable plastic, it features a clean, white finish, suitable for discreet placement in diverse environments. The device offers a degree of protection rated at IP30, ensuring reliable performance in indoor settings.
Features & Benefits
• Compliant with IEC/EN 62208 for industry standards • Surface-mounted design allows for versatile installation options • Basic device functionality simplifies electrical projects • Compact size aids in space-saving installations • Designed for use with mini LV systems providing flexibility
Applications
• Ideal for final distribution in low-voltage systems • Suitable for indoor electrical panel installations • Used for mounting onto plaster surfaces or DIN rails
What is the allowable temperature range for safe operation?
The temperature range for safe operation is between -5°C to 40°C, ensuring reliability in various indoor environments.
How does the impact resistance contribute to durability?
With an IK05 impact resistance rating, the junction box is designed to withstand impact and physical stress, making it suitable for demanding conditions.
What type of mounting methods are compatible with this junction box?
It can be surface mounted on plaster or installed on a DIN rail, offering flexibility for different installation needs.
What are the electrical specifications regarding voltage and frequency?
The junction box supports a voltage rating of up to 400V AC and has a frequency rating of 50Hz, catering to standard electrical systems.
Is there any terminal for wiring connections within the junction box?
The junction box is designed without terminals, making it a basic device best suited for straightforward installations without complex connections.
