16mm Sealed Key Switch IP66/IP67 - WRL Series
Miniature 2 position key switches
Rear projection less than 30 mm from panel
Suitable for continued exterior use
Common key or random key profile with 2 keys per lock
90° lock movement
Solder terminals
Contact rating 5 A @ 115 Vac
Rear projection less than 30 mm from panel
Suitable for continued exterior use
Common key or random key profile with 2 keys per lock
90° lock movement
Solder terminals
Contact rating 5 A @ 115 Vac

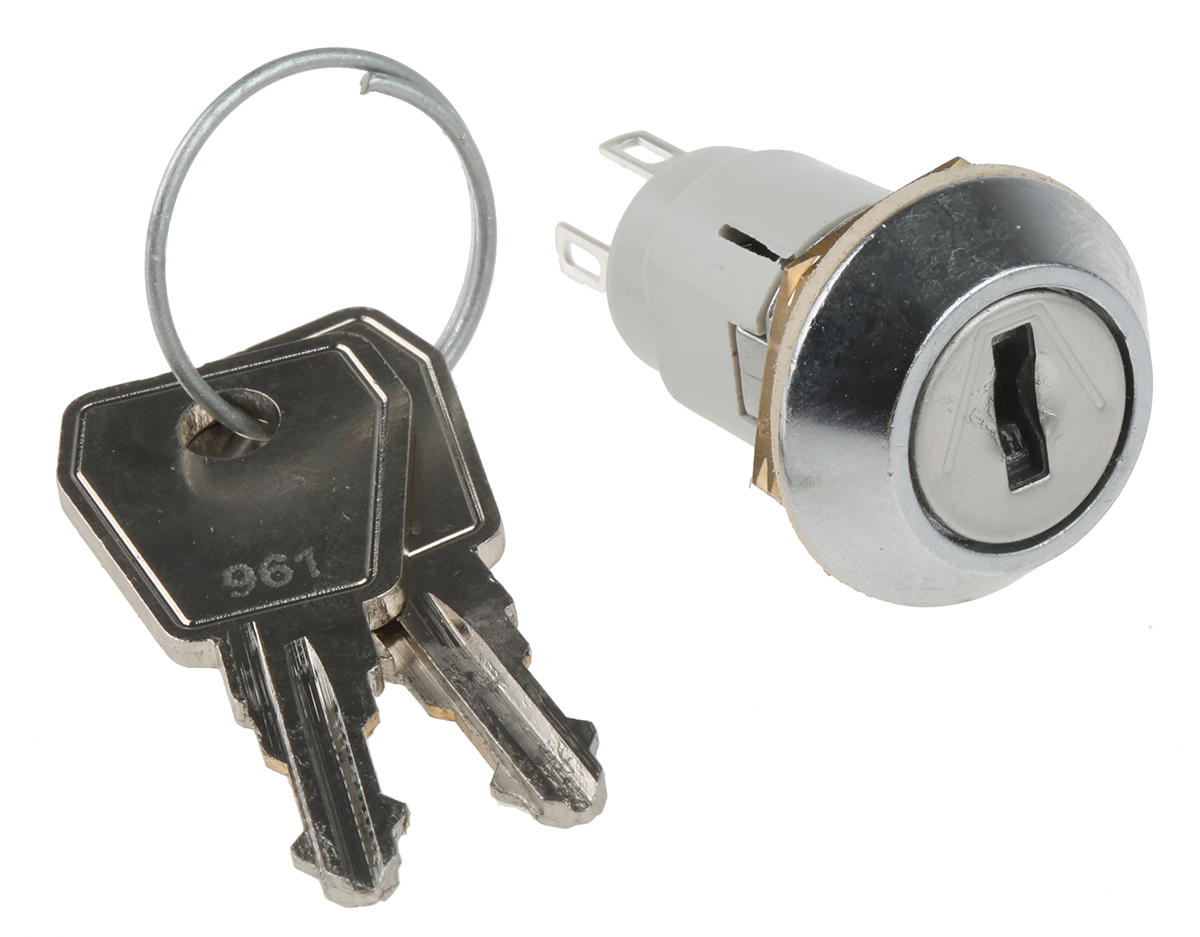

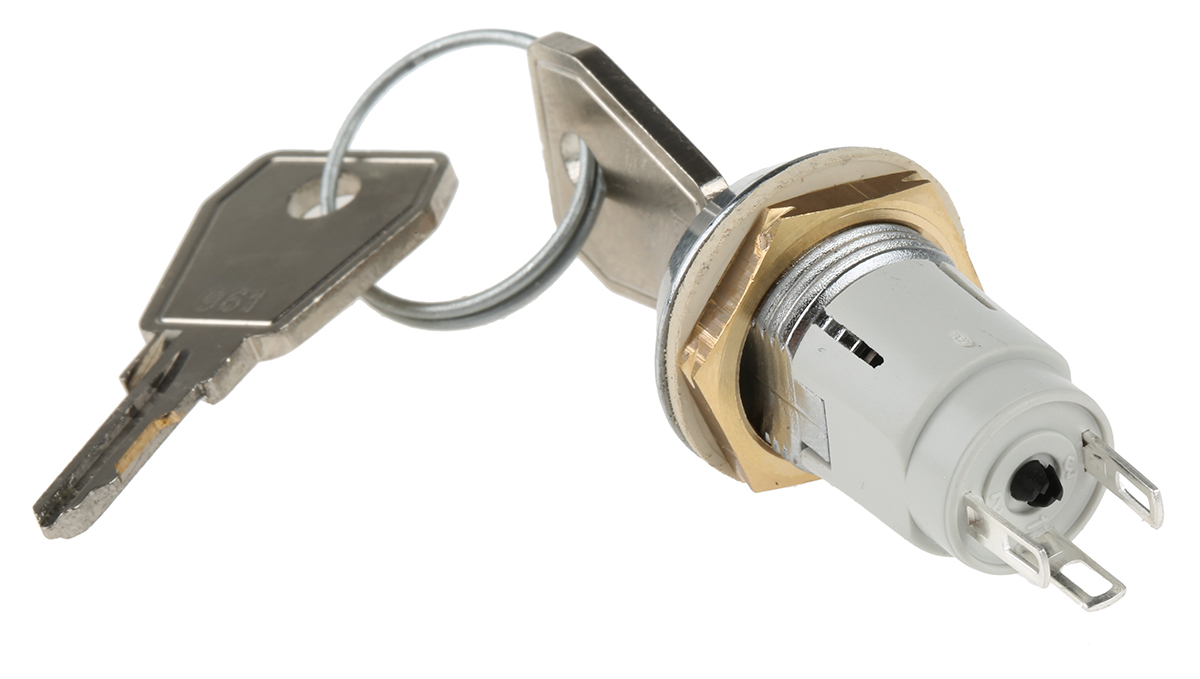

IP66, IP67 Key Switch, SPDT, 5 A@ 115 V ac 2-Way Random-Key
Manufacturer:
Lorlin
Manufacturer Part No:
WRL-5-E-D-2
Enrgtech Part No:
ET14100363
Warranty:
Manufacturer
£ 18.94
Checking for live stock
Number of Positions:
2
Contact Configuration:
SPDT
Contact Current Rating:
5 A@ 115 V ac
IP Rating:
IP66, IP67
Key Type:
Random
Terminal Type:
Solder
Case Material:
Zinc Alloy
Bezel Shape:
Round
Key Index Angle:
90°
Contact Material:
Silver Plated Brass
Mechanical Life:
10000
Operating Temperature Range:
-20 → +65°C
