Lorlin Key Switch
The Lorlin key switch has a single pole double throw(SPDT)-NO/NC contact configuration. It is an innovative, miniature, key-operated lock switch. It has a zinc alloy die-cast housing with stainless steel capped bezel. It has a 90⁰ movement lock switch.
The switch has a contact current rating of 5A at 115VAC. Features and Benefits Up to 200 key combinations keys to differ
Common keys available keys to pass
Keys are double entry (they can be inserted into the lock either way up)
Occupies small panel area
Easily assembled through front of equipment panel
Rear projection less than 30mm from panel
Number of positions are 2
Common key type
Solder terminal
Case material is zinc alloy
Bezel shape is round
Key index angle is 90°
Contact material is silver-plated brass
Operating temperature ranges -20°C and 65°C Applications Marine
Control panels Certifications ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
The switch has a contact current rating of 5A at 115VAC. Features and Benefits Up to 200 key combinations keys to differ
Common keys available keys to pass
Keys are double entry (they can be inserted into the lock either way up)
Occupies small panel area
Easily assembled through front of equipment panel
Rear projection less than 30mm from panel
Number of positions are 2
Common key type
Solder terminal
Case material is zinc alloy
Bezel shape is round
Key index angle is 90°
Contact material is silver-plated brass
Operating temperature ranges -20°C and 65°C Applications Marine
Control panels Certifications ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

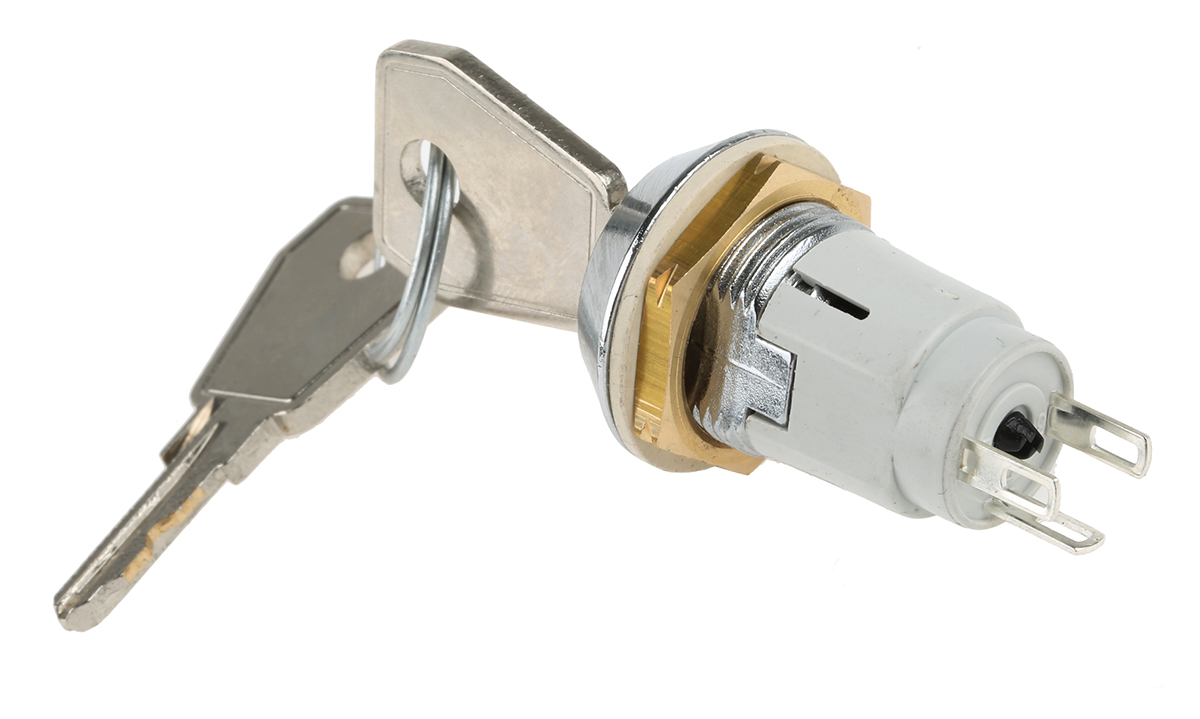

IP66, IP67 Key Switch, SPDT, 5 A @ 115 V ac 2-Way Common-Key
Manufacturer:
Lorlin
Manufacturer Part No:
WRL-5-E-S-2
Enrgtech Part No:
ET14154219
Warranty:
Manufacturer
£ 18.94
Checking for live stock
Number of Positions:
2
Contact Configuration:
SPDT
Key Trapping:
No
Contact Current Rating:
5 A @ 115 V ac
IP Rating:
IP66, IP67
Key Type:
Common
Terminal Type:
Solder
Case Material:
Zinc Alloy
Bezel Shape:
Round
Key Index Angle:
90°
Contact Material:
Silver Plated Brass
Minimum Operating Temperature:
-20°C
