19mm High Security Key Switch - DSL Series
Key switches with dimpled 6 pin lock suitable for mains switching
Two part construction with front of panel insertion, the switch module snaps - on from the rear
Common key or random key profile with 2 keys per lock
Trapping 1 position key removal or non trapping 2 position key removal
90° lock movement
Solder terminals
Contact rating 4 / 80 A @ 250 Vdc
Two part construction with front of panel insertion, the switch module snaps - on from the rear
Common key or random key profile with 2 keys per lock
Trapping 1 position key removal or non trapping 2 position key removal
90° lock movement
Solder terminals
Contact rating 4 / 80 A @ 250 Vdc

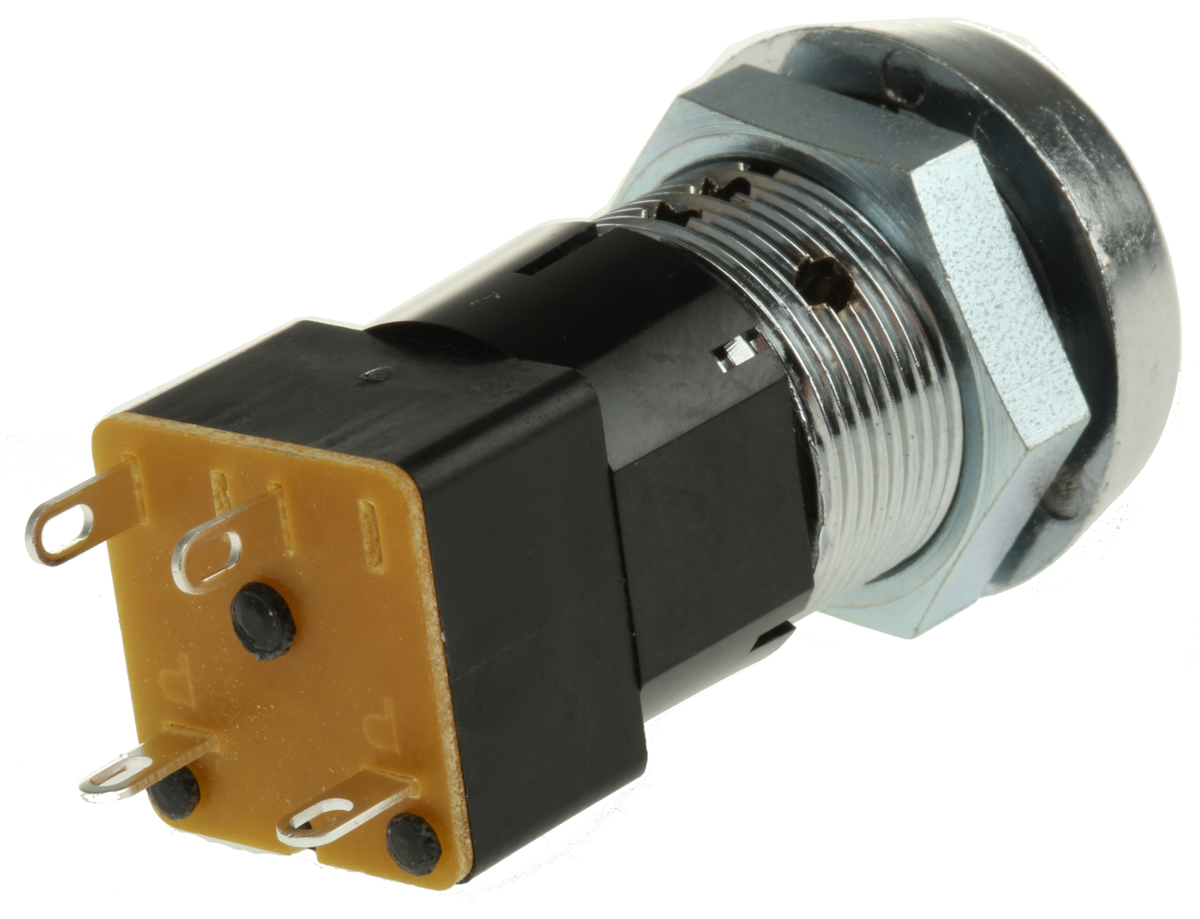

High Security Key Switch, DPST, 50 mA @ 250 V ac 2-Way Flat-Key
Manufacturer:
Lorlin
Manufacturer Part No:
DSL-6-C-S
Enrgtech Part No:
ET16753095
Warranty:
Manufacturer
£ 67.02
Checking for live stock
Number of Positions:
2
Switch Operation:
Off-On
Contact Configuration:
DPST
Contact Current Rating:
50 mA @ 250 V ac
Key Type:
Flat
Terminal Type:
Solder
Bezel Shape:
Round
Key Index Angle:
90°
Contact Material:
Silver Cadmium Oxide
Operating Temperature Range:
-25 → +85°C
Minimum Operating Temperature:
-25°C
Standards Met:
RoHS
