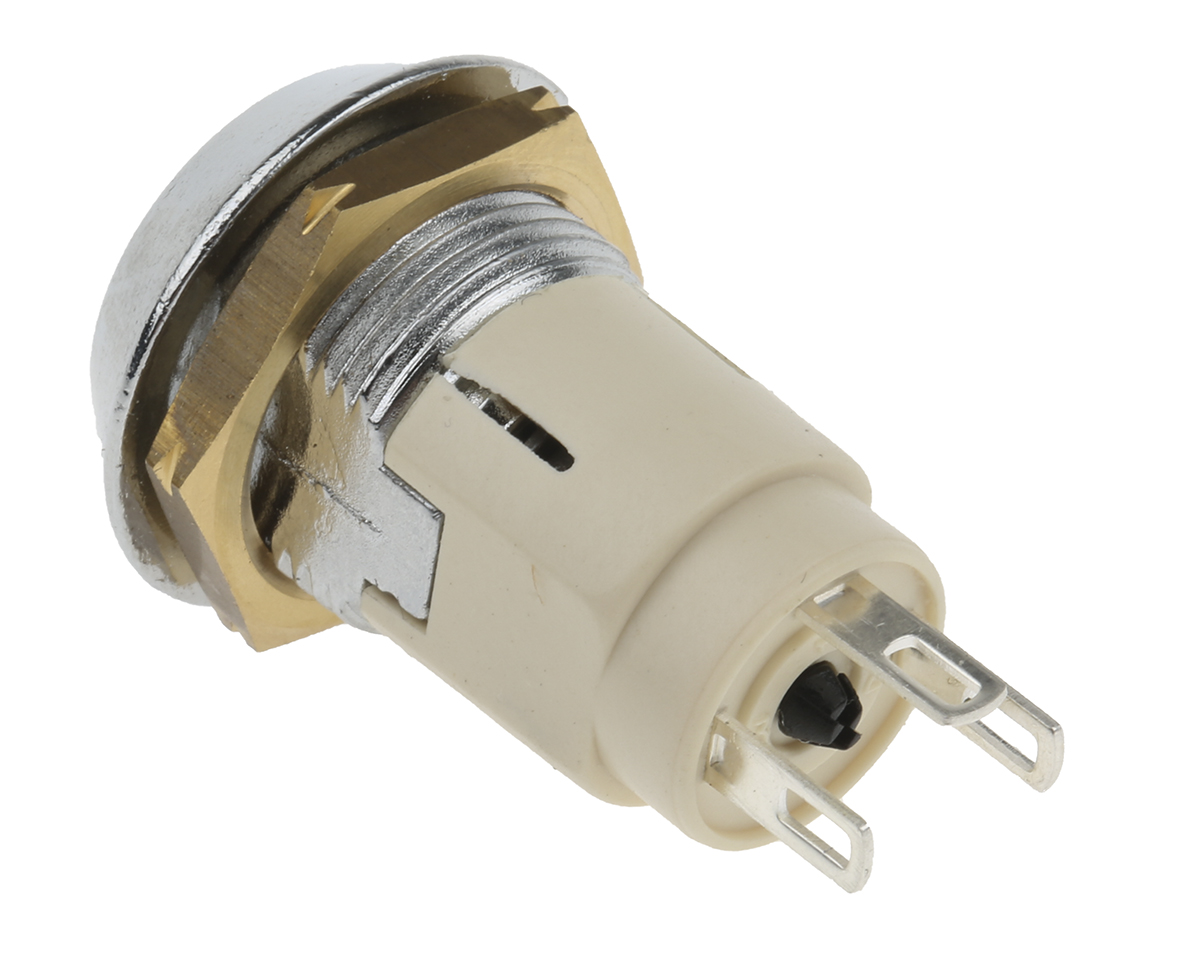

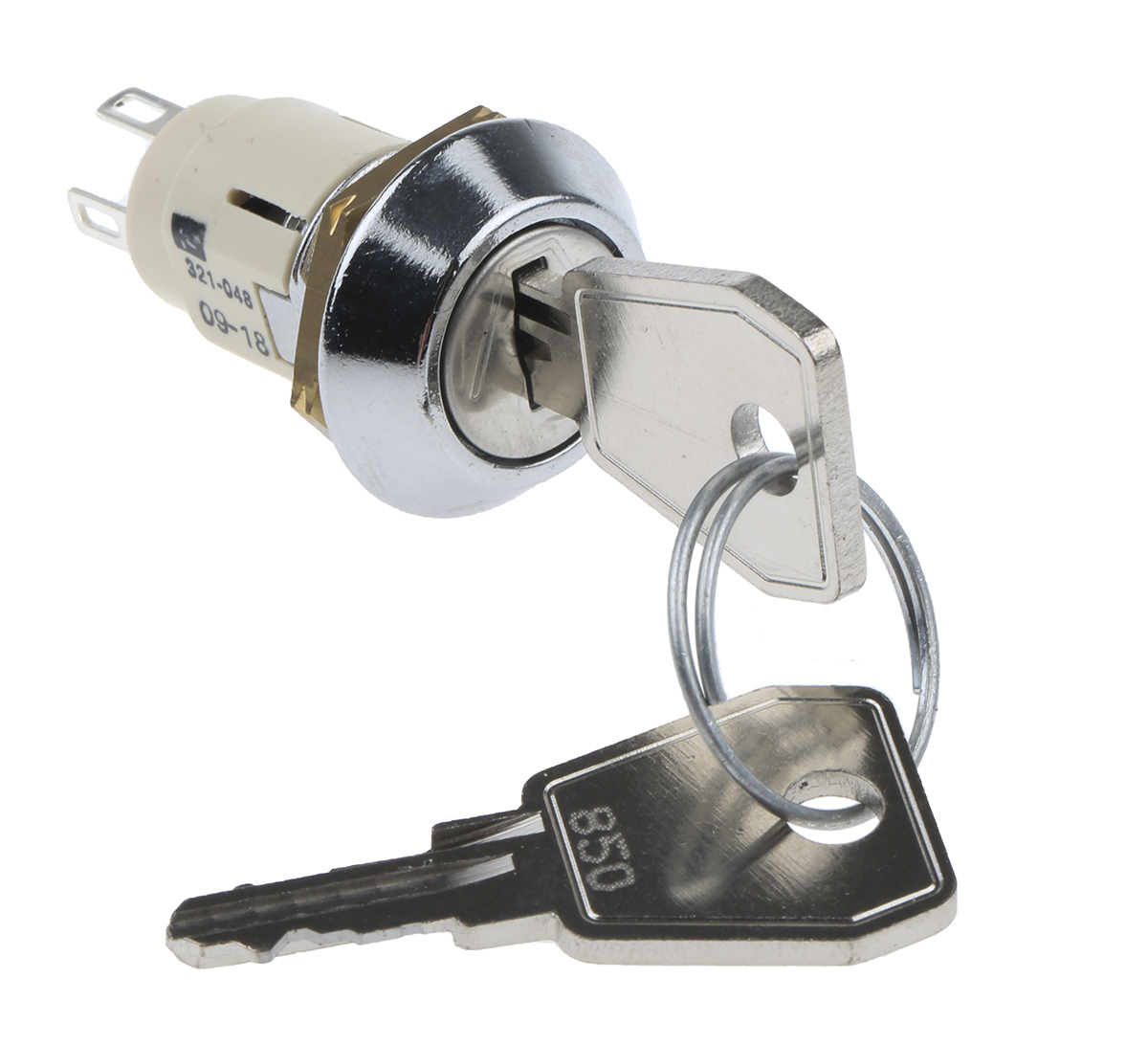

Lorlin Key Switch The Lorlin key switch is a miniature, key-operated lock switch. It is suitable for many low voltage applications. The spare keys are available for common profiles, but not for random profiles, for security reasons. It has a single-pole and can easily be assembled through the front of the equipment panel. Features and Benefits Up to 200 key combinations
Common keys available
Keys are double entry (they can be inserted into the lock either way up)
Occupies small panel area
Rear projection less than 30mm from the panel
Contact configuration is SP-CO
Contact current rating is 1 A @ 24V ac dc / 115V ac
Solder terminal
Case material is glass fibre reinforced PA
Bezel shape is tapered
Depth behind panel is 22.4mm
Key index angle is 60°
Contact material is silver plated brass
Operating temperature ranging between -20°C and 65°C
Mechanical life is 10,000 operations Applications Control panels
Alarms
Lighting controls Certifications ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
