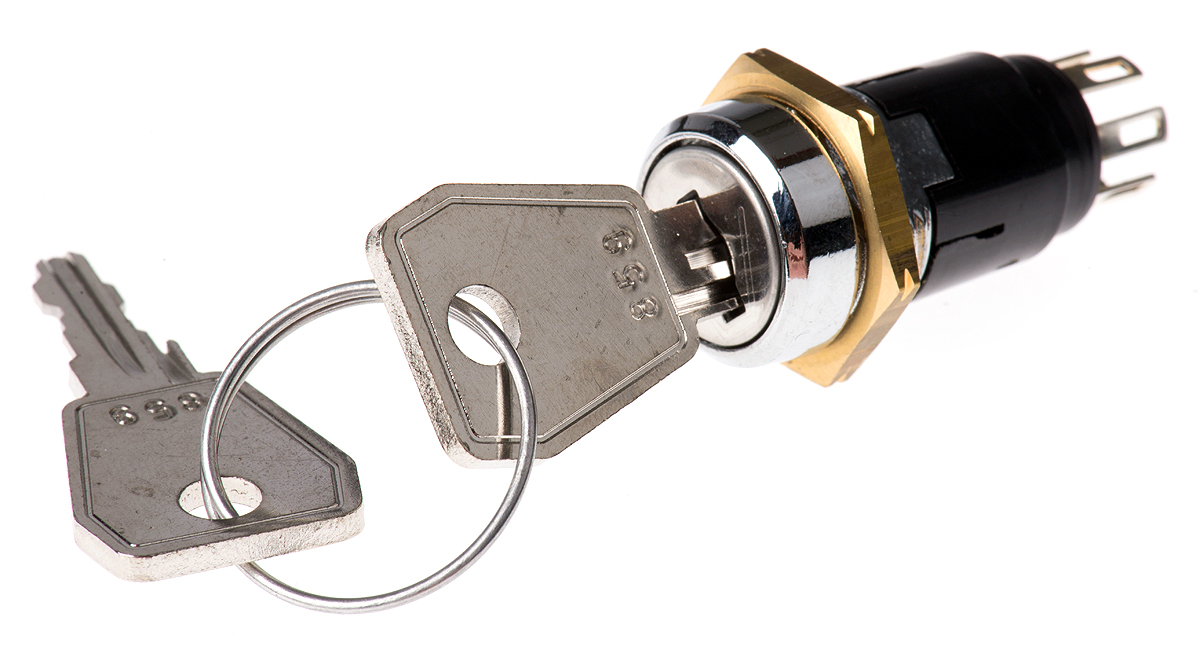

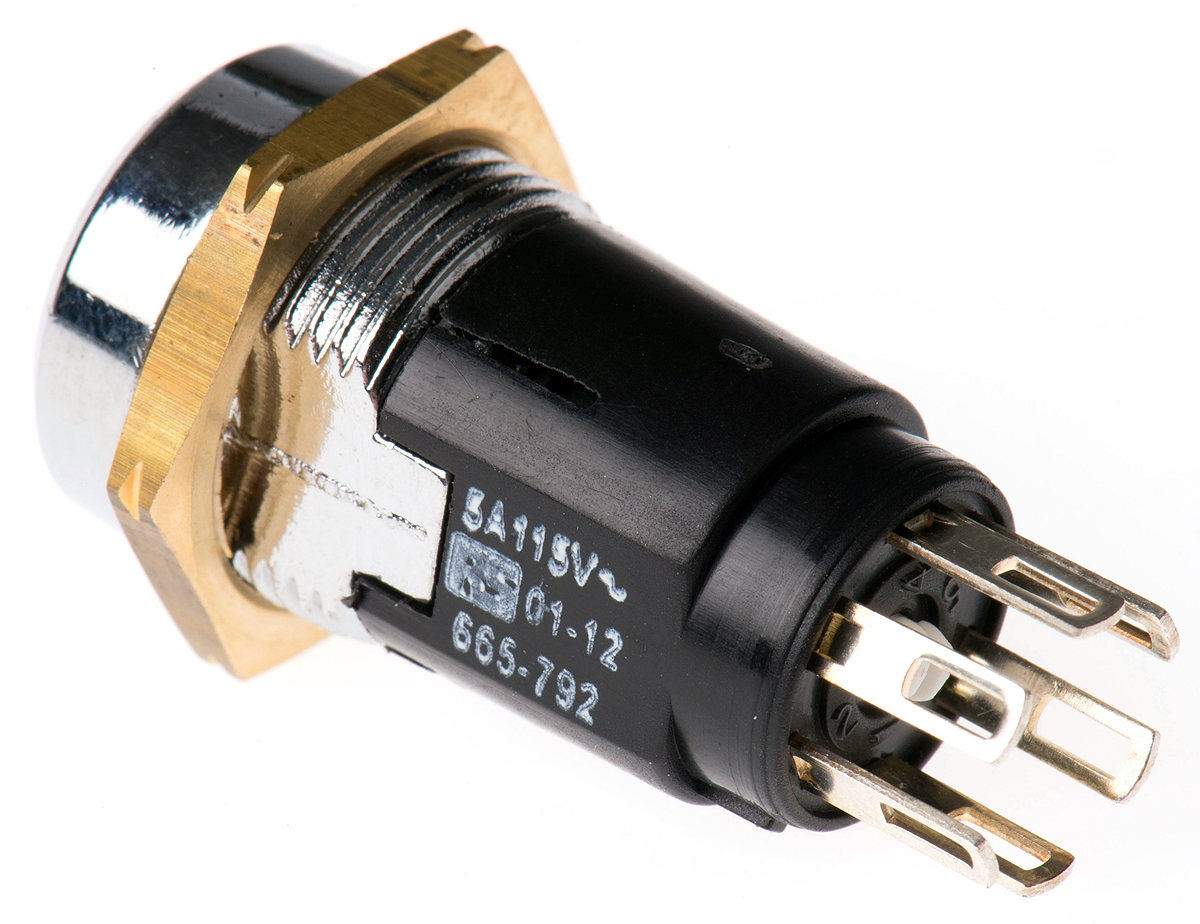

srl5jd2 Lorlin Key Switch, DPDT, 1 A @ 24V ac dc / 115V ac 2-Way Random-Key
srl5jd2 Lorlin Key Switch, DPDT, 1 A @ 24V ac dc / 115V ac 2-Way Random-Key
srl5jd2 Lorlin Key Switch, DPDT, 1 A @ 24V ac dc / 115V ac 2-Way Random-Key
srl5jd2 Lorlin Key Switch, DPDT, 1 A @ 24V ac dc / 115V ac 2-Way Random-Key
16mm Key Switch - SRL Series Miniature 2-position key switches with silver plated single-pole and double-pole changeover contacts, suitable for many low voltage switching applications
Tapered or Parallel bezel styles
Trapping (key removable in one position) or non-trapping (key removable in both positions) types available
Common key or random key profile
Rear projection less than 30 mm from panel
Spare keys are available for common profiles but for security reasons not for random profiles
Lorlin

Key Switch, DPDT, 1 A @ 24V ac dc / 115V ac 2-Way Random-Key

Manufacturer:
Lorlin
Manufacturer Part No:
SRL5JD2
Enrgtech Part No:
ET16753103
Warranty:
Manufacturer
£ 8.67

Checking for live stock

Number of Positions:

2

Contact Configuration:

DPDT

Key Trapping:

No

Contact Current Rating:

1 A @ 24V ac dc / 115V ac

Key Type:

Random

Terminal Type:

Solder

Case Material:

Zinc Alloy

Bezel Shape:

Round

Key Index Angle:

60°

Contact Material:

Silver Plated Brass

Operating Temperature Range:

-20 → +65°C

Mechanical Life:

10000
