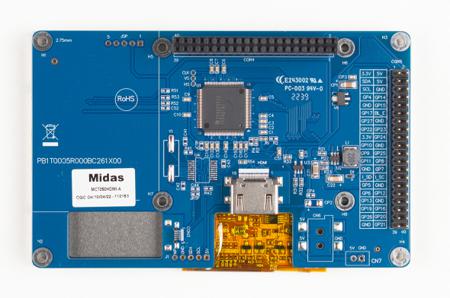

The Midas MDT0500D2SH-HDMI TFT is a TN transmissive type colour active-matrix LCD with 5.0-inch diagonal active area and a resolution of 800 x 480. It has a landscape orientation with HDMI A input. The pinout/mounting is optimised for the Raspberry Pi and OKDO ROCK. Previously called MCT050HDMI-A. This product is compatible with Raspberry Pi, OKDO ROCK and other SBCs with HDMI outputs (tested on vanilla Linux/Windows Operating systems). Features Summary: •This product is compatible with Raspberry Pi, OKDO ROCK and other SBCs with HDMI outputs
•Can be used with Midas MCIB-HDMI/HDMI interconnect board
•Size (inches): 5.0"
•Resolution: 800x480
•Module Dimensions (mm): 120.7 x 75.8 x 21.5
•Active Area (mm): 108.0 x 64.8
•Interface: HDMI (display)
•Brightness (cd/m2): 500
•Display Technology: TN
•Operating Temperature (°C): -20°C to +70°C
•Orientation: Landscape
