Fordata Transflective Alphanumeric LCD Display STN
The transflective Fordata display series boasts an LED backlit LCD screen presenting crisp and clear text over a green background with a yellow illumination. Its STN display matrix technology enables the screen to function at less power and runs at just 5 V. The monochrome passive-matrix display has superior characteristics against its TN predecessor with a 180° to 270° twisted display molecule over the 90° twist in standard TN displays.
5 x 8 dots with cursor
Build-in controller
Power supply +5 V
1/16 duty cycle
Build-in controller
Power supply +5 V
1/16 duty cycle

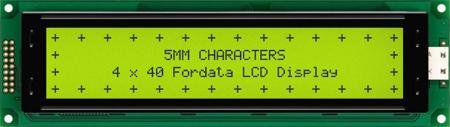

FC4004A00-FHYYBW-51SE FC Alphanumeric LCD Alphanumeric Display, Green, Yellow on Yellow-Green, 4 Rows by 40
Manufacturer:
Fordata
Manufacturer Part No:
FC4004A00-FHYYBW-51SE
Enrgtech Part No:
ET18065825
Warranty:
Manufacturer
£ 33.84
Checking for live stock
Display Type:
Alphanumeric
Character Matrix:
4 Rows by 40 Characters
Character Rows:
4
Characters per Row:
40
Character Height:
4.9mm
Character Width:
2.8mm
Viewing Area Dimensions:
147 x 30mm
Viewing Area Width:
147mm
Viewing Area Height:
29.5mm
External Depth:
10.5mm
Backlight Type:
LED
Background Colour:
Yellow-Green
