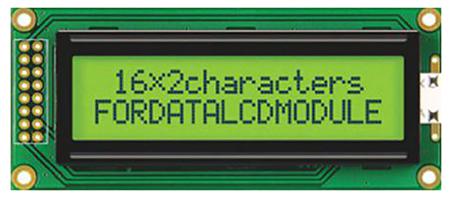

FC1602B01-FHYYBW-51SE FC Alphanumeric LCD Alphanumeric Display, Green, Yellow on Yellow-Green, 2 Rows by 16

Display Type:

Alphanumeric

Character Matrix:

2 Rows by 16 Characters

Characters per Row:

16

Character Rows:

2

Character Width:

3mm

Character Height:

5.2mm

Viewing Area Width:

64.5mm

Viewing Area Height:

16.4mm

Viewing Area Dimensions:

66 x 16mm

External Depth:

10.2mm

Backlight Type:

LED

Illumination Colour:

Green, Yellow

Background Colour:

Yellow-Green

External Width:

85mm

External Dimensions:

85 x 36 x 10.2mm

External Height:

36mm

Controller Type:

SPLC780D

Display Matrix Technology:

STN

Display Mode:

Transflective

Maximum Operating Temperature:

+70°C

Minimum Operating Temperature:

-20°C

Voltage Rating:

5.5V

Series:

FC

Driver Mounting:

COB

Current Rating:

4mA

Operating Temperature Range:

-20 → +70°C
