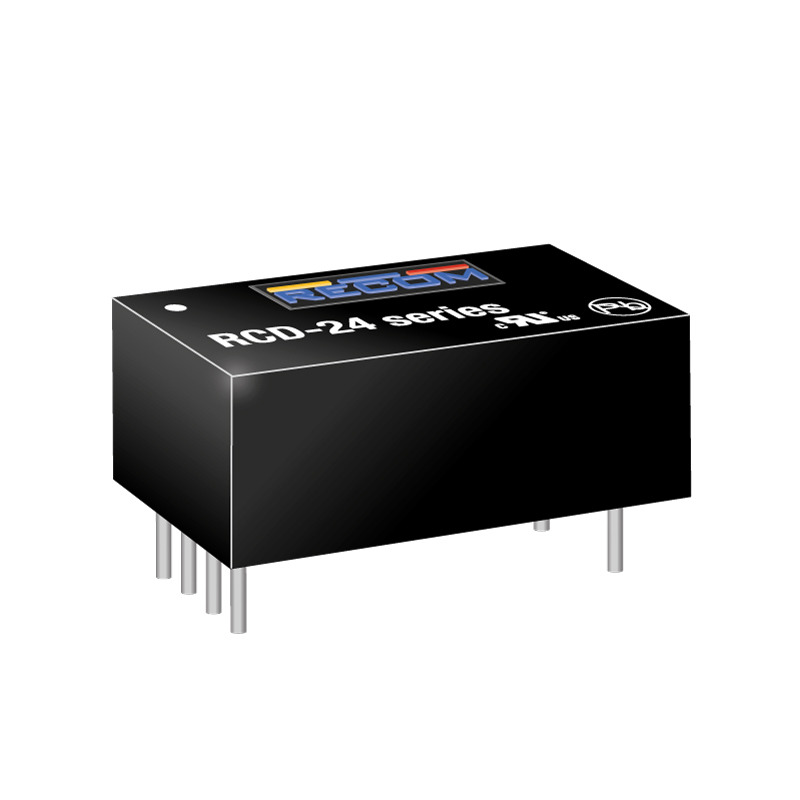

RECOM LED Driver, Dimmable, 12.25W Maximum Output Power - RCD-24 Series - RCD-24-0.35/W/Vref Use this driver from RECOM to step down the power supply to white, high-power LEDs. With a wide output voltage range of 2 to 35V DC, it can be adapted to meet the specific needs of your system. The unit has two different means of dimming – PWM control and analogue voltage dimming. These methods can be used independently or in combination to give you a choice of seamless dimming options. Short-circuit and over-temperature protection ensure the longevity and reliable operation of your LEDs. Features & Benefits • IP67 protection rating means the driver is waterproof and fully protected against dust and solid objects
• 96% efficiency to maximise energy use
• Constant current operation ensures consistent brightness across all LEDs in a series Applications • Commercial mood lighting
• Domestic lighting
• Light displays What output currents is this driver compatible with? This device can drive output currents between 0 and 350mA, making it well-suited to a wide range of LEDs. What are the dimensions of this unit? At just 22.1 (W) x 12.6 (H) x 8.5mm (D), this driver combines a compact design with high efficiency.
