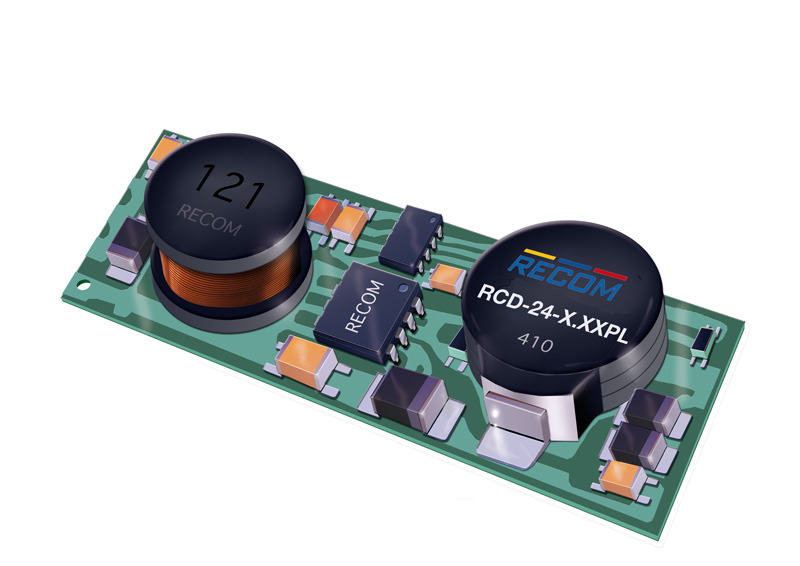

RECOM LED Driver, Dimmable, 10.5W Maximum Output Power - RCD-24-PL Series - RCD-24-0.30/PL/B Looking for an ultra-compact driver to regulate power to white LEDs? Choose this unit from RECOM. It delivers a stable output voltage between 2 and 35V DC, which is ideal for high-power lighting. With dimensions of just 31 (W) x 11.4 (H) x 6.6mm (L), this is an ideal option for applications where space is at a premium. It comes with a dimming function, which can be operated using PWM or an analogue voltage dimming mechanism. Features & Benefits • Protected against short circuits and over-temperature malfunctions for safety
• Built-in class B EMC filter eliminates electromagnetic disturbance and ensures smooth operation
• Withstands ambient temperatures from -40°C to +70°C for use in harsh environments Applications • Strip lighting
• Wall washers

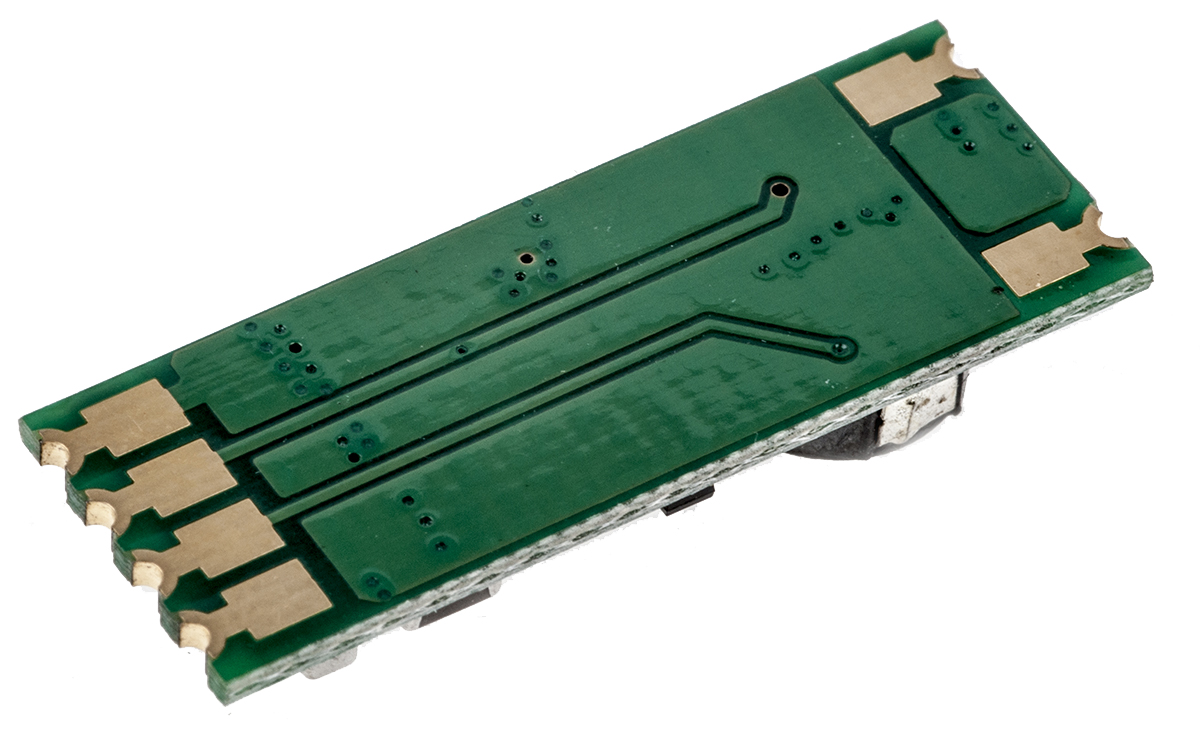

• Fluorescent tube replacement designs Does this device provide constant current or constant voltage? This driver uses a constant current mode of operation. It should be used with LEDs that are rated to operate on a stable current between 0 and 300mA. How do I install this unit? With pinless surface mount technology and an open frame design, this component is designed to give you maximum flexibility and occupy as little space as possible on your board.
