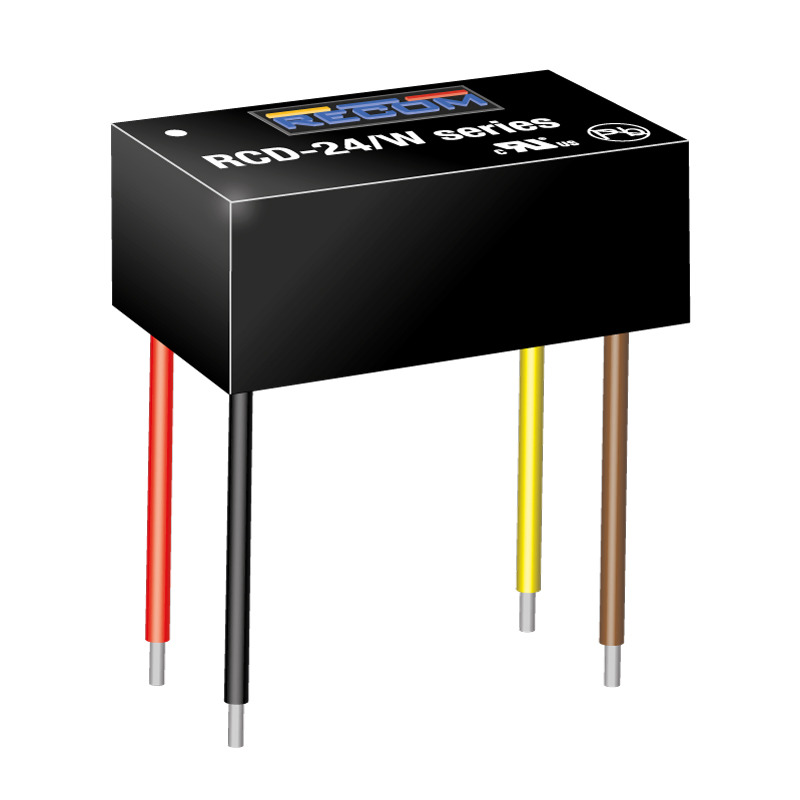

Constant Current LED Driver, Wired with Vref - RCD-24 Series
IP67 rated wired constant current LED drivers for driving high power white LEDs. These six wire, constant current LED drivers have analogue voltage dimming and built-in reference output voltage to power sensors or for easy analogue dimming.
Wide input and output voltage range
High operating operating temperature range
Analogue voltage dimming
Built in reference output voltage
IP67 ingress protection
Short circuit and overtemperature protection
High efficiency of 96%
EMC to EN55022 Class B
High operating operating temperature range
Analogue voltage dimming
Built in reference output voltage
IP67 ingress protection
Short circuit and overtemperature protection
High efficiency of 96%
EMC to EN55022 Class B
LED Driver, 2 → 35V dc Output, 10.5W Output, 300mA Output, Constant Current Dimmable
Manufacturer:
Recom
Manufacturer Part No:
RCD-24-0.30/W/Vref
Enrgtech Part No:
ET14143948
Warranty:
Manufacturer
£ 15.07
Checking for live stock
Output Voltage:
2 → 35V dc
Maximum Output Power:
10.5W
Output Current:
300mA
Dimmable:
Yes
Input Voltage:
4.5 → 36 V dc
Operation:
Constant Current
LED Driver Type:
LED Driver
Dimming Operation:
0 to 4.35 V dc, PWM
AC or DC Input Voltage:
dc
IP Rating:
IP67
Current Rating:
0 → 300mA
Series:
RCD-24
