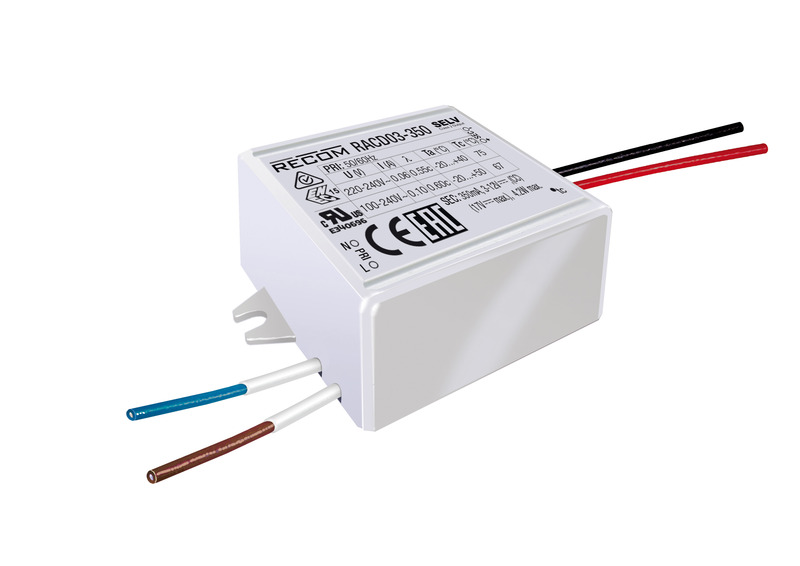

Recom 3W LED Power Supply - RACD03 Series
Recom RACD03 series 3W LED driver with dual constant voltage and constant current mode outputs. This LED power supply has a universal AC input and is suitable for driving one to six high power LEDs.
The LED driver is encapsulated in a compact plastic housing that features moulded mounting brackets. 3 mm mounting screws are included. The RACD03 has 118 mm colour coded flying leads for input power and LED supply.
Features and Benefits
- Universal input voltage range
- Dual constant voltage and constant current output
- 3kVAC isolation
- 3 kVAC isolation
- Protections: overload, short circuit, output overvoltage and overtemperature
- IP66 ingress protection
- Connection via 118 mm flying leads
LED Driver, 3 → 9.5V dc Output, 3W Output, 500mA Output, Constant Current / Constant Voltage
Manufacturer:
Recom
Manufacturer Part No:
RACD03-500
Enrgtech Part No:
ET16796213
Warranty:
Manufacturer
£ 12.28
Checking for live stock
Output Voltage:
3 → 9.5V dc
Maximum Output Power:
3W
Output Current:
500mA
Dimmable:
No
Input Voltage:
120 → 370 V dc, 90 → 264 V ac
Operation:
Constant Current / Constant Voltage
LED Driver Type:
LED Driver
AC or DC Input Voltage:
ac, dc
IP Rating:
IP66
Current Rating:
0 → 500mA
Series:
RACD03
Number of Outputs:
1
