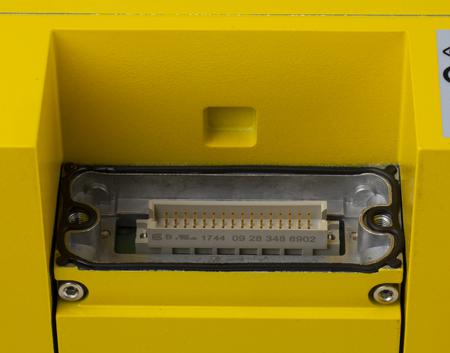

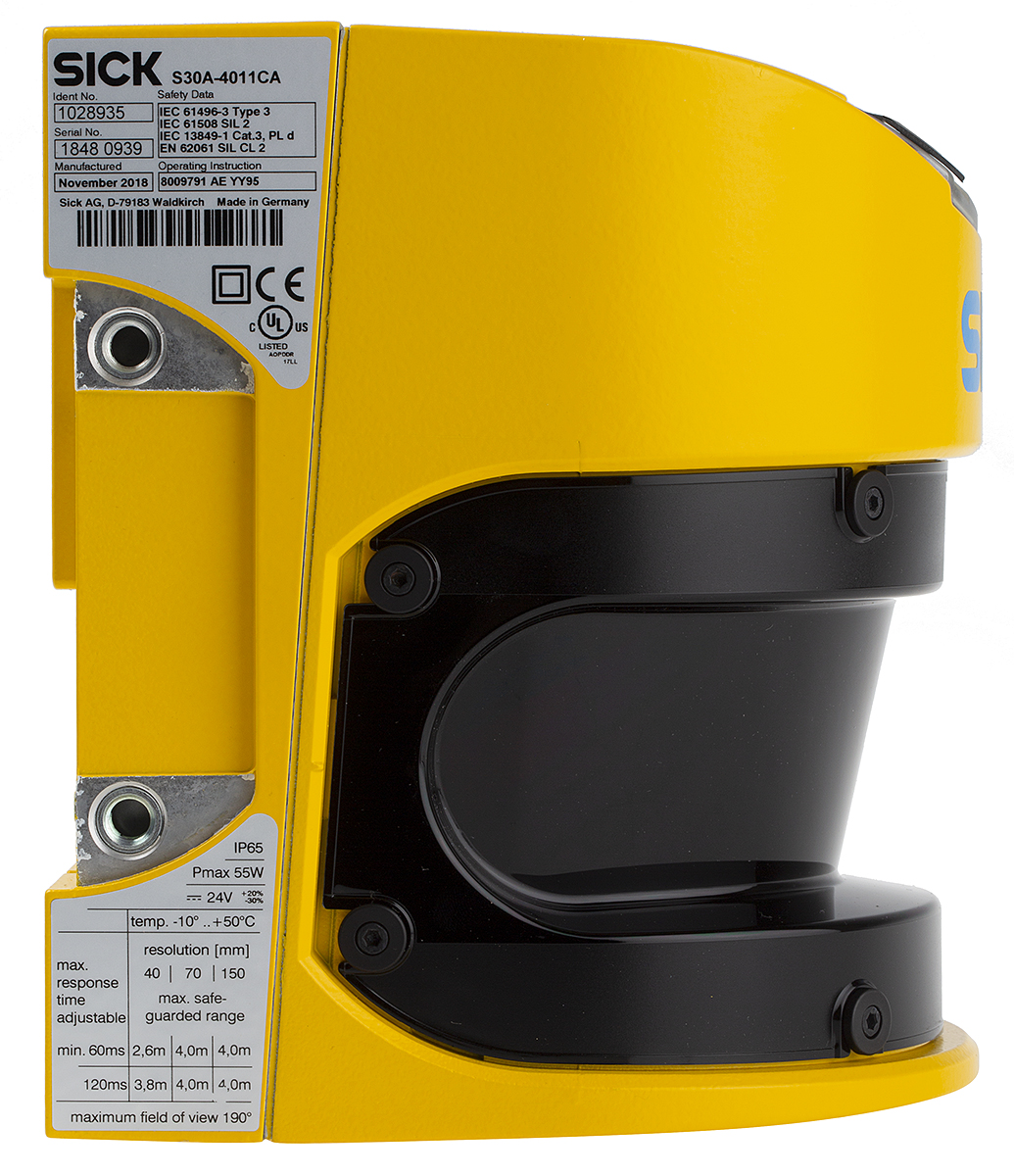

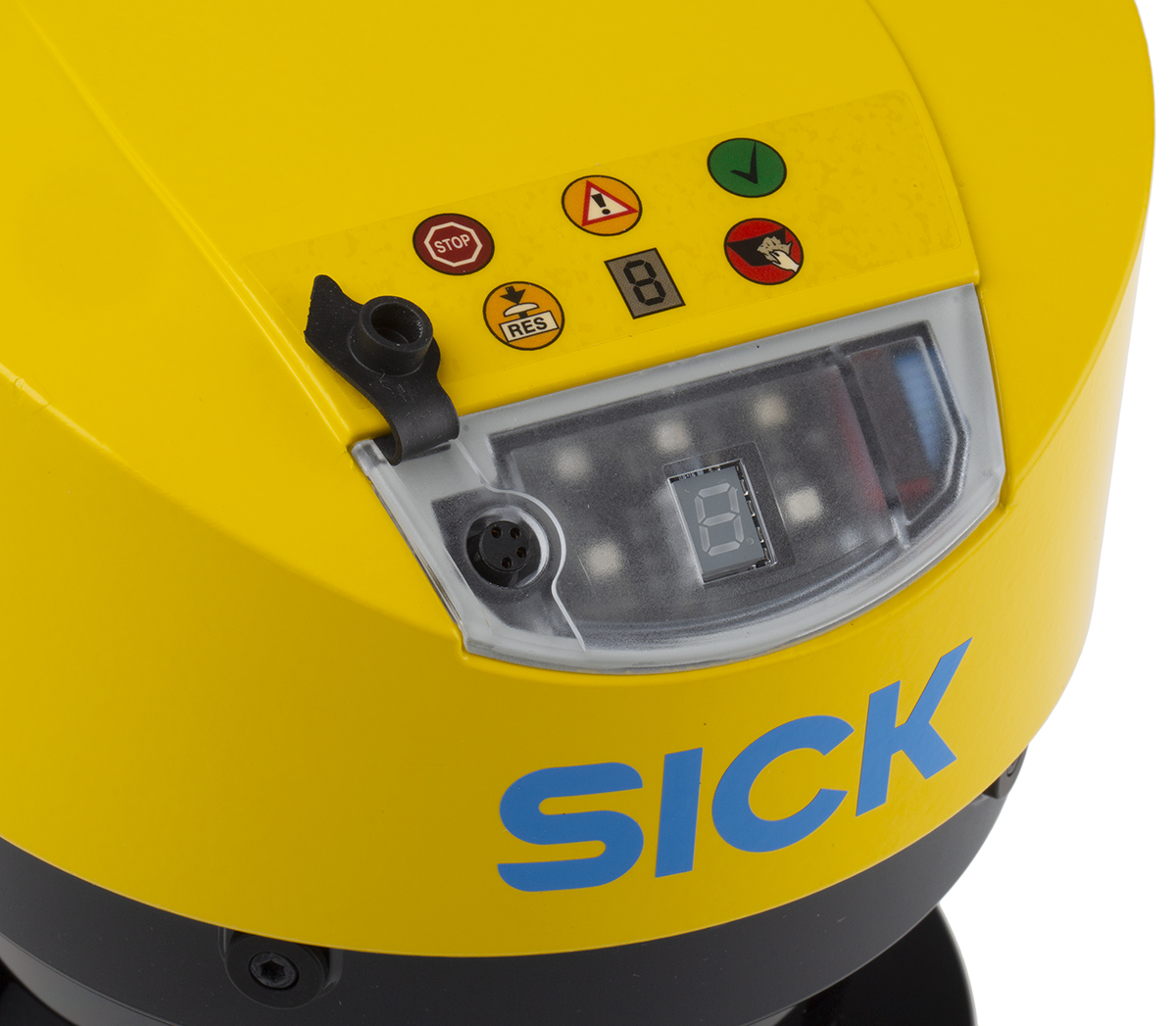

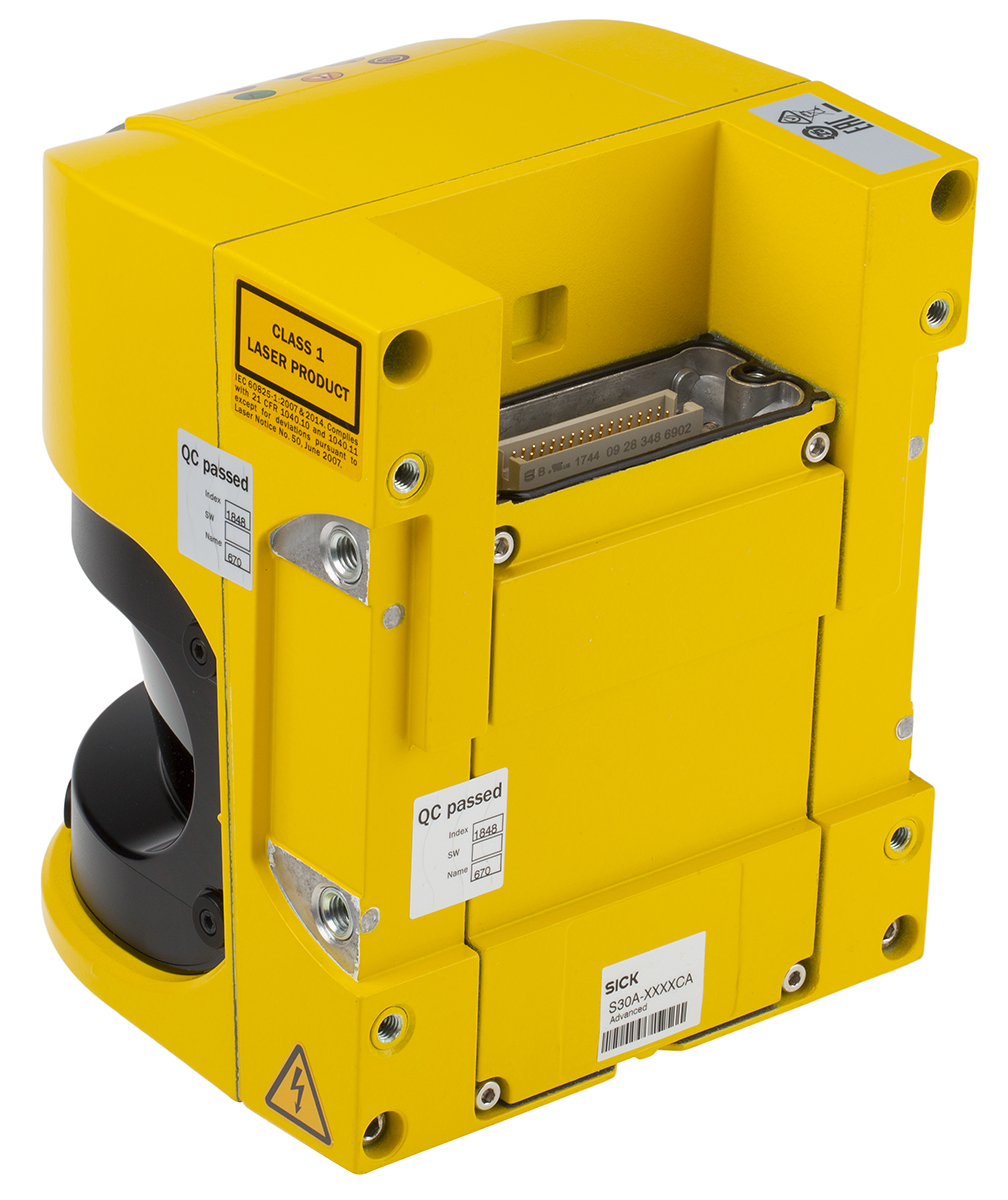

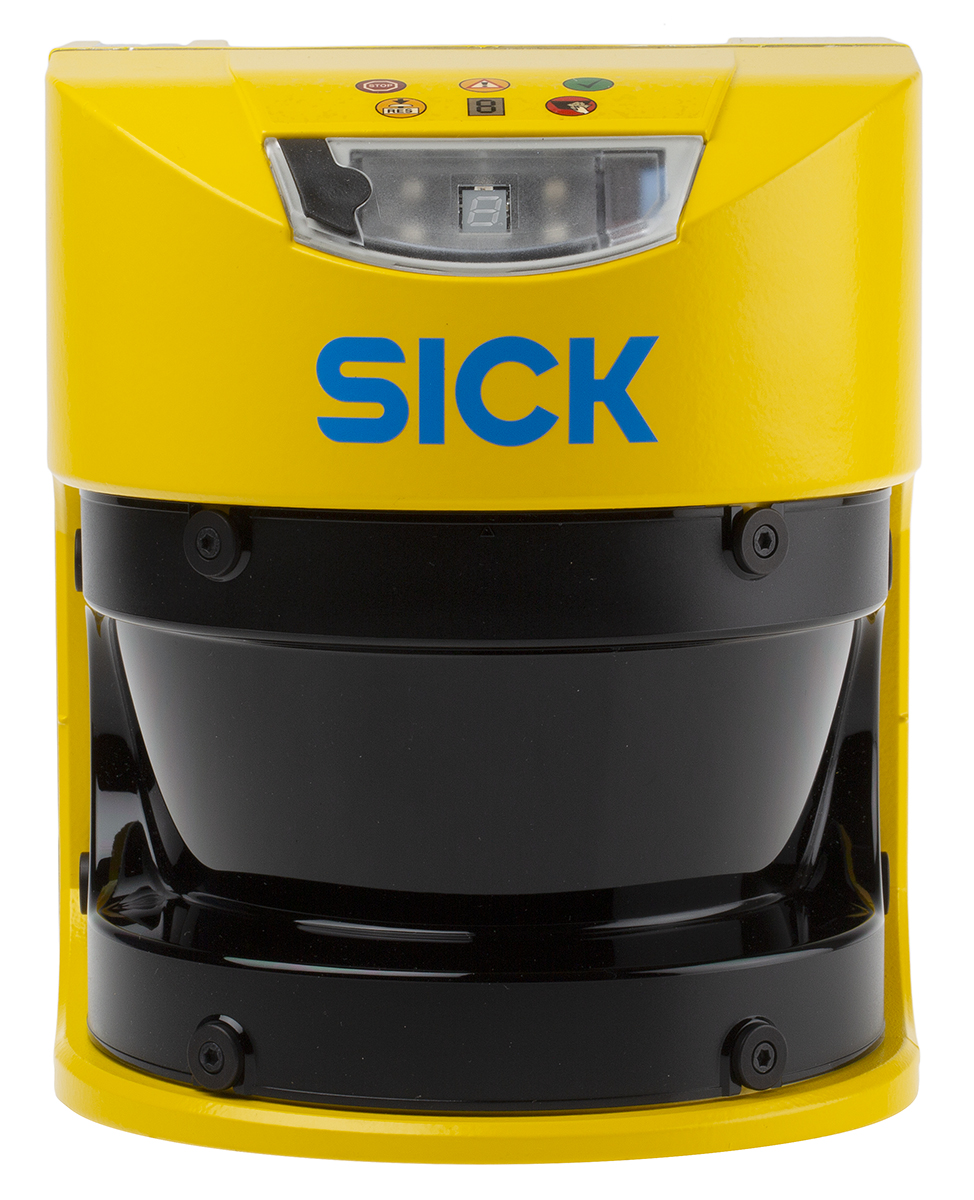

S3000, Advanced Safety Laser Scanner Four protection and four warning fields are freely programmable using the software supplied with the device. This allows each laser scanner to be set up according to the unique requirements of each installation. Applications: Typical applications include: Robot Cells; Tube bending machines; Automotive Industry; Collision avoidance; mobile applications (AGV); Area protection; Internal space protection (large presses) and the replacement of safety mats. Features: Simultaneous monitoring of 2 protection fields possible Plug and play for device exchange (program memory in connection plug) Short response time (60ms minimum) 190° Scanning window 4 m radius for the safety field 49 m warning field 2 OSSD safety outputs, 1 warning field output, 1 diagnostic output 2 Control inputs, 1 reset input, 1 EDM input IP 65 UE10: Single or dual channel control 3 Normally open, 1 normally closed output 22.5mm Housing Switching current 6A Switching Voltage 230 Vac/ 30 Vdc The UE10 is suitable for interfacing SICK light curtains and laser scanner products where volt free contacts are required for the control system. The UE10 should be wired into the EDM input of the device in accordance with The SICK recommendations. This product does not have a reset therefore the reset should be enabled on the safety sensing device or another safety related control element. Note The connection cable 271-495 is not supplied and must be purchased separately. A programming cable is available, 271-580 which connects S3000 to a PC via serial interface for configuration and an interface relay 271-502 can also be purchased separately Caution Installation and operation of this safety device must be ...
