74LVC Family Inverters & Buffers, Texas Instruments
Texas Instruments range of Inverters and Buffers from the 74LVC Family of Low-voltage CMOS Logic ICs. The 74LVC Family use silicon gate CMOS technology and is designed to operate at 3.3V, allowing a significant reduction in power consumption when compared to 5V systems.
Operating Voltage: 1.65 to 3.6V
5V tolerant inputs
Compatibility: Input LVTTL/TTL, Output LVCMOS
Latch-up performance exceeds 250 mA per JESD 17
ESD protection exceeds JESD 22
5V tolerant inputs
Compatibility: Input LVTTL/TTL, Output LVCMOS
Latch-up performance exceeds 250 mA per JESD 17
ESD protection exceeds JESD 22

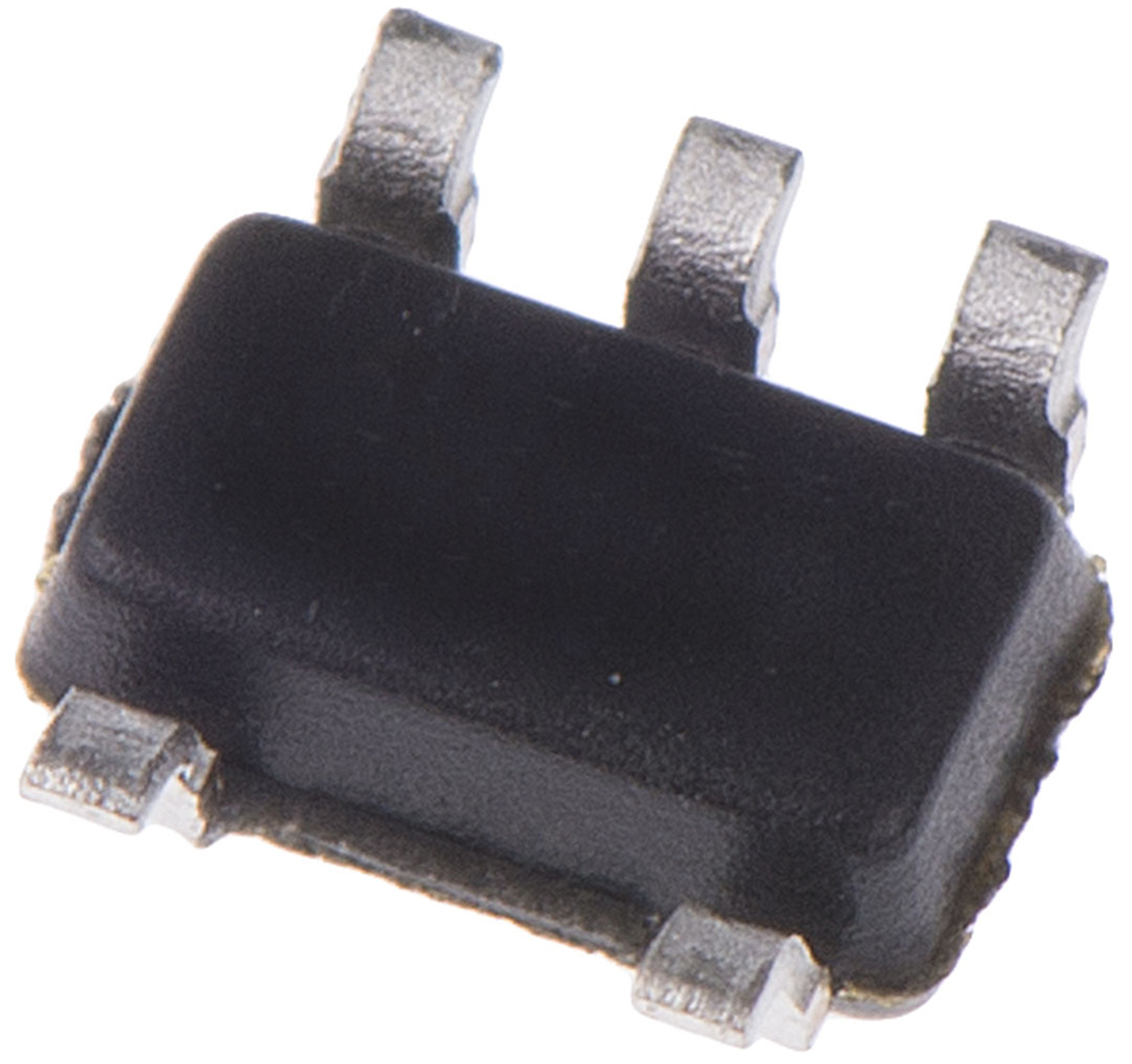

SN74LVC1G07DBVR Buffer & Line Driver, Open Drain, 5-Pin SOT-23
Manufacturer:
Texas Instruments
Manufacturer Part No:
SN74LVC1G07DBVR
Enrgtech Part No:
ET11976136
Warranty:
Manufacturer
£ 0.13
Checking for live stock
Logic Family:
74LVC
Logic Function:
Buffer, Driver
IC Type:
Buffer & Line Driver IC
Input Type:
CMOS, TTL
Output Type:
Open Drain
Polarity:
Non-Inverting
Mounting Type:
Surface Mount
Package Type:
SOT-23
Pin Count:
5
Dimensions:
3.05 x 1.75 x 1.3mm
Maximum Operating Supply Voltage:
5.5 V
Minimum Operating Supply Voltage:
1.65 V
