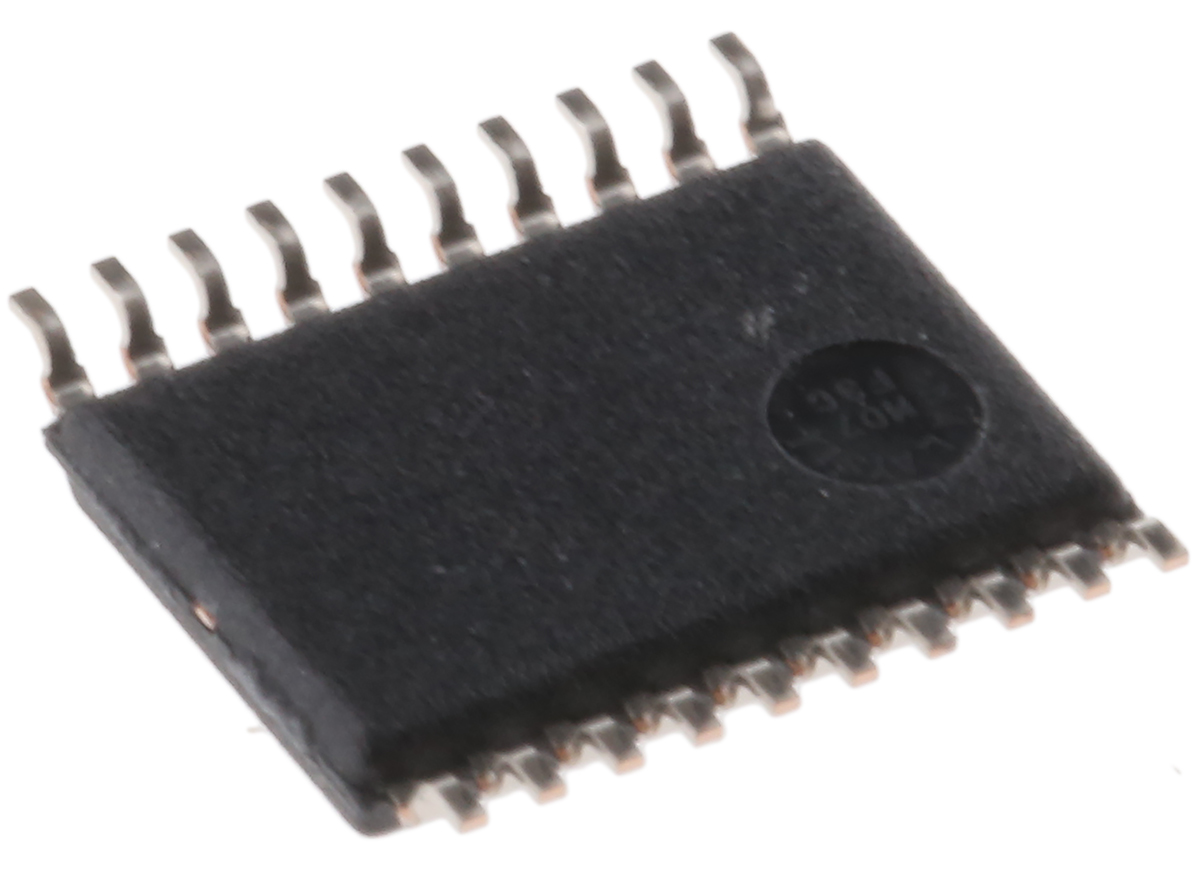

SN74LVC541APW Octal-Channel Buffer & Line Driver, 3-State, 20-Pin TSSOP

Logic Family:

LVC

Logic Function:

Buffer, Line Driver

Number of Channels per Chip:

8

IC Type:

Buffer & Line Driver IC

Input Type:

Single Ended

Output Type:

3 State

Polarity:

Non-Inverting

Mounting Type:

Surface Mount

Package Type:

TSSOP

Pin Count:

20

Maximum High Level Output Current:

-24mA

Maximum Low Level Output Current:

24mA

Maximum Propagation Delay Time @ Maximum CL:

5.6 ns @ 2.7 V

Dimensions:

6.5 x 4.4 x 1.15mm

Minimum Operating Supply Voltage:

1.65 V

Maximum Operating Supply Voltage:

3.6 V

Propagation Delay Test Condition:

50pF
