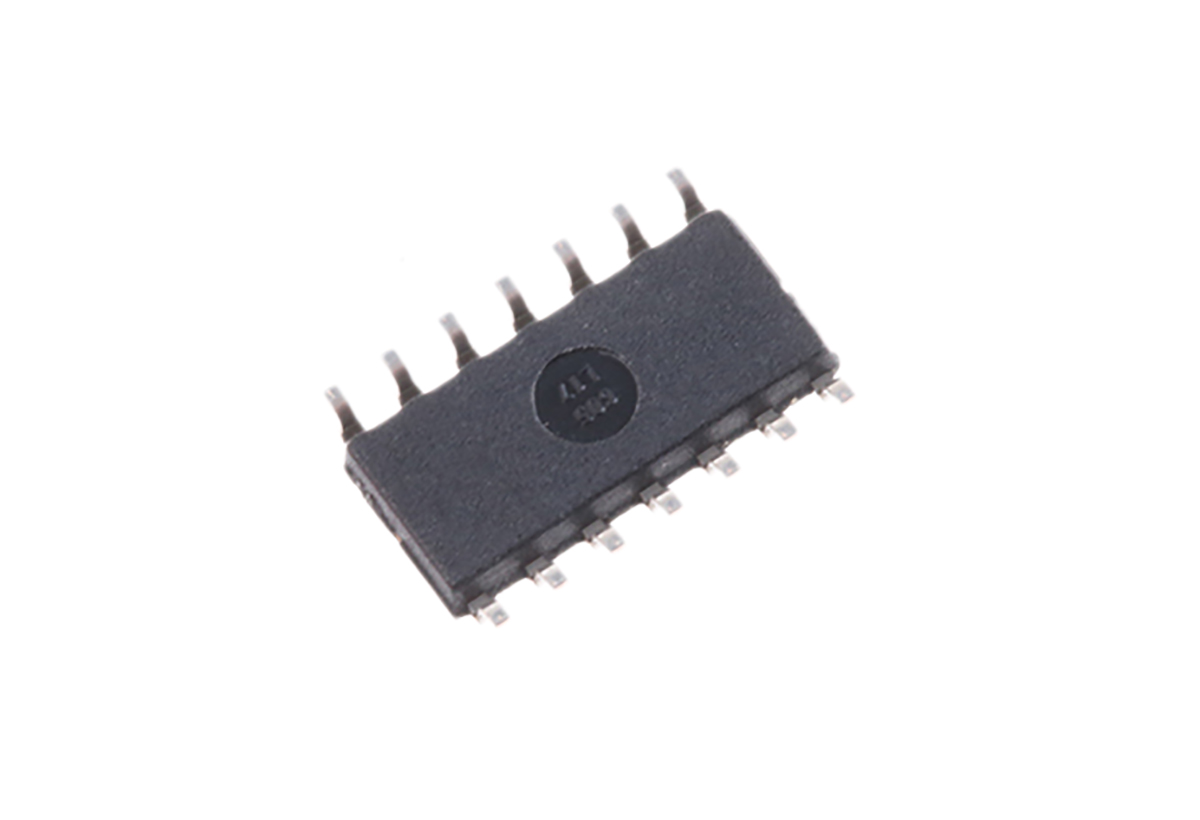

SN7407D Hex-Channel Buffer & Line Driver, Open Collector, 14-Pin SOIC

Logic Family:

74

Logic Function:

Buffer, Driver

Number of Channels per Chip:

6

IC Type:

Buffer & Line Driver IC

Input Type:

Single Ended

Output Type:

Open Collector

Polarity:

Non-Inverting

Mounting Type:

Surface Mount

Package Type:

SOIC

Pin Count:

14

Maximum High Level Output Current:

-0.25mA

Maximum Low Level Output Current:

40mA

Maximum Propagation Delay Time @ Maximum CL:

26 ns @ 5 V

Dimensions:

8.65 x 3.91 x 1.58mm

Minimum Operating Supply Voltage:

4.75 V

Maximum Operating Supply Voltage:

5.25 V

Propagation Delay Test Condition:

50pF
