74LS Family Complex Function, Texas Instruments
Texas Instruments Complex Function ICs from the 74LS Low Power Schottky Logic Family includes Binary Adders, Magnitude & Identity Comparators and 4-to-7 BCD Decoder/Drivers. The 74LS Family use bipolar junction technology coupled with Schottky diode clamps to achieve operating speeds equal to the original 74TTL family but with much lower power consumption.

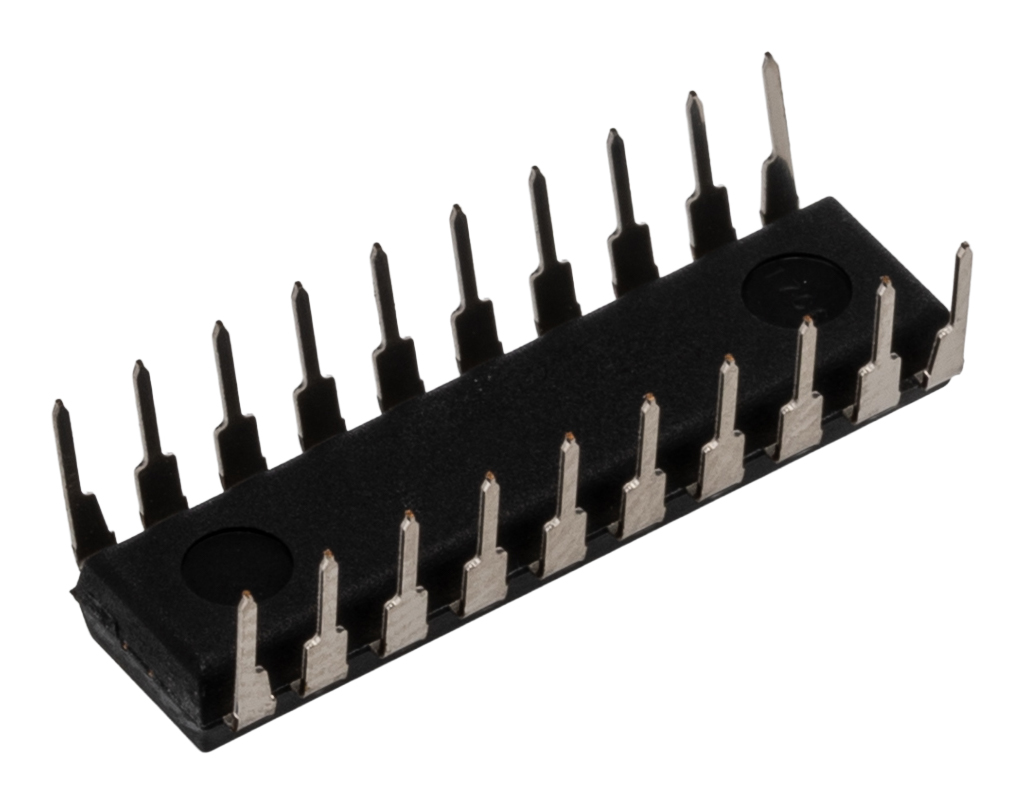

SN74LS682N, 8-Bit, Magnitude Comparator, Push-Pull, Inverting, 20-Pin PDIP
Manufacturer:
Texas Instruments
Manufacturer Part No:
SN74LS682N
Enrgtech Part No:
ET11165086
Warranty:
Manufacturer
£ 3.54
Checking for live stock
Logic Family:
LS
Logic Function:
Magnitude Comparator
Output Function:
A=B, A>B
Number of Bits:
8
Output Type:
Push-Pull
Polarity:
Inverting
Mounting Type:
Through Hole
Package Type:
PDIP
Pin Count:
20
Maximum High Level Output Current:
-0.4mA
Maximum Low Level Output Current:
24mA
Maximum Propagation Delay Time @ Maximum CL:
30 ns@ 5 V
