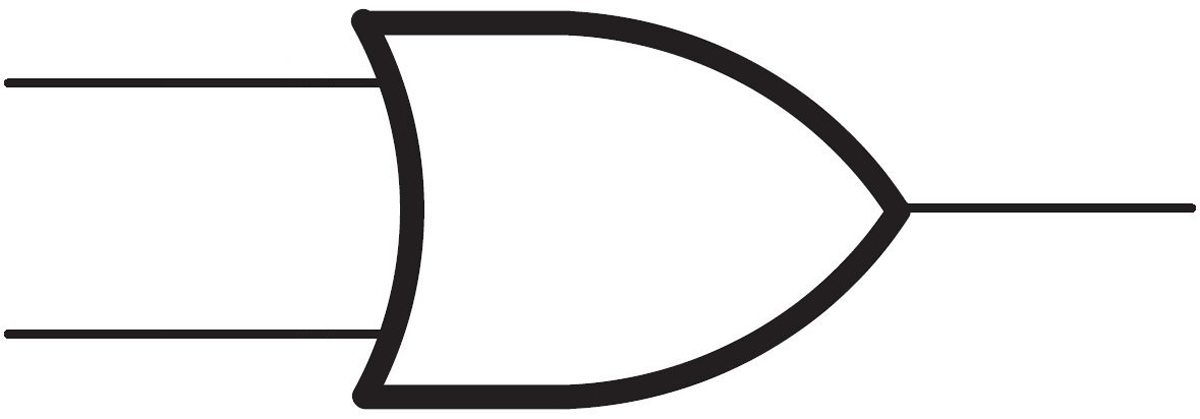

sn74hc7032d Texas Instruments SN74HC7032D, 4 2-Input OR Schmitt Trigger Input Logic Gate, 14-Pin SOIC
sn74hc7032d Texas Instruments SN74HC7032D, 4 2-Input OR Schmitt Trigger Input Logic Gate, 14-Pin SOIC
sn74hc7032d Texas Instruments SN74HC7032D, 4 2-Input OR Schmitt Trigger Input Logic Gate, 14-Pin SOIC

Texas Instruments SN74HC7032D, Quad 2-Input OR Schmitt Trigger Logic Gate, 14-Pin SOIC

RoHs Compliant

Texas Instruments SN74HC7032D, 4 2-Input OR Schmitt Trigger Input Logic Gate, 14-Pin SOIC

Manufacturer:
Texas Instruments
Manufacturer Part No:
SN74HC7032D
Enrgtech Part No:
ET100558175
Warranty:
Manufacturer
Pre-order

Estimated Delivery Time: 7-13 weeks

Order Today!
From: United Kingdom

Estimated Delivery Time: 7-13 weeks

Height:
1.58mm
Length:
8.65mm
Series:
SN74
Pin Count:
14
Input Type:
Schmitt Trigger
Mount Type:
Surface
Output Type:
Push Pull
Logic Family:
HC
Package Type:
SOIC
Product Type:
Logic Gate
Logic Function:
OR
Number of Elements:
4
Automotive Standard:
No
Standards/Approvals:
No
Schmitt Trigger Input:
Yes
Maximum Supply Voltage:
6V
Minimum Supply Voltage:
2V
Number of Inputs per Gate:
2
Maximum Operating Temperature:
85°C
Minimum Operating Temperature:
-40°C
Maximum Low Level Output Current:
5.2mA
Maximum High Level Output Current:
-5.2mA
Maximum Propagation Delay Time @ CL:
28ns
