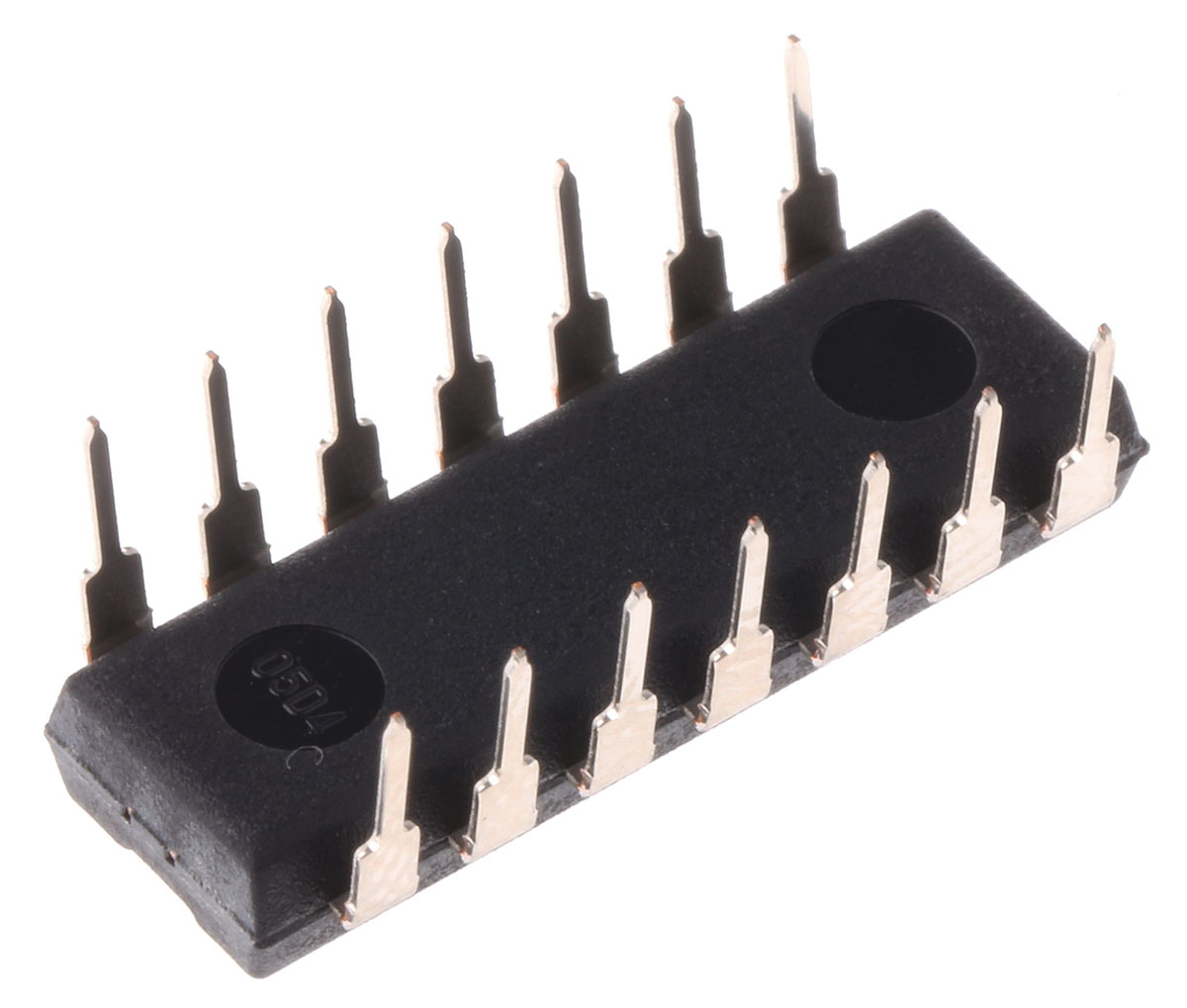

CD74HC08E, Quad 2-Input AND Logic Gate, 14-Pin PDIP

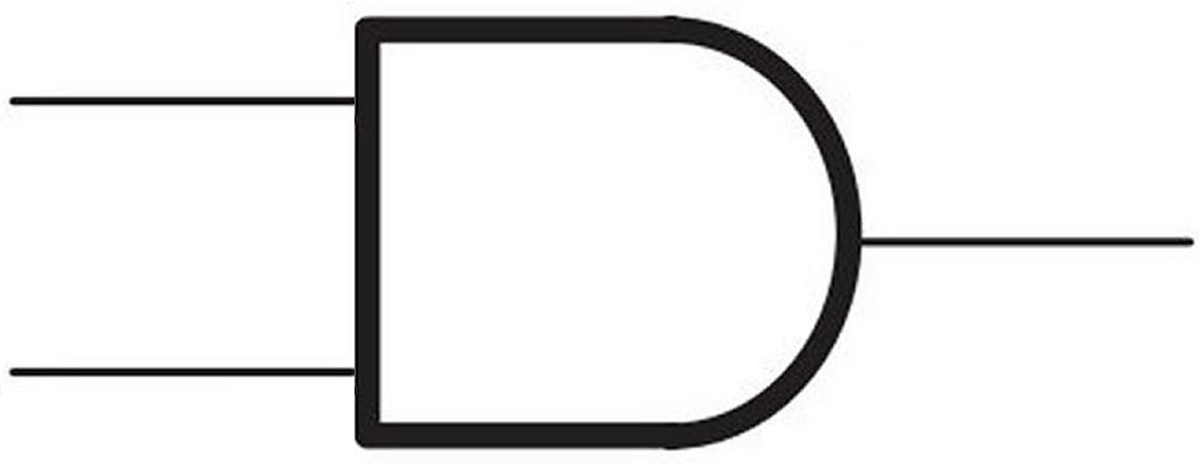

Logic Function:

AND

Mounting Type:

Through Hole

Number of Elements:

4

Number of Inputs per Gate:

2

Schmitt Trigger Input:

No

Package Type:

PDIP

Pin Count:

14

Logic Family:

HC

Maximum Operating Supply Voltage:

6 V

Maximum High Level Output Current:

-5.2mA

Maximum Propagation Delay Time @ Maximum CL:

15 ns @ 6 V, 18 ns @ 4.5 V, 90 ns @ 2 V

Minimum Operating Supply Voltage:

2 V

Maximum Low Level Output Current:

5.2mA

Height:

4.57mm

Minimum Operating Temperature:

-55 °C

Width:

6.35mm

Dimensions:

19.3 x 6.35 x 4.57mm

Length:

19.3mm

Propagation Delay Test Condition:

50pF

Maximum Operating Temperature:

+125 °C
