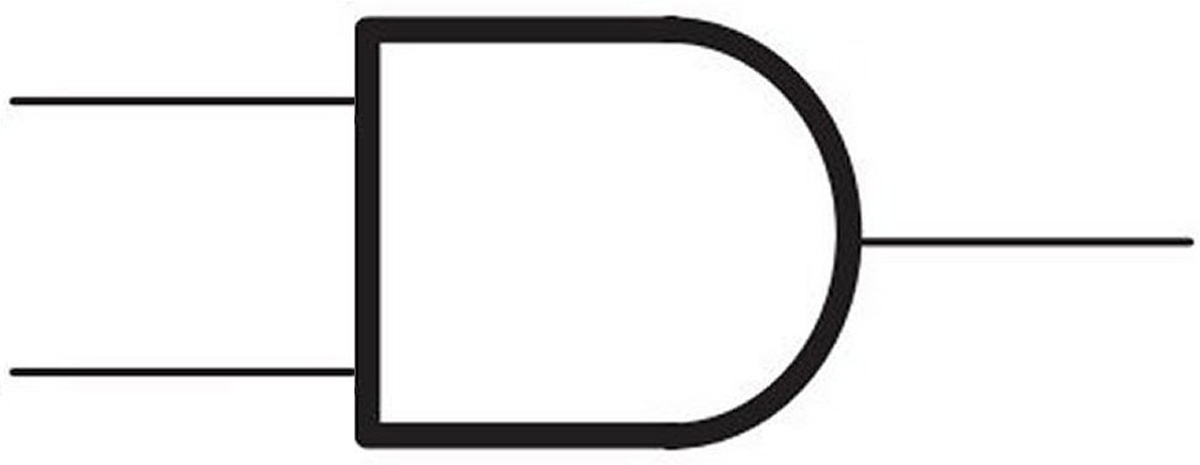

SN74LVC2G08DCUR 2-Input AND Logic Gate, 8-Pin US

Logic Function:

AND

Mounting Type:

Surface Mount

Number of Elements:

1

Number of Inputs per Gate:

2

Schmitt Trigger Input:

No

Package Type:

US

Pin Count:

8

Logic Family:

LVC

Input Type:

Differential

Maximum Operating Supply Voltage:

5.5 V

Maximum High Level Output Current:

-4mA

Maximum Propagation Delay Time @ Maximum CL:

4.8 ns @ 50 pF

Minimum Operating Supply Voltage:

1.65 V

Maximum Low Level Output Current:

32mA

Propagation Delay Test Condition:

50pF

Dimensions:

2.4 x 2.1 x 0.8mm

Width:

2.1mm

Height:

0.8mm

Priced to Clear:

Yes

Length:

2.4mm

Maximum Operating Temperature:

+125 °C

Output Type:

Single Ended

Minimum Operating Temperature:

-40 °C
