74HCT Family Logic Gates, Texas Instruments
Texas Instruments range of standard Logic Gates from the 74HCT Family of CMOS Logic ICs. Inputs of the 74HCT family are 74LSTTL compatible, and the products use silicon gate CMOS technology to achieve operating speeds similar to the LSTTL family but with the low power consumption of standard CMOS integrated circuits.
High-Speed CMOS Logic
Operating Voltage 4.5 to 5.5 V
Compatibility: Input TTL, Output CMOS
Operating Voltage 4.5 to 5.5 V
Compatibility: Input TTL, Output CMOS

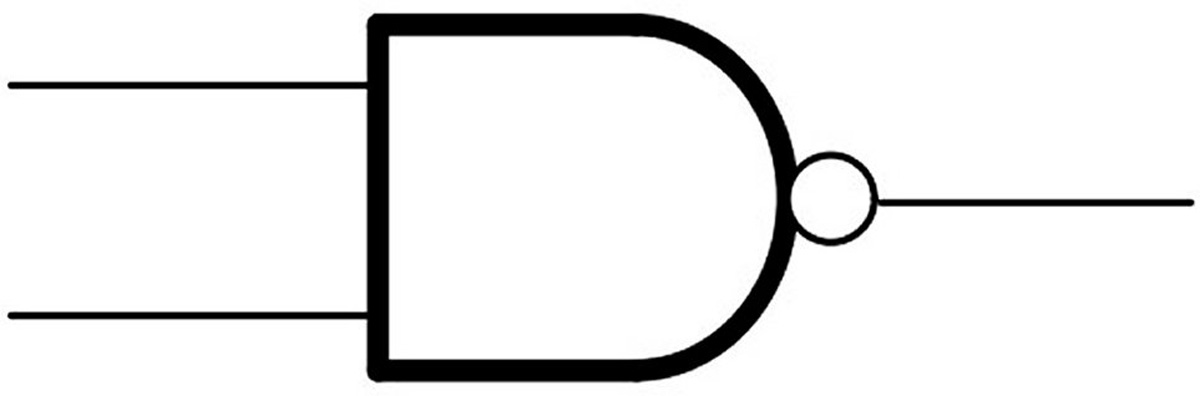

SN74HCT00N, Quad 2-Input NAND Logic Gate, 14-Pin PDIP
Manufacturer:
Texas Instruments
Manufacturer Part No:
SN74HCT00N
Enrgtech Part No:
ET11453441
Warranty:
Manufacturer
£ 0.30
Checking for live stock
Logic Function:
NAND
Mounting Type:
Through Hole
Number of Elements:
4
Number of Inputs per Gate:
2
Schmitt Trigger Input:
No
Package Type:
PDIP
Pin Count:
14
Logic Family:
HCT
Maximum Operating Supply Voltage:
5.5 V
Maximum High Level Output Current:
-4mA
Maximum Propagation Delay Time @ Maximum CL:
18 ns @ 5.5 V, 20 ns @ 4.5 V
Minimum Operating Supply Voltage:
4.5 V
