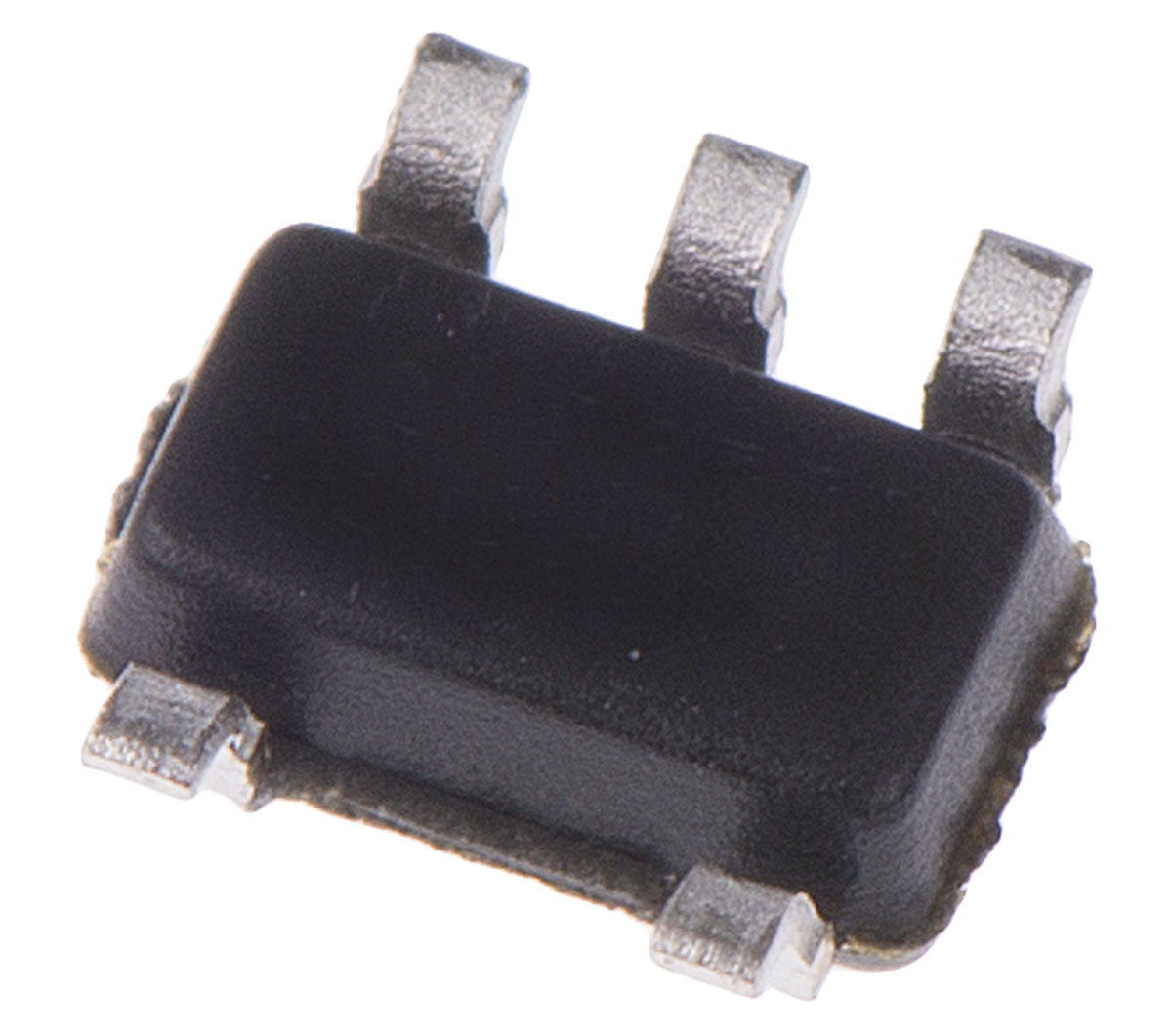

SN74LVC1G00DBVR 2-Input NAND Logic Gate, 5-Pin SOT-23

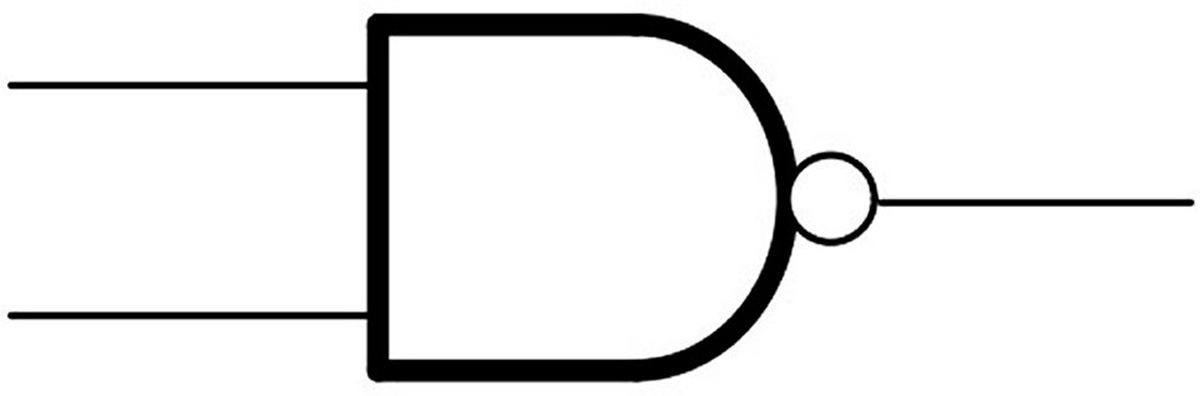

Logic Function:

NAND

Mounting Type:

Surface Mount

Number of Elements:

1

Number of Inputs per Gate:

2

Schmitt Trigger Input:

No

Package Type:

SOT-23

Pin Count:

5

Logic Family:

LVC

Input Type:

CMOS, TTL

Maximum Operating Supply Voltage:

5.5 V

Maximum High Level Output Current:

-32mA

Maximum Propagation Delay Time @ Maximum CL:

4.3 ns @ 5 V

Minimum Operating Supply Voltage:

1.65 V

Maximum Low Level Output Current:

32mA

Height:

1.3mm

Length:

3.05mm

Output Type:

CMOS

Minimum Operating Temperature:

-40 °C

Propagation Delay Test Condition:

50pF

Dimensions:

3.05 x 1.75 x 1.3mm

Width:

1.75mm

Maximum Operating Temperature:

+125 °C
