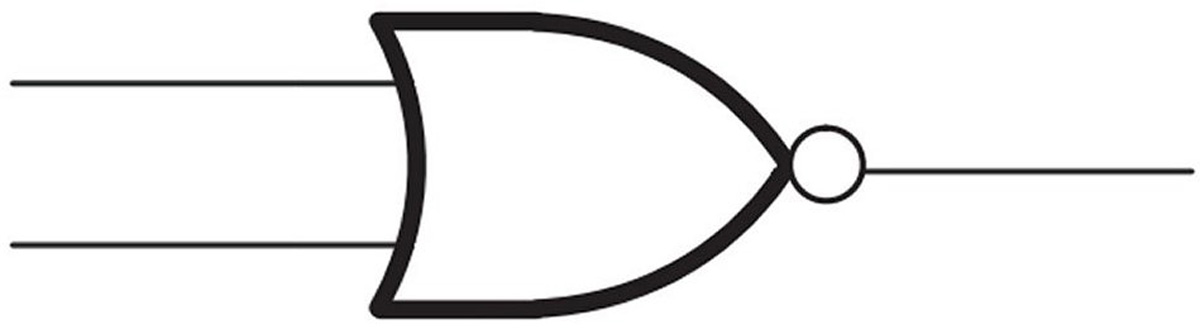

CD4001UBE, Quad 2-Input NOR Logic Gate, 14-Pin PDIP

Logic Function:

NOR

Mounting Type:

Through Hole

Number of Elements:

4

Number of Inputs per Gate:

2

Schmitt Trigger Input:

No

Package Type:

PDIP

Pin Count:

14

Logic Family:

4000

Maximum Operating Supply Voltage:

18 V

Maximum High Level Output Current:

-4.2mA

Maximum Propagation Delay Time @ Maximum CL:

120 ns @ 5 V, 50 ns @ 15 V, 60 ns @ 10 V

Minimum Operating Supply Voltage:

3 V

Maximum Low Level Output Current:

4.2mA

Maximum Operating Temperature:

+125 °C

Minimum Operating Temperature:

-55 °C

Height:

4.57mm

Width:

6.35mm

Dimensions:

19.3 x 6.35 x 4.57mm

Propagation Delay Test Condition:

50pF

Length:

19.3mm
