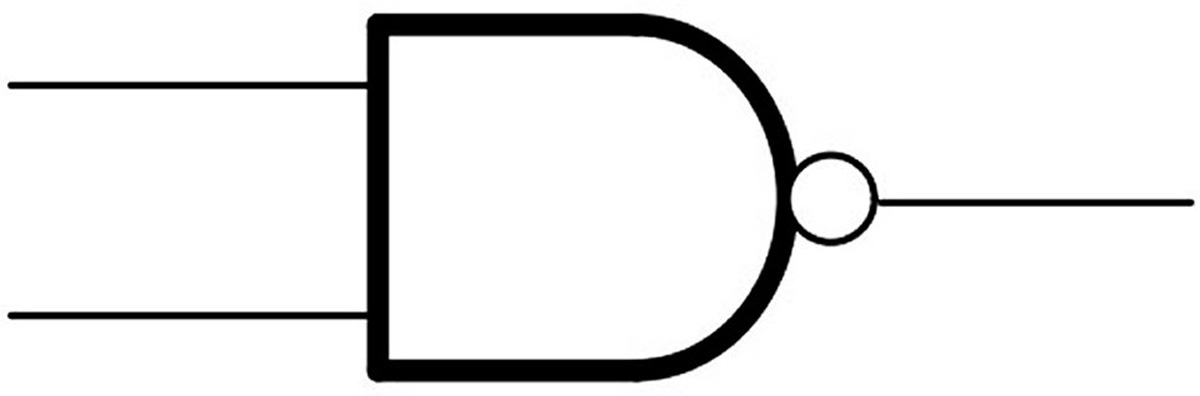

SN7438N, Quad 2-Input NAND Logic Gate, 14-Pin PDIP

Logic Function:

NAND

Mounting Type:

Through Hole

Number of Elements:

4

Number of Inputs per Gate:

2

Schmitt Trigger Input:

No

Package Type:

PDIP

Pin Count:

14

Logic Family:

74

Maximum Operating Supply Voltage:

5.25 V

Maximum High Level Output Current:

-0.25mA

Maximum Propagation Delay Time @ Maximum CL:

22 ns @ 5 V

Minimum Operating Supply Voltage:

4.75 V

Maximum Low Level Output Current:

48mA

Dimensions:

19.3 x 6.35 x 4.57mm

Minimum Operating Temperature:

0 °C

Width:

6.35mm

Height:

4.57mm

Propagation Delay Test Condition:

45pF

Output Type:

Open Collector

Maximum Operating Temperature:

+70 °C

Length:

19.3mm
