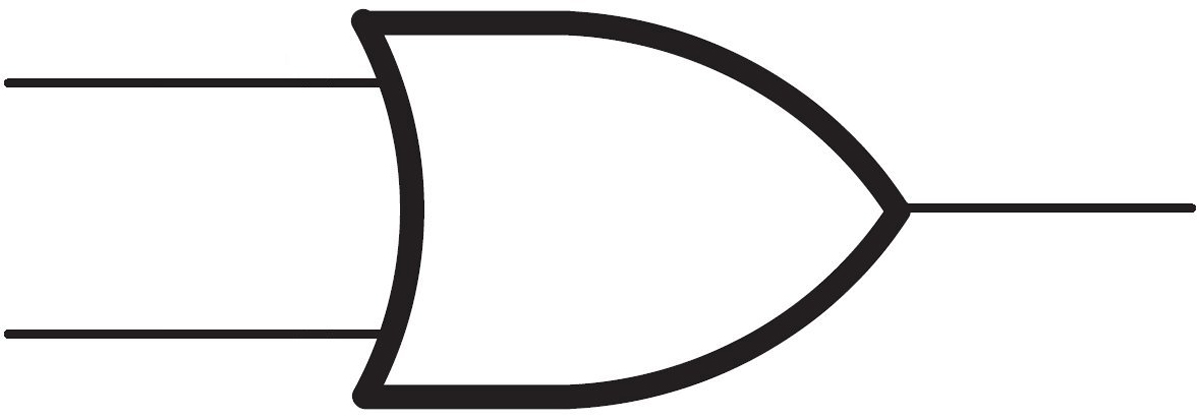

CD4072BE, Dual 4-Input OR Logic Gate, 14-Pin PDIP

Logic Function:

OR

Mounting Type:

Through Hole

Number of Elements:

2

Number of Inputs per Gate:

4

Schmitt Trigger Input:

No

Package Type:

PDIP

Pin Count:

14

Logic Family:

4000

Input Type:

CMOS

Maximum Operating Supply Voltage:

18 V

Maximum High Level Output Current:

-4.2mA

Maximum Propagation Delay Time @ Maximum CL:

250 ns @ 50 pF

Minimum Operating Supply Voltage:

3 V

Maximum Low Level Output Current:

4.2mA

Dimensions:

19.69 x 6.6 x 4.57mm

Minimum Operating Temperature:

-55 °C

Propagation Delay Test Condition:

50pF

Width:

6.6mm

Height:

4.57mm

Length:

19.69mm

Output Type:

CMOS

Maximum Operating Temperature:

+125 °C
