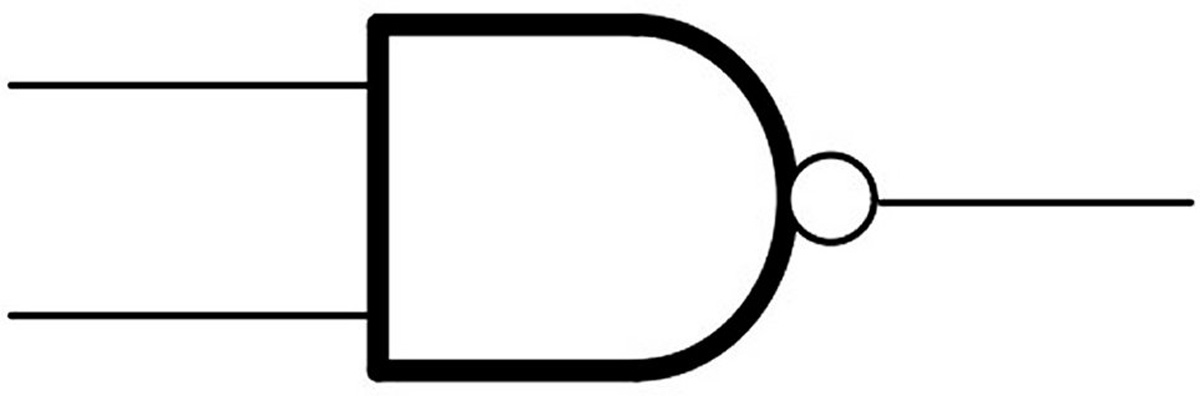

sn74ls20n Texas Instruments, 2 4-Input NAND Logic Gate, 14-Pin PDIP
sn74ls20n Texas Instruments, 2 4-Input NAND Logic Gate, 14-Pin PDIP
sn74ls20n Texas Instruments, 2 4-Input NAND Logic Gate, 14-Pin PDIP

Texas Instruments SN74LS20N, Dual 4-Input NAND Logic Gate, 14-Pin PDIP

RoHs Compliant

Texas Instruments , 2 4-Input NAND Logic Gate, 14-Pin PDIP

Manufacturer:
Texas Instruments
Manufacturer Part No:
SN74LS20N
Enrgtech Part No:
ET12117229
Warranty:
Manufacturer
Another Location
311 - In Stock

Estimated Delivery Time: 7-13 weeks

Each

Quantity
Unit Price (ex VAT)
25
£ 1.14
50
£ 1.12
100
£ 1.09
Order Today!
From: United Kingdom
Est Ship date: 15 Sep, 2026
Est Delivery date: 16 Sep, 2026
Quantity
Unit Price (ex VAT)
25
£ 0.63
250
£ 0.61
375
£ 0.59
Order Today!
From: United Kingdom
Est Ship Date: 16 Sep, 2026
Est Fastest Delivery: 17 Sep, 2026
Height:
4.57mm
Length:
19.3mm
Pin Count:
14
Mount Type:
Through Hole
Logic Family:
LS
Package Type:
PDIP
Product Type:
Logic Gate
Logic Function:
NAND
Number of Elements:
2
Automotive Standard:
No
Standards/Approvals:
No
Schmitt Trigger Input:
No
Maximum Supply Voltage:
5.25V
Minimum Supply Voltage:
4.75V
Number of Inputs per Gate:
4
Maximum Operating Temperature:
70°C
Minimum Operating Temperature:
0°C
Maximum Low Level Output Current:
8mA
Maximum High Level Output Current:
-0.4mA
Maximum Propagation Delay Time @ CL:
5ns
