74AHC Family, Diodes Inc
The 74AHC are an advanced high-speed series of CMOS devices from Diodes Inc. Suitable for general purpose, the logic ICs are compatible with a wide variety of applications. The Diodes Inc logic range also boasts mixed voltage environment capabilities and low power consumption. Various types available within the 74AHC range such as buffers, counters & shift registers, decoders & demultiplexers, standard logic gates and hex inverters.
Supply Voltage Range: 2.0V to 5.5V
Outputs Sink or Source 8mA at VCC: 4.5V
ESD Protection Exceeds JESD 22 - 200V Machine Model (A115-A) - 2000V Human Body Model (A114-A) - Exceeds 1000V Charged Device Model (C101C)
Latch-Up Exceeds 250mA per JESD 78, Class II
Supply Voltage Range: 2.0V to 5.5V
Outputs Sink or Source 8mA at VCC: 4.5V
ESD Protection Exceeds JESD 22 - 200V Machine Model (A115-A) - 2000V Human Body Model (A114-A) - Exceeds 1000V Charged Device Model (C101C)
Latch-Up Exceeds 250mA per JESD 78, Class II

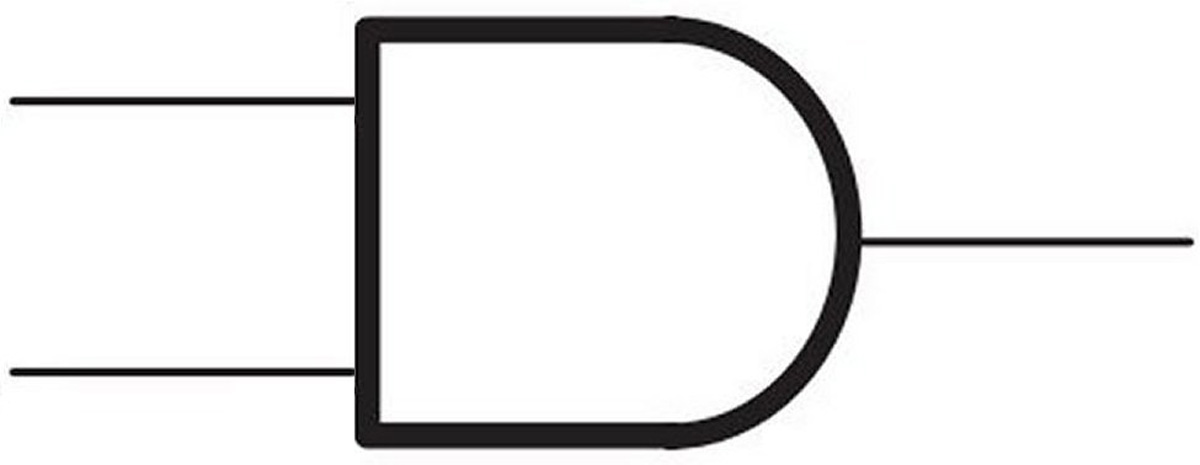

74AHC08S14-13, Quad 2-Input AND Schmitt Trigger Logic Gate, 14-Pin SOIC
Manufacturer:
DiodesZetex
Manufacturer Part No:
74AHC08S14-13
Enrgtech Part No:
ET14004746
Warranty:
Manufacturer
£ 0.25
Checking for live stock
Logic Function:
AND
Mounting Type:
Surface Mount
Number of Elements:
4
Number of Inputs per Gate:
2
Schmitt Trigger Input:
Yes
Package Type:
SOIC
Pin Count:
14
Logic Family:
AHC
Input Type:
Schmitt Trigger
Maximum Operating Supply Voltage:
5.5 V
Maximum High Level Output Current:
-4mA
Maximum Propagation Delay Time @ Maximum CL:
14.5 ns @ 50 pF
