74HC Family, DiodesZetex
The 74HC family by DiodesZetex is made up of high-speed logic devices that use CMOS circuitry. It is a series of general purpose logics ICs with low power consumption. A variety of types are available including standard logic gates, hex inverters, buffers, decoders & demultiplexers, Schmitt trigger inverters, counters & shift registers.
Supply Voltage Range: 2 V to 6 V
Sinks or Sources 4 mA at VCC: 4.5 V
CMOS Low Power Consumption
ESD Protection Exceeds JESD 22 - 200V Machine Model (A115-A)- 2000V Human Body Model (A114-A) - Exceeds 1000V Charged Device Model (C101C)
Supply Voltage Range: 2 V to 6 V
Sinks or Sources 4 mA at VCC: 4.5 V
CMOS Low Power Consumption
ESD Protection Exceeds JESD 22 - 200V Machine Model (A115-A)- 2000V Human Body Model (A114-A) - Exceeds 1000V Charged Device Model (C101C)

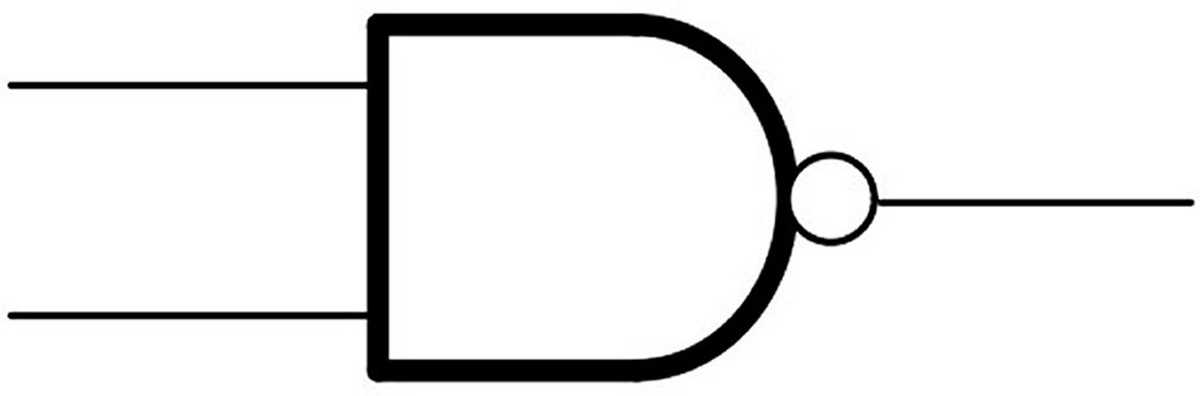

74HC00T14-13, Quad 2-Input NAND Schmitt Trigger Logic Gate, 14-Pin TSSOP
Manufacturer:
DiodesZetex
Manufacturer Part No:
74HC00T14-13
Enrgtech Part No:
ET14108306
Warranty:
Manufacturer
£ 0.25
Checking for live stock
Logic Function:
NAND
Mounting Type:
Surface Mount
Number of Elements:
4
Number of Inputs per Gate:
2
Schmitt Trigger Input:
Yes
Package Type:
TSSOP
Pin Count:
14
Logic Family:
HC
Input Type:
Schmitt Trigger
Maximum Operating Supply Voltage:
6 V
Maximum High Level Output Current:
-4mA
Maximum Propagation Delay Time @ Maximum CL:
135 ns @ 50 pF
