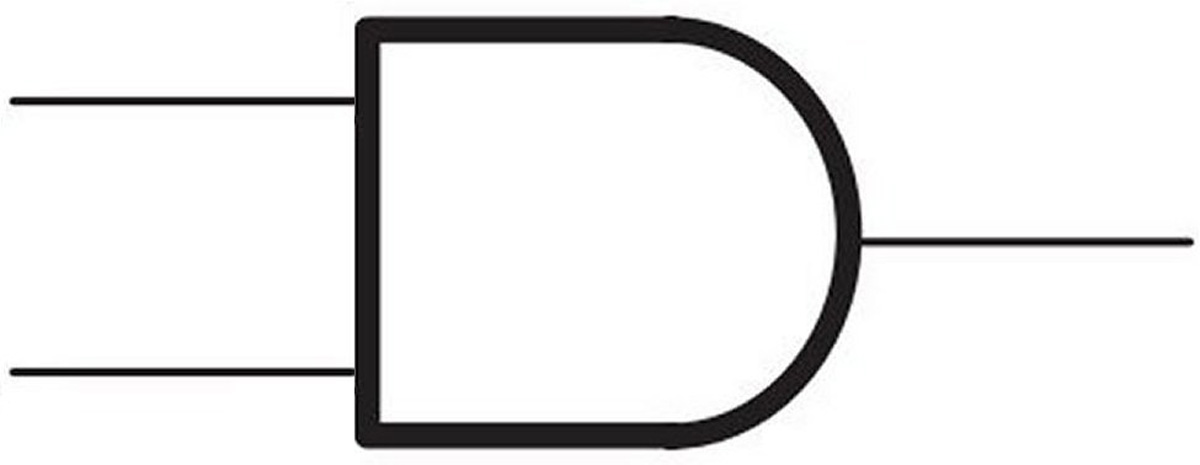

TC74HC08AP(F), Quad 2-Input AND Logic Gate, 14-Pin PDIP

Logic Function:

AND

Mounting Type:

Through Hole

Number of Elements:

4

Number of Inputs per Gate:

2

Schmitt Trigger Input:

No

Package Type:

PDIP

Pin Count:

14

Logic Family:

HC

Maximum Operating Supply Voltage:

6 V

Maximum High Level Output Current:

-5.2mA

Maximum Propagation Delay Time @ Maximum CL:

13 ns @ 6 V, 15 ns @ 4.5 V, 75 ns @ 2 V

Minimum Operating Supply Voltage:

2 V

Maximum Low Level Output Current:

5.2mA

Width:

6.4mm

Maximum Operating Temperature:

+85 °C

Length:

19.25mm

Minimum Operating Temperature:

-40 °C

Propagation Delay Test Condition:

50pF

Dimensions:

19.25 x 6.4 x 3.5mm

Height:

3.5mm
