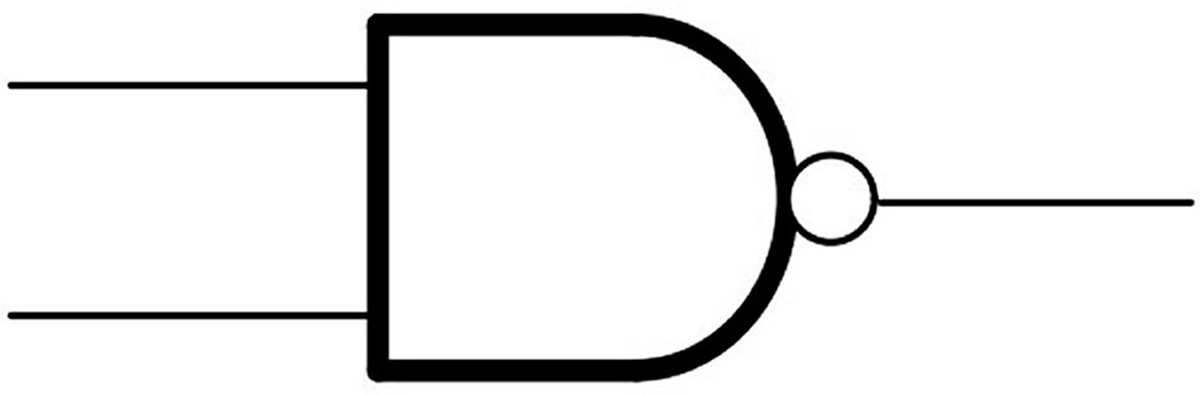

TC74HC132AP(F), Quad 2-Input NAND Schmitt Trigger Logic Gate, 14-Pin PDIP

Logic Function:

NAND

Mounting Type:

Through Hole

Number of Elements:

4

Number of Inputs per Gate:

2

Schmitt Trigger Input:

Yes

Package Type:

PDIP

Pin Count:

14

Logic Family:

HC

Input Type:

Schmitt Trigger

Maximum Operating Supply Voltage:

6 V

Maximum High Level Output Current:

-5.2mA

Maximum Propagation Delay Time @ Maximum CL:

110 ns @ 2 V, 19 ns @ 6 V, 22 ns @ 4.5 V

Minimum Operating Supply Voltage:

2 V

Maximum Low Level Output Current:

5.2mA

Minimum Operating Temperature:

-40 °C

Width:

6.4mm

Length:

19.25mm

Dimensions:

19.25 x 6.4 x 3.5mm

Height:

3.5mm

Propagation Delay Test Condition:

50pF

Maximum Operating Temperature:

+85 °C
