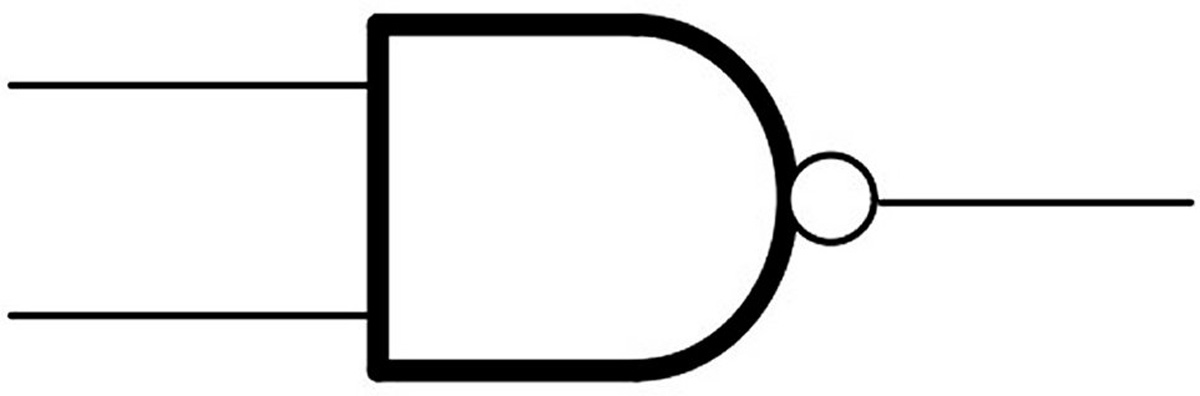

CD4093BF, Quad 2-Input NAND Schmitt Trigger Logic Gate, 14-Pin CDIP

Logic Function:

NAND

Mounting Type:

Through Hole

Number of Elements:

4

Number of Inputs per Gate:

2

Schmitt Trigger Input:

Yes

Package Type:

CDIP

Pin Count:

14

Logic Family:

4000

Input Type:

CMOS

Maximum Operating Supply Voltage:

18 V

Maximum High Level Output Current:

-4.2mA

Maximum Propagation Delay Time @ Maximum CL:

380 ns @ 50 pF

Minimum Operating Supply Voltage:

3 V

Maximum Low Level Output Current:

4.2mA

Dimensions:

19.94 x 7.62 x 3.56mm

Priced to Clear:

Yes

Length:

19.94mm

Output Type:

CMOS

Maximum Operating Temperature:

+125 °C

Minimum Operating Temperature:

-55 °C

Height:

3.56mm

Width:

7.62mm

Propagation Delay Test Condition:

50pF
