74HCT Family, DiodesZetex
The 74HCT are a high-speed series of CMOS devices from DiodesZetex. Suitable for general purpose, the logic ICs are pin compatible with low power Schottky (LSTTL). They also benefit from low power consumption. The variety of types available include standard logic gates, hex inverters, buffers, Schmitt trigger inverters and counters & shift registers.
Supply Voltage Range: 4.5V to 5.5V
Sinks or Sources 4mA at VCC: 4.5V
CMOS Low Power Consumption
Schmitt Trigger Action at All Inputs
ESD Protection Exceeds JESD 22 - 200V Machine Model (A115-A)- 2000V Human Body Model (A114-A) - Exceeds 1000V Charged Device Model (C101C)
Supply Voltage Range: 4.5V to 5.5V
Sinks or Sources 4mA at VCC: 4.5V
CMOS Low Power Consumption
Schmitt Trigger Action at All Inputs
ESD Protection Exceeds JESD 22 - 200V Machine Model (A115-A)- 2000V Human Body Model (A114-A) - Exceeds 1000V Charged Device Model (C101C)

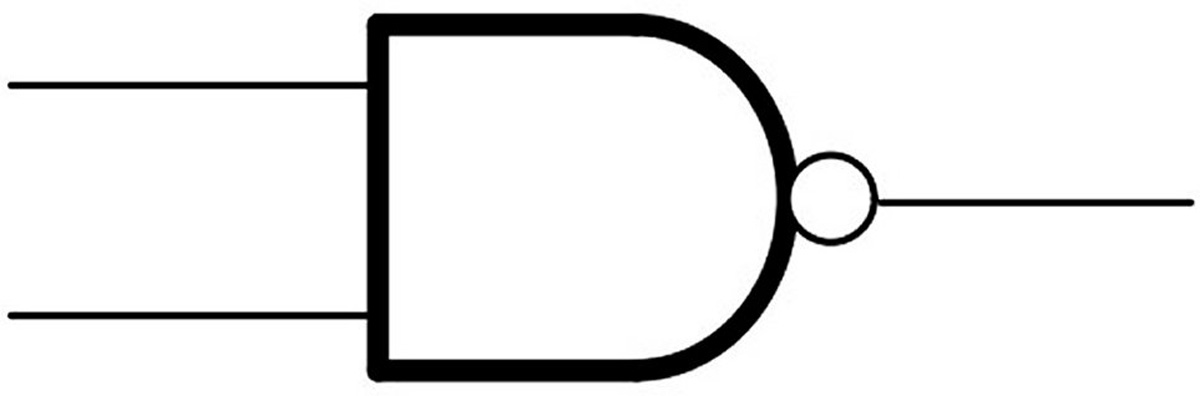

74HCT00T14-13, Quad 2-Input NAND Schmitt Trigger Logic Gate, 14-Pin TSSOP
Manufacturer:
DiodesZetex
Manufacturer Part No:
74HCT00T14-13
Enrgtech Part No:
ET16759343
Warranty:
Manufacturer
£ 0.23
Checking for live stock
Logic Function:
NAND
Mounting Type:
Surface Mount
Number of Elements:
4
Number of Inputs per Gate:
2
Schmitt Trigger Input:
Yes
Package Type:
TSSOP
Pin Count:
14
Logic Family:
HCT
Input Type:
Schmitt Trigger
Maximum Operating Supply Voltage:
5.5 V
Maximum High Level Output Current:
-4mA
Maximum Propagation Delay Time @ Maximum CL:
29 ns @ 50 pF
