Magnetically Controlled Proximity Sensors
PL/PAA series magnetically controlled proximity sensors (rectangular housing).
Reed switch integrated into an insulated housing.
Moulded magnets.
Reed switch integrated into an insulated housing.
Moulded magnets.

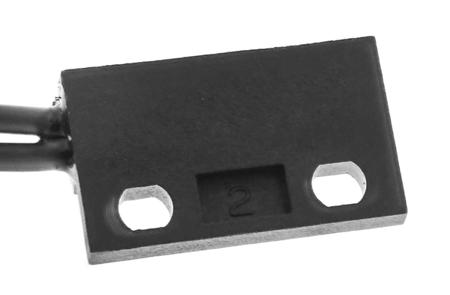

Rectangular Magnetic Proximity Sensor, NO, 48V, 1A, IP67
Manufacturer:
Celduc
Manufacturer Part No:
PAA11202
Enrgtech Part No:
ET13926256
Warranty:
Manufacturer
£ 8.88
Checking for live stock
Switch Shape:
Rectangular
Normal State Configuration:
NO
Terminal Type:
Wire Lead
Maximum Current:
1A
Maximum AC Voltage:
48V
Maximum DC Voltage:
100V
Switching Frequency:
300Hz
Contact Resistance:
≤ 100mΩ
Total Length:
293mm
Length:
23mm
Dimensions:
23 x 14 x 6mm
Maximum Operating Temperature:
+100°C
