Magnetically Controlled Proximity Sensors
PL/PAA series magnetically controlled proximity sensors (rectangular housing).
Reed switch integrated into an insulated housing.
Moulded magnets.
Reed switch integrated into an insulated housing.
Moulded magnets.

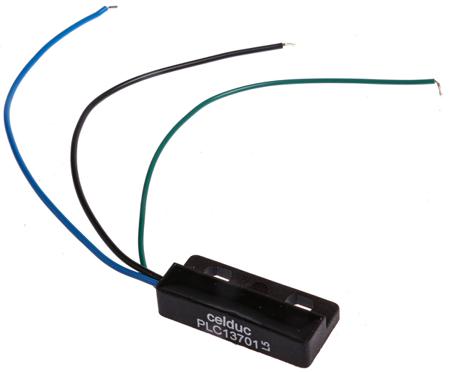

Rectangular Magnetic Proximity Sensor, NO/NC, 48V, 500mA, IP67
Manufacturer:
Celduc
Manufacturer Part No:
PLC13701
Enrgtech Part No:
ET16813281
Warranty:
Manufacturer
£ 17.75
Checking for live stock
Switch Shape:
Rectangular
Normal State Configuration:
NO/NC
Terminal Type:
Wire Lead
Maximum Current:
500mA
Maximum AC Voltage:
48V
Maximum DC Voltage:
100V
Switching Frequency:
150Hz
Contact Resistance:
≤ 150mΩ
Total Length:
132mm
Length:
32mm
Maximum Operating Temperature:
+100°C
Minimum Operating Temperature:
-40°C
