IP68 3-Pole Self Latching Tested and approved to IEC 61984:2001 and IP 68 Rated to 2 bar Collar mechanism allows fast connection or release of the connector The Connector and Internal Screw Terminals can be easily assembled without the need for special tooling Positive keyways to prevent mis-assembly Sealing Caps available to maintain IP68 rating when separated (see, for example, stock number 478-7694 ) Cable entry points offer high cable retention and prevent cable twist during installation Dimensions (mm): L 150, Dia 37 (mated)

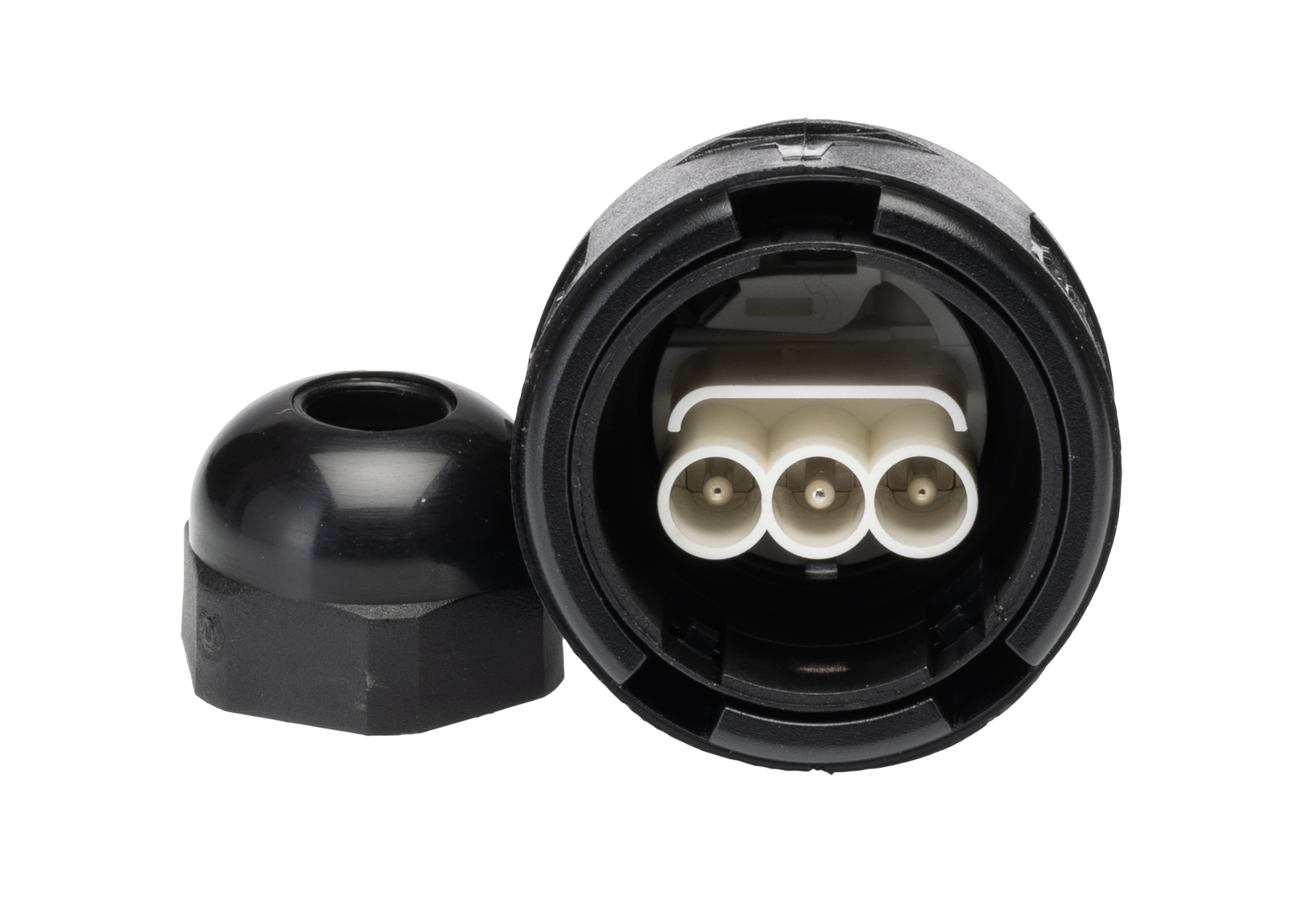

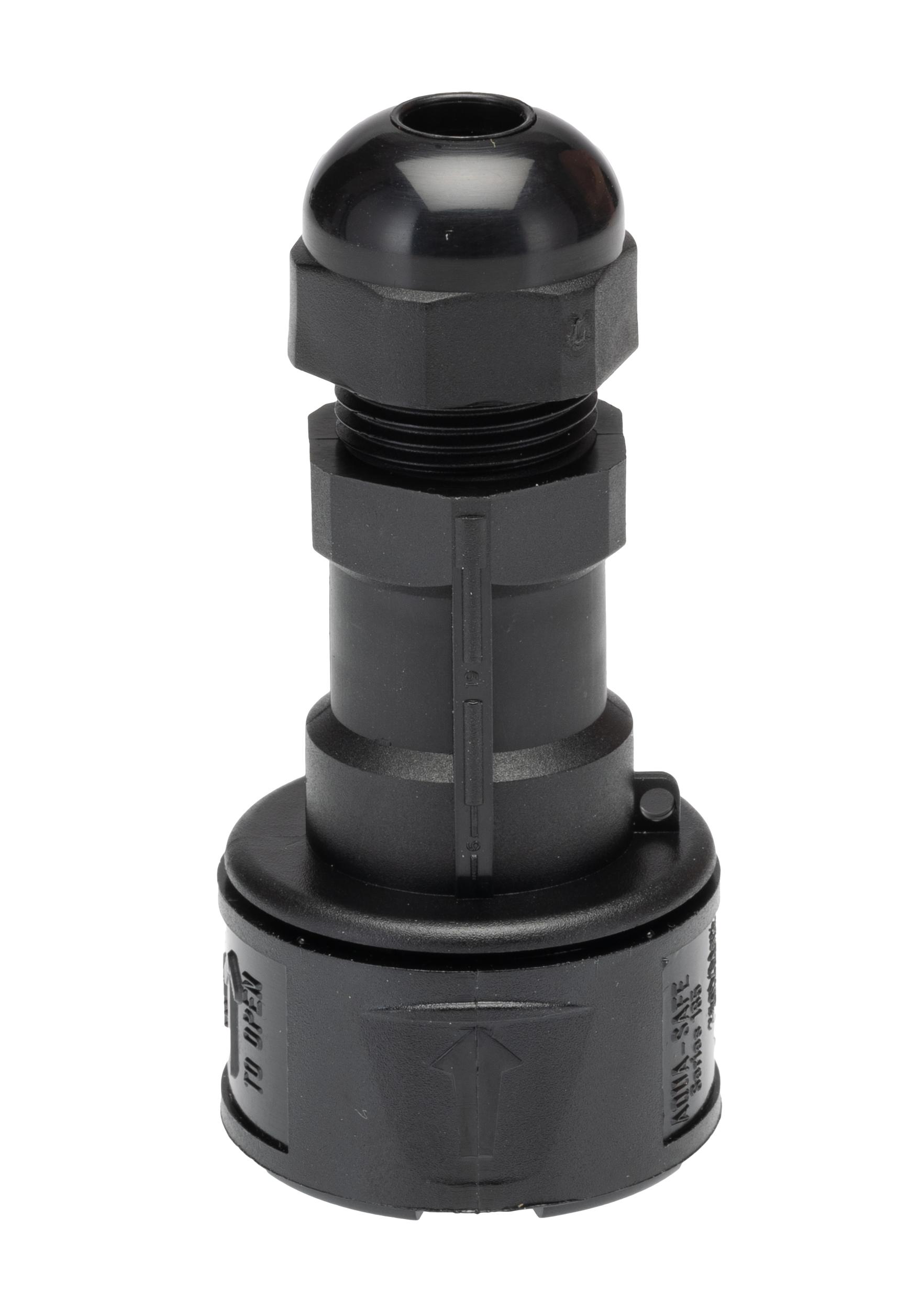

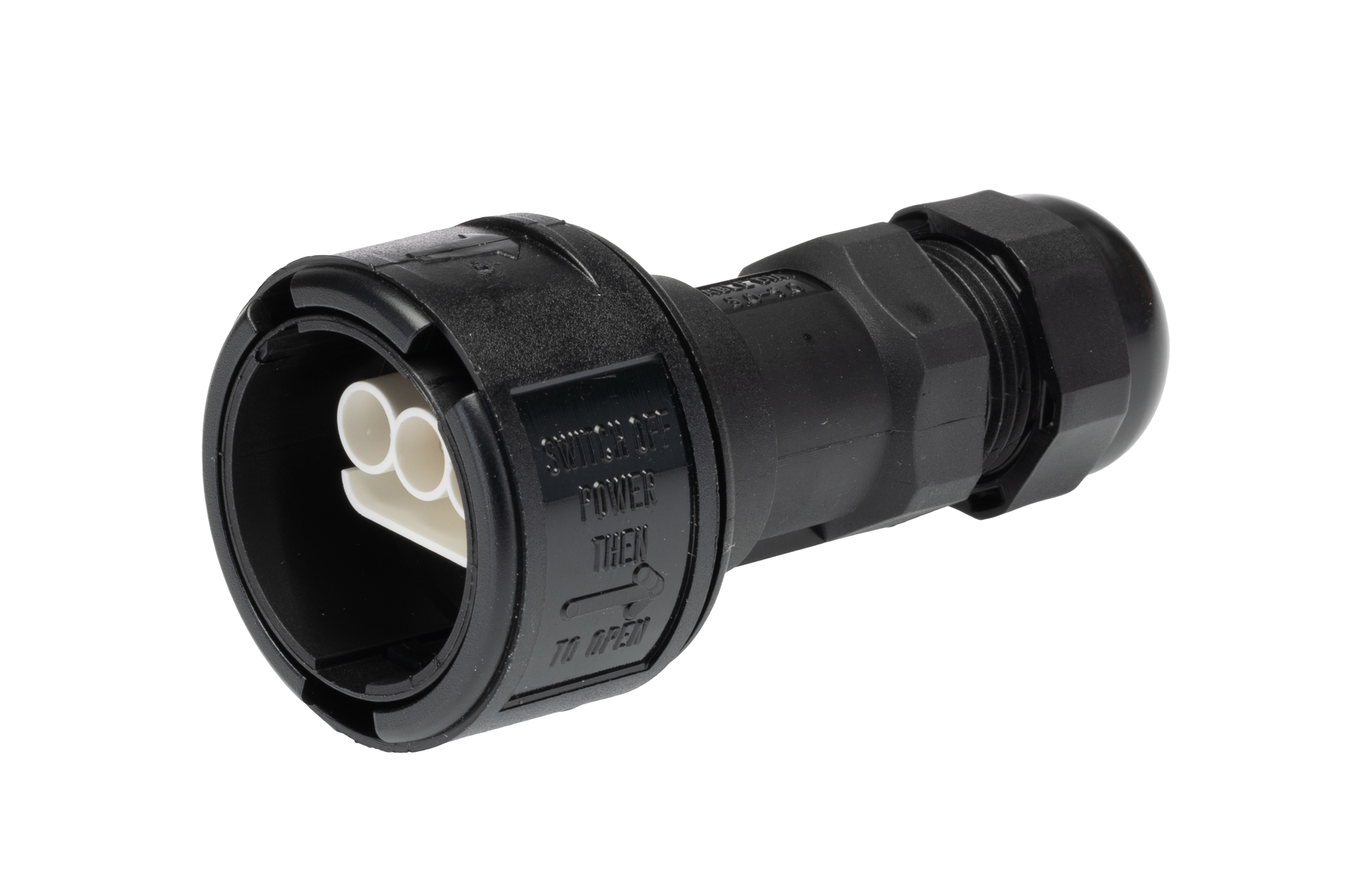

ABB 3 Pole IP68 Rating Cable Mount Male Mains Inline Connector Rated At 16A

Manufacturer:
Manufacturer Part No:
185-1A1011-S0301
Enrgtech Part No:
ET25272487
Warranty:
Manufacturer
£ 8.54
Checking for live stock
Diameter:
37mm
Current Rating:
16A
Minimum Cable Diameter:
5mm
Mounting Type:
Cable Mount
IP Rating:
IP68
Gender:
Male
Voltage Rating:
250 V ac/dc
Pole Format:
3
Cable Diameter:
5 → 9mm
Length:
85mm
Plug/Socket:
Plug
Termination Method:
Screw Down
Maximum Cable Diameter:
9mm
pdf icon
Datasheet - 185-1A1011-S0301(Technical Reference)
