Type D Single Pole 6kA - System pro M Type D characteristic offers short circuit response (but greater than Type C) of 10-13 x normal rated current, making it ideal for circuits with higher inrush currents such as motor control and fluorescent lighting installations in industrial buildings where nuisance tripping might occur if a faster type was used. DIN rail mounting Complies with BS EN 60898 Operating temperature range of -25°C to +55°C Standard 17.5mm width Max. operating voltage: 440Vac, 60Vdc Note The Classic & System pro M product cannot be intermixed and do not share common accessories. System pro M products can only be fitted to new style Protecta distribution boards,see typically stock no. 539-1553. Standards BS EN 60898 ABB System Pro M Single & Double Pole MCB's Note The Classic & System pro M product cannot be intermixed and do not share common accessories. System pro M products can only be fitted to new style Protecta distribution boards,see typically stock no. 539-1553.

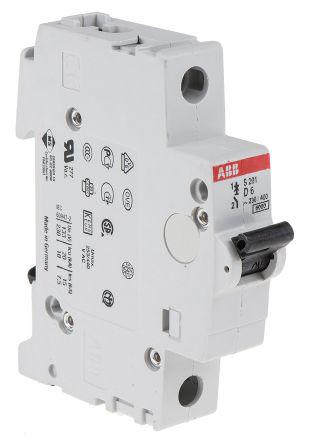

ABB 2CDS251001R0061 System M Pro S200 MCB Mini Circuit Breaker 1P, 6 A, 6 kA, Curve D

Manufacturer:
Manufacturer Part No:
2CDS251001R0061
Enrgtech Part No:
ET13865579
Warranty:
Manufacturer
£ 21.18
Checking for live stock
Current Rating:
6 A
Series:
S200
Range:
System M Pro
Rated DC Voltage:
72V
Depth:
75.8mm
Rated AC Voltage:
253 V
Breaking Capacity:
6 kA
Tripping Characteristics:
Type D
Number of Poles:
1
