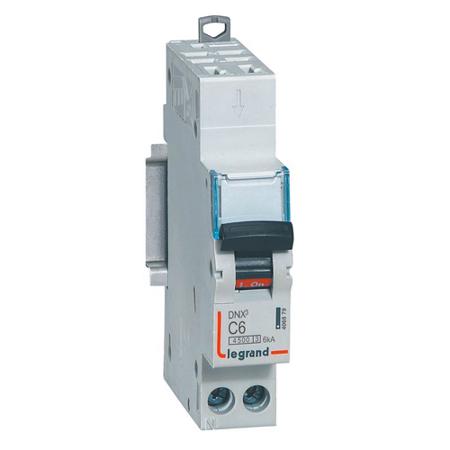

The Legrand DNX³ phase neutral modular circuit breaker with fully visible breaking for control, protection and isolation of electrical circuits. It provides output protection at top inlet by automatic terminals and bottom outlet by screw terminals.
Allows flying tests (voltage presence) to be carried out
Receives DX³ auxiliaries and accessories
IP20 touch-protected terminals, wired device
Receives DX³ auxiliaries and accessories
IP20 touch-protected terminals, wired device
DNX3 Circuit Breaker, 1+N, 6A Curve C, 230V AC, 6 kA Breaking Capacity
Manufacturer:
Legrand
Manufacturer Part No:
406879
Enrgtech Part No:
ET26330114
Warranty:
Manufacturer
£ 41.98
Checking for live stock
Number of Poles:
1+N
Current Rating:
6A
Tripping Characteristics:
Type C
Rated AC Voltage:
230V
Breaking Capacity at Maximum Voltage Rating:
6 kA
Range:
DNX3
Circuit Breaker Type:
MCB
3D Model:
https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=2661315&DisplayLogo=False
