Galvanised Steel
Galvanised perforated sheet
Can be painted after degreasing
Selvedged border configuration
-5mm/+10 mm on width and length
Dimensions (mm)

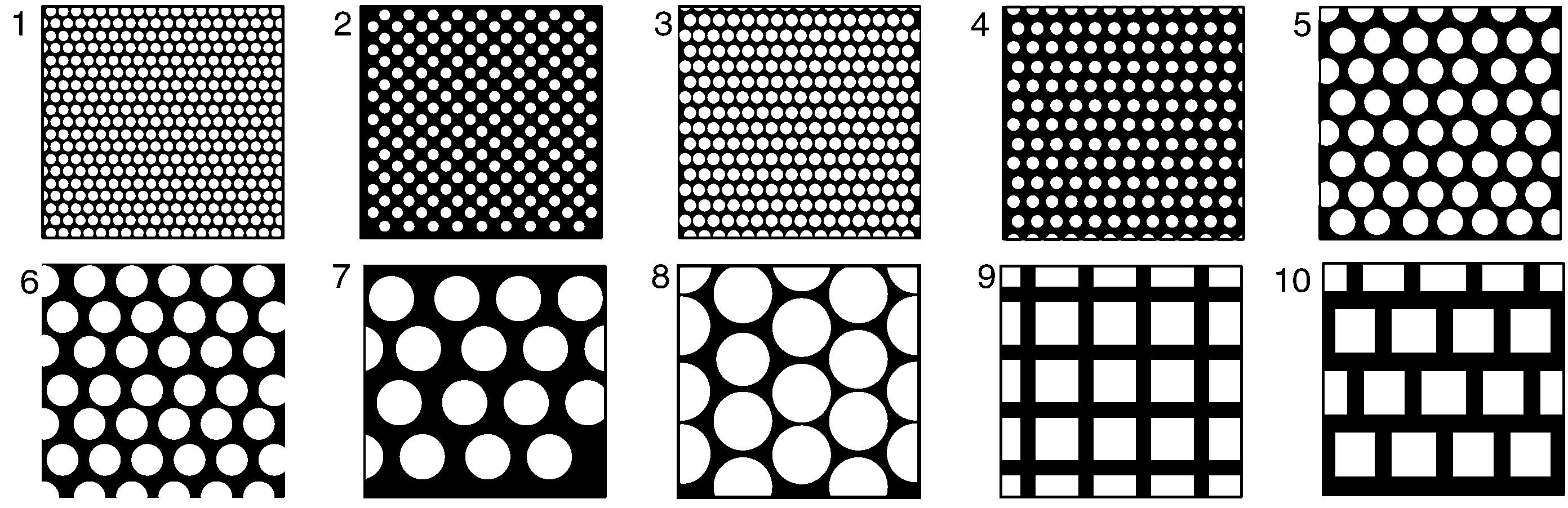

Pattern
Hole(mm)
Open Area
Pitch I (mm)
Pitch II (mm)
Hole Configeration
1
1.2 ø
42%
1.7
3.2
60°
2
1.5 ø
22%
4
4
45°
3
1.7 ø
45%
2.4
4.1
60°
4
2.0 ø
47%
2.8
4.8
60°
5
3.0 ø
33%
5
8.7
60°
6a
3.0 ø
51%
4
6.9
60°
6
4.8 ø
50%
6.5
11.2
60°
7
6.4 ø
43%
9.2
16
60°
8
8.0 ø
68%
9.2
16
60°
9
6.0 x 6.0
62%
7.6
7.6
Square
10
6.0 x 6.0
52%
9.1
7.6
Staggered
11
4.7 x 4.7
35%
8
8
Square
12
2.4 x 12.7
34%
4.8
15.1
Rect
13
6.0 A/F
79%
6.76
11.63
Hex
14
10.0 x 10.0
59%
13
13
Square
15
1.0 ø
46%
1.4
2.4
60°

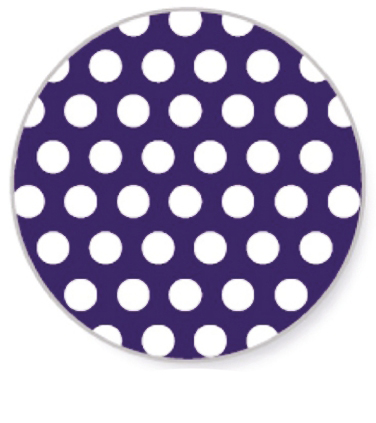

Magnetic Perforated Steel Sheet, 3mm Hole, 500mm x 500mm x 0.7mm
£ 29.79
Checking for live stock
Hole Layout:
60°
Form:
Perforated
Pattern Number:
5
Material:
Galvanised Steel
Open Area Percentage:
33%
Thickness:
0.7mm
Width:
500mm
Length:
500mm
Hole Diameter:
3mm
