Honeywell DM/DP Series Snap-in Panel Mount Switch The DM/DP series has been designed for applications requiring a snap-action switch in either a basic or manual configuration. Instillation has been simplified with the use of quick connect terminals and a snap-in panel mount housing. Various options are available including momentary or alternate actions and single or double-pole. The DM accepts a button for manual operation. The DP has plungers for basic operation.

Potential Applications:
Appliance door lights
Door interlocks
Stop/start switches Features
Attractive, rugged snap-in panel mount design - easy installation
Choice of momentary, alternate push-pull or pull-to-cheat operation
Quick-connect terminals
Expected mechanical life: 1 million operations, 95% survival

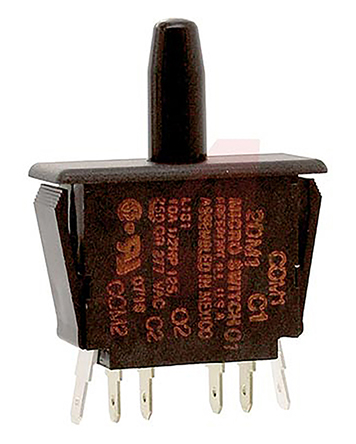

Honeywell Bullet Nose Plunger Micro Switch, Quick Connect Terminal, 10 A @ 277 V ac, DP-CO

Manufacturer:
Manufacturer Part No:
2DM1
Enrgtech Part No:
ET14009686
Warranty:
Manufacturer
Checking for live stock
Actuator Type:
Bullet Nose Plunger
Terminal Type:
Quick Connect
Contact Current Rating:
10 A @ 277 V ac
Contact Configuration:
DP-CO
Operating Force:
6.67 N
Minimum Operating Temperature:
-37°C
Maximum Operating Temperature:
+82°C
Contact Material:
Silver
Case Material:
Polyester
Mechanical Life:
1000000Operations
Release Force:
1.67N
Voltage Rating:
277V ac
Standards Met:
CSA, UL
Operating Temperature Range:
-37 → +82°C
Switch Operation:
Momentary
pdf icon
Snap-in Panel Mount Switch 2DM1 Data Sheet-75bdf740(datasheets)
pdf icon
Datasheet-53d07093(datasheets)
pdf icon
Brochure - Basic, Toggle & Rocker Switches-73589e6a(datasheets)
