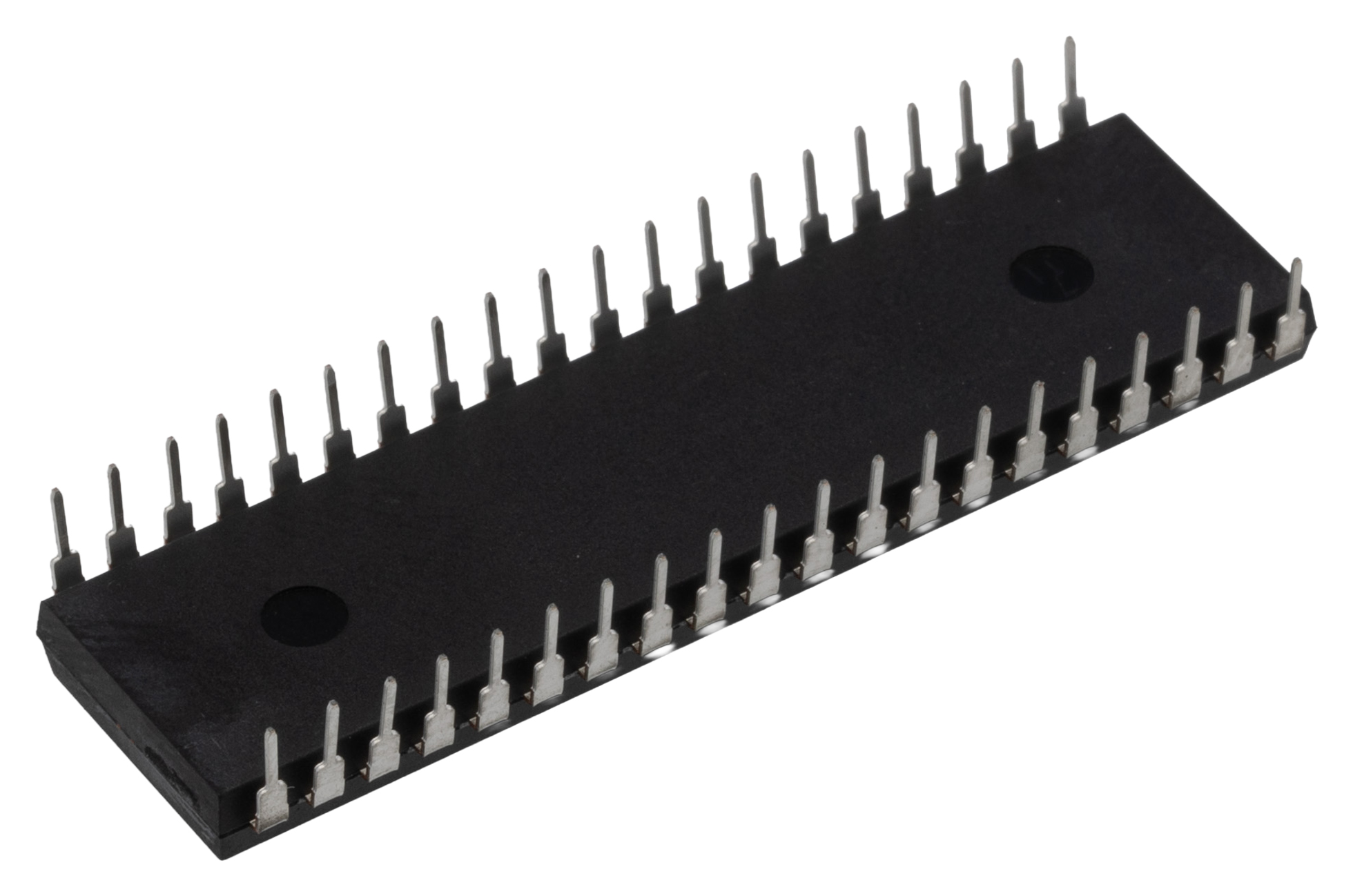

P8X32A-D40, 32bit P8X32A Microcontroller, Propeller, 80MHz, 64 kB ROM, 40-Pin PDIP

Family Name:

Propeller

Package Type:

PDIP

Mounting Type:

Through Hole

Pin Count:

40

Device Core:

P8X32A

Data Bus Width:

32bit

Program Memory Size:

64 kB

Maximum Frequency:

80MHz

RAM Size:

32.768 kB

USB Channels:

1 x Device

Number of SPI Channels:

0

Number of CAN Channels:

0

Typical Operating Supply Voltage:

2.7 → 3.6 V

Number of I2C Channels:

0

Number of UART Channels:

0

Number of USART Channels:

0

Number of LIN Channels:

0

Dimensions:

52.32 x 13.72 x 3.81mm

Length:

52.32mm

Program Memory Type:

ROM

Maximum Operating Temperature:

+125 °C

Minimum Operating Temperature:

-55 °C

Number of PCI Channels:

0

Number of Ethernet Channels:

0

Maximum Number of Ethernet Channels:

0

Height:

3.81mm

Width:

13.72mm

Instruction Set Architecture:

RISC
