STM32F03 Series Microcontrollers, STMicroelectronics STMicroelectronics ARM Cortex-M0-based STM32F0 series microcontroller incudes the entry level ARM Cortex™ M0 32-bit RISC core. The STM32F030 Value line provides high-speed embedded memory with a range of enhanced peripherals and I/Os. There are communication interfaces such as I2C, SPIs, and USARTs, plus 12-bit ADC, 16-bit timers and an advanced-control PWM timer.

ST’s STM32F0 MCUs advanced architecture combined with the STM32 platform allows the design of low power applications which are offered in different package types. The ARM Cortex™-M0 core processor with embedded Flash and SRAM is compatible with all ARM tools and software.

The STM32F030 ARM processor microcontroller (MCU) is suitable for a broad range of applications which include application control and user interface, handheld equipment, A/V receivers, PC peripherals, gaming platforms, consumer appliances, printers, alarm systems and HVACs.
Frequency: 48 MHz CPU
Flash memory: up to 64 Kbytes
SRAM: up to 8 Kbytes
Power supply: 2.4 to 3.6 V
Temperature range: -40 to +85 °C

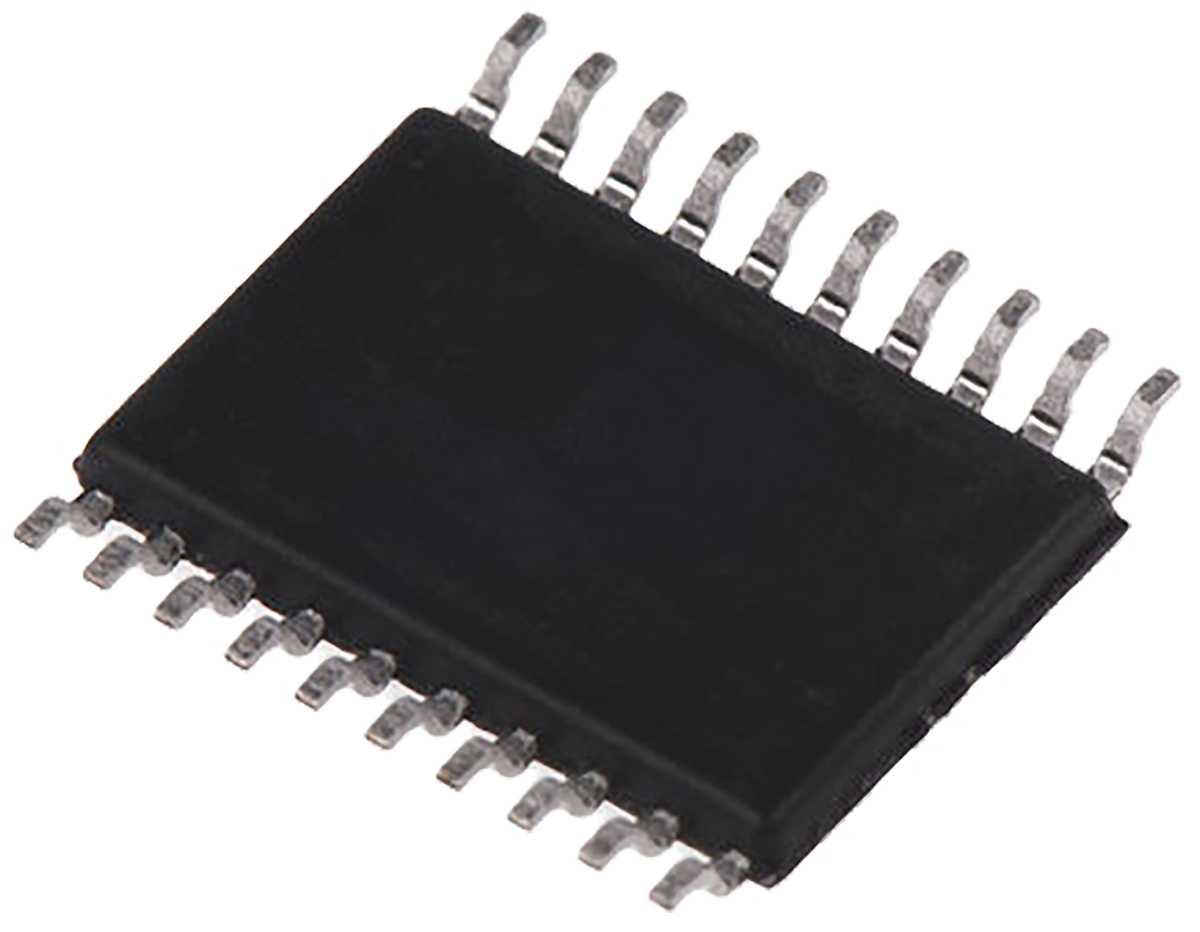

STMicroelectronics , 32bit ARM Cortex M0, STM32F0 Microcontroller, 48MHz, 16 kB Flash, 20-Pin TSSOP

Manufacturer:
Manufacturer Part No:
STM32F030F4P6TR
Enrgtech Part No:
ET11825185
Warranty:
Manufacturer
Checking for live stock
Family Name:
STM32F0
Package Type:
TSSOP
Mounting Type:
Surface Mount
Pin Count:
20
Device Core:
ARM Cortex M0
Data Bus Width:
32bit
Program Memory Size:
16 kB
Maximum Frequency:
48MHz
RAM Size:
4 kB
USB Channels:
0
Number of SPI Channels:
1
Number of USART Channels:
1
Typical Operating Supply Voltage:
2.4 → 3.6 V
Number of CAN Channels:
0
Number of UART Channels:
0
Number of I2C Channels:
1
Number of ADC Units:
1
Number of PCI Channels:
0
Number of Ethernet Channels:
0
Instruction Set Architecture:
RISC
Number of LIN Channels:
0
Height:
1.05mm
ADCs:
11 x 12 bit
Maximum Number of Ethernet Channels:
0
Width:
4.5mm
Minimum Operating Temperature:
-40 °C
Dimensions:
6.6 x 4.5 x 1.05mm
Maximum Operating Temperature:
+85 °C
Length:
6.6mm
Program Memory Type:
Flash
pdf icon
STM32F030x4 STM32F030x6, STM32F030x8, Value-Line ARM-based 32-Bit MCU with 16 to 64KB Flash, Timers, ADC, Communication Interfaces, 2.4-3.6V-03918107(datasheets)
