DPC01/PPC01 Multifunction Monitoring Relay
Carlo Gavazzi DPC01 & PPC01 series of monitoring relays provide the user with a comprehensive variety of monitoring options such as phase sequence, loss & asymmetry along with under & over voltage with separate set point adjustment.
Offers the facility to detect each individual phase is present and have the right sequence
Can ensure all phases are with set parameters
Adjustments can be made separately to setpoints for added customisation
Can detect if phase asymmetry is below user-defined set points
LED indication for relay, alarm & power supply status
Adjustable delays functions between 0.1-30 seconds
Can ensure all phases are with set parameters
Adjustments can be made separately to setpoints for added customisation
Can detect if phase asymmetry is below user-defined set points
LED indication for relay, alarm & power supply status
Adjustable delays functions between 0.1-30 seconds

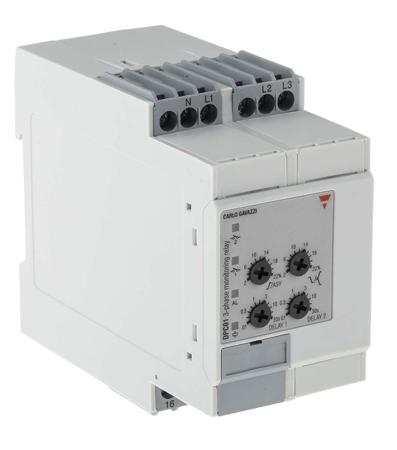

Phase, Voltage Monitoring Relay, 3, 3+N Phase, SPDT, 323 → 550V ac, DIN Rail
Manufacturer:
Carlo Gavazzi
Manufacturer Part No:
DPC01DM48
Enrgtech Part No:
ET13902359
Warranty:
Manufacturer
£ 266.64
Checking for live stock
Monitoring Application:
Phase, Voltage
Electrical Phase:
3, 3+N
Contact Configuration:
SPDT
Voltage Sensing Range:
323 → 550V ac
Voltage Sensitivity:
Overvoltage, Undervoltage
Mounting Type:
DIN Rail
Phase Sensitivity:
Asymmetry, Phase Loss, Phase Sequence, Tolerance
Time Delay:
1 s, 6s
Frequency Sensing Range:
50 → 60Hz
Series:
DPC01
Maximum Frequency Sensed:
60Hz
Operating Temperature Range:
+60°C
