LOCC-BOX Current Control System The intelligent LOCC-BOX system has been designed to offer you a variety of settings and configurations that are suitable for a range of applications. This includes- Power on-effect for switching capacitive loads
Single or multiple fault method with storage of the last condition
Spring terminals for use in strong vibration areas
Narrow construction at only 8.1 mm width
Temperature-independent response time
Contact slot for use of jumper links
Interruption-free supply via screwless contact slide
Manual or remote On/Off
4 different status displays
Optional bus interface

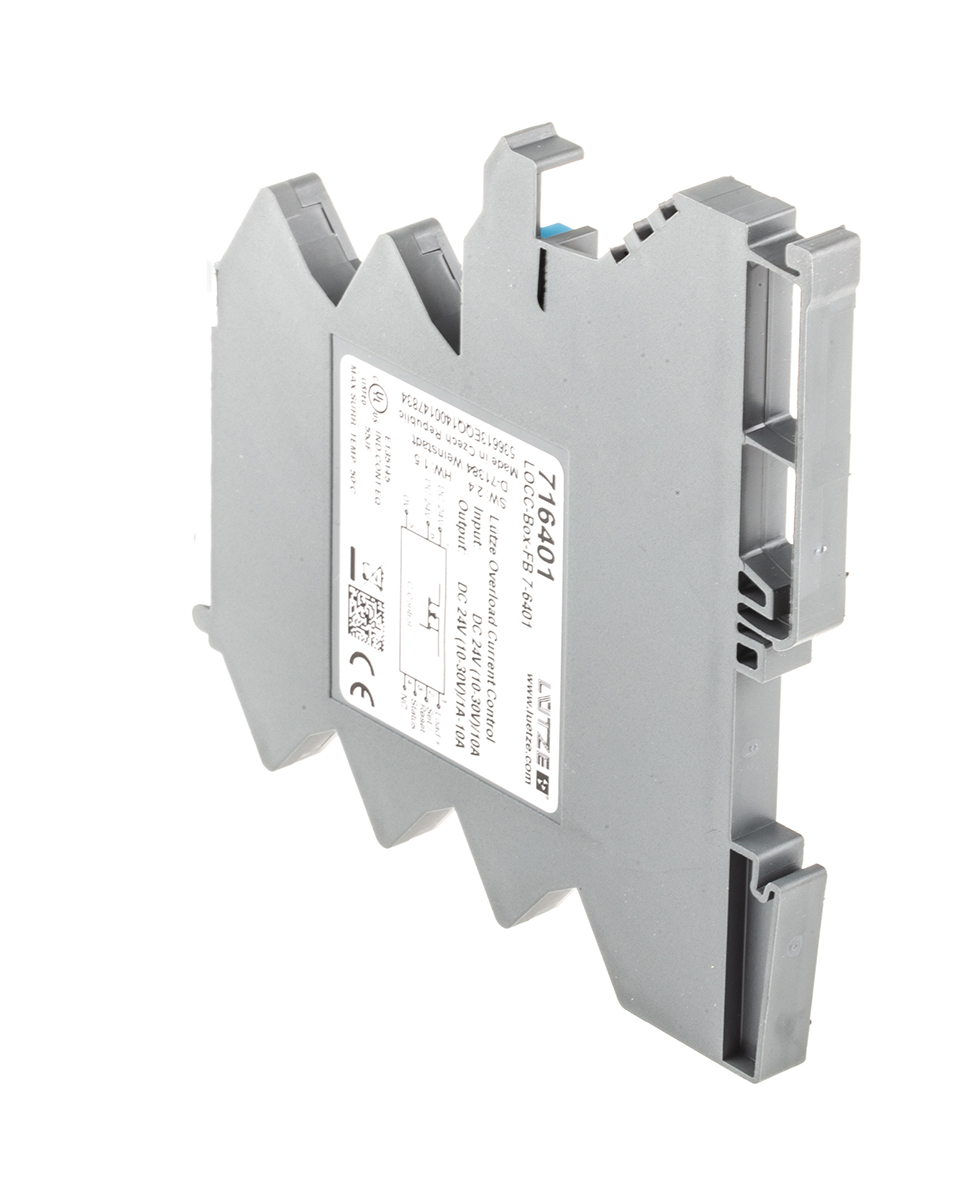

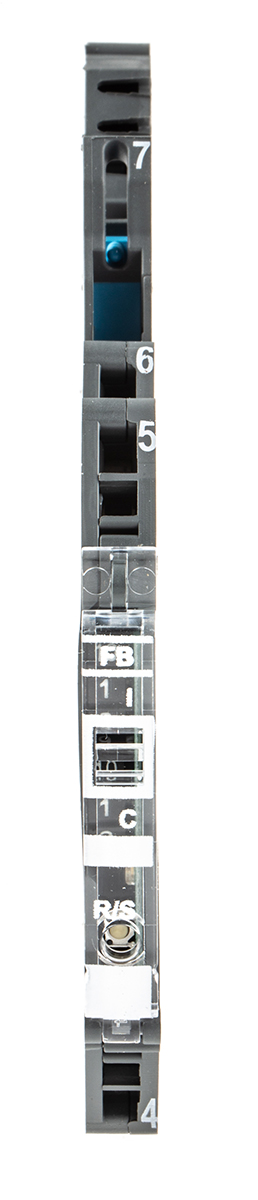

F Lutze Ltd Monitoring Relay, DIN Rail

Manufacturer:
Manufacturer Part No:
716401
Enrgtech Part No:
ET13929203
Warranty:
Manufacturer
£ 58.7500
Checking for live stock
Mounting Type:
DIN Rail
Minimum Current Sensed:
1A
Maximum Current Sensed:
10A
Current Sensitivity:
Overcurrent
Series:
LOCC-BOX
Length:
116mm
Operating Temperature Range:
+50°C
Width:
8.1mm
Dimensions:
116 x 8.1 x 114.5mm
Minimum Operating Temperature:
-25°C
Current Range:
1 → 10A
Terminal Type:
Cage Clamp
Height:
114.5mm
Maximum Operating Temperature:
+50°C
pdf icon
Datasheet-d8d752fb(datasheets)
pdf icon
LOCC Box Overload Protection Data Sheet-c2da7645(datasheets)
